Section 3
ShaftGrip (4) Screws _
V
Shaft
Housing
Minimum 6 inches
(15.24 cm)
D-Handle
Bottom Clamp
®
(4) Nuts _-

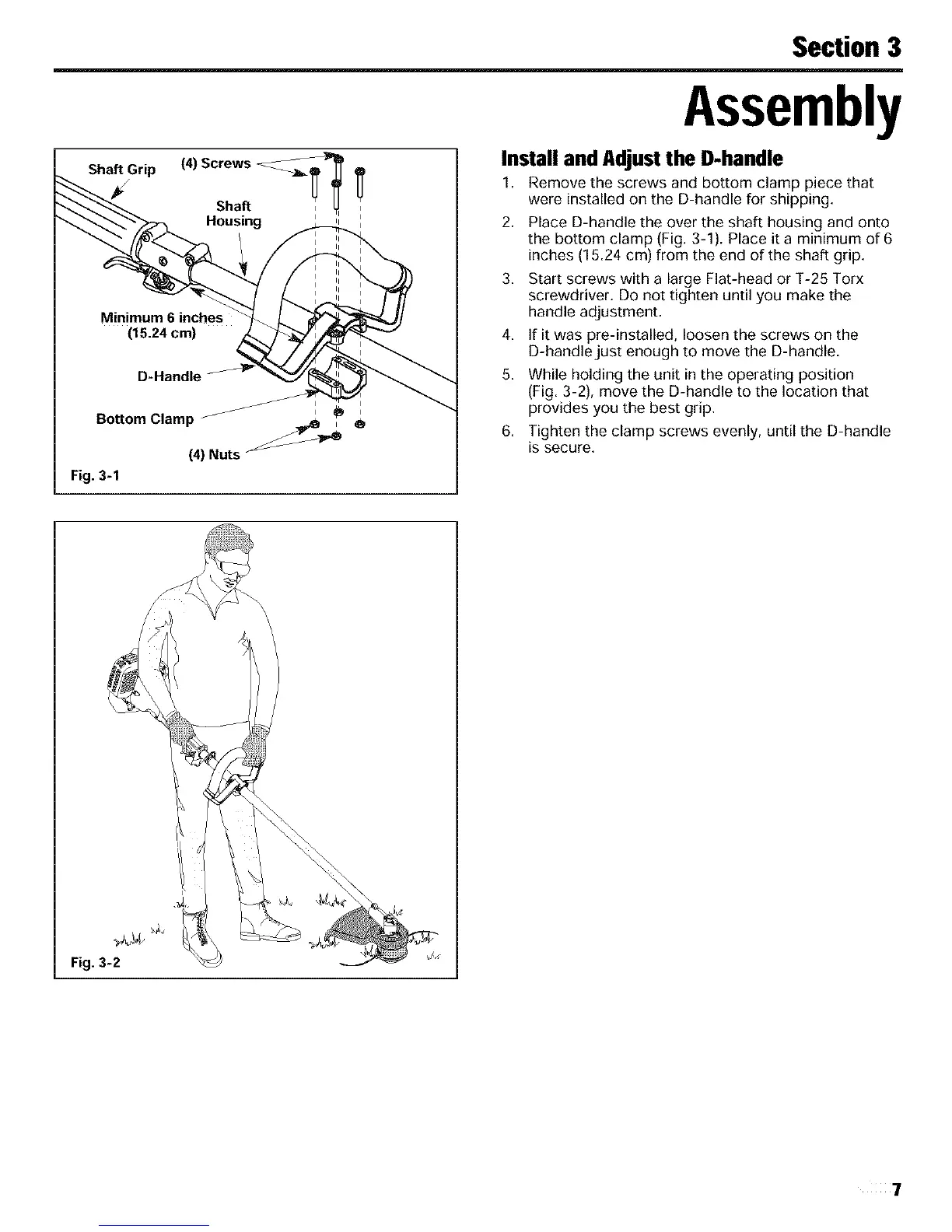

Fig. 3-1
Assembly
Install and Adjust the D-handle
1. Remove the screws and bottom clamp piece that
were installed on the D-handle for shipping.
2. Place D-handle the over the shaft housing and onto
the bottom clamp (Fig. 3-1). Place it a minimum of 6
inches (15.24 cm) from the end of the shaft grip.
3. Start screws with a large Flat-head or T-25 Torx
screwdriver. Do not tighten until you make the
handle adjustment.
4. If it was pre-installed, loosen the screws on the
D-handle just enough to move the D-handle.
5. While holding the unit in the operating position
(Fig. 3-2), move the D-handle to the location that
provides you the best grip.
6. Tighten the clamp screws evenly, until the D-handle
is secure.
Fig. 3-2
¸¸¸¸¸7
