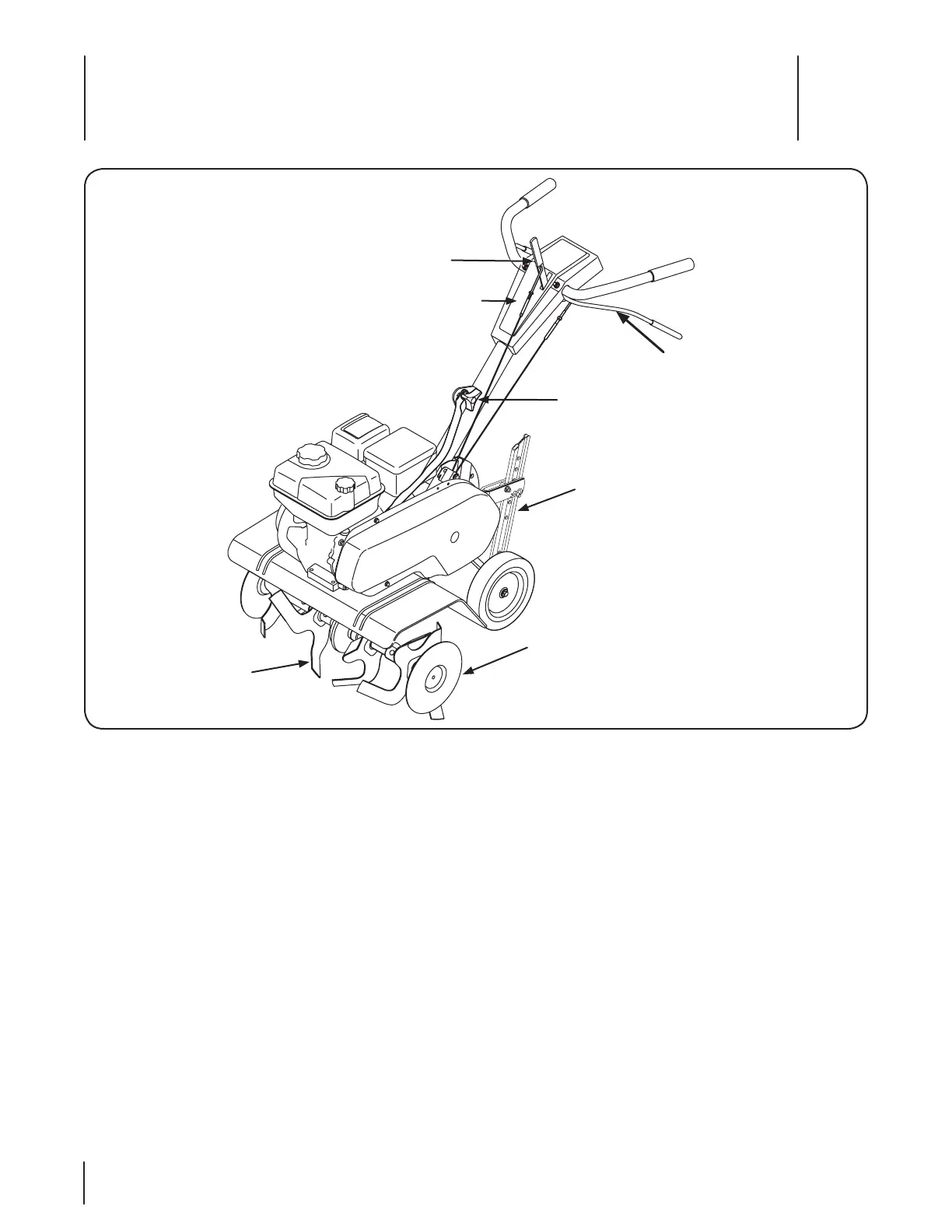

Controls & Features
4
10
Reverse Tine
Engagement Lever
Handle
Tiller Tines
End Cap
Depth Stake
Handle Knob
Forward Tine
Engagement Lever
Engine Controls
See the separate Engine Operator’s Manual for information and
functions of the engine controls.
Forward Tine Engagement Lever
The forward tine control lever is located beneath the upper
section of the handle. Squeezing the lever against the handle
engages the tine drive. Release the lever to stop the tines.
Reverse Tine Engagement Lever
The reverse tine control lever is located on top of the upper section
of the handle. Pulling the lever toward operator engages the tines in
reverse. Release the lever to stop the tines.
NOTE: Never engage both the forward and reverse tine drives at
the same time. Engaging both forward and reverse tine drives
at the same time could damage the belt drives and cause the
engine to stall.
Depth Stake
The depth stake controls the tilling depth.
Tines & End Caps
Tilling tines and end caps are used to cultivate, furrow and prepare
your garden for seeding. End caps are used to avoid tilled soil from
overflowing onto unwanted areas.
Handle Knob
The handle height may be adjusted. Loosen the knob to change
the position. Tighten hardware when complete.
To Next Page
