Assembly & Set-Up
3
7
Assembly
References to the right and left side of tiller are determined from
behind the equipment in the operating position.
Handle
1. Identify the forward clutch cable and reverse clutch cables.

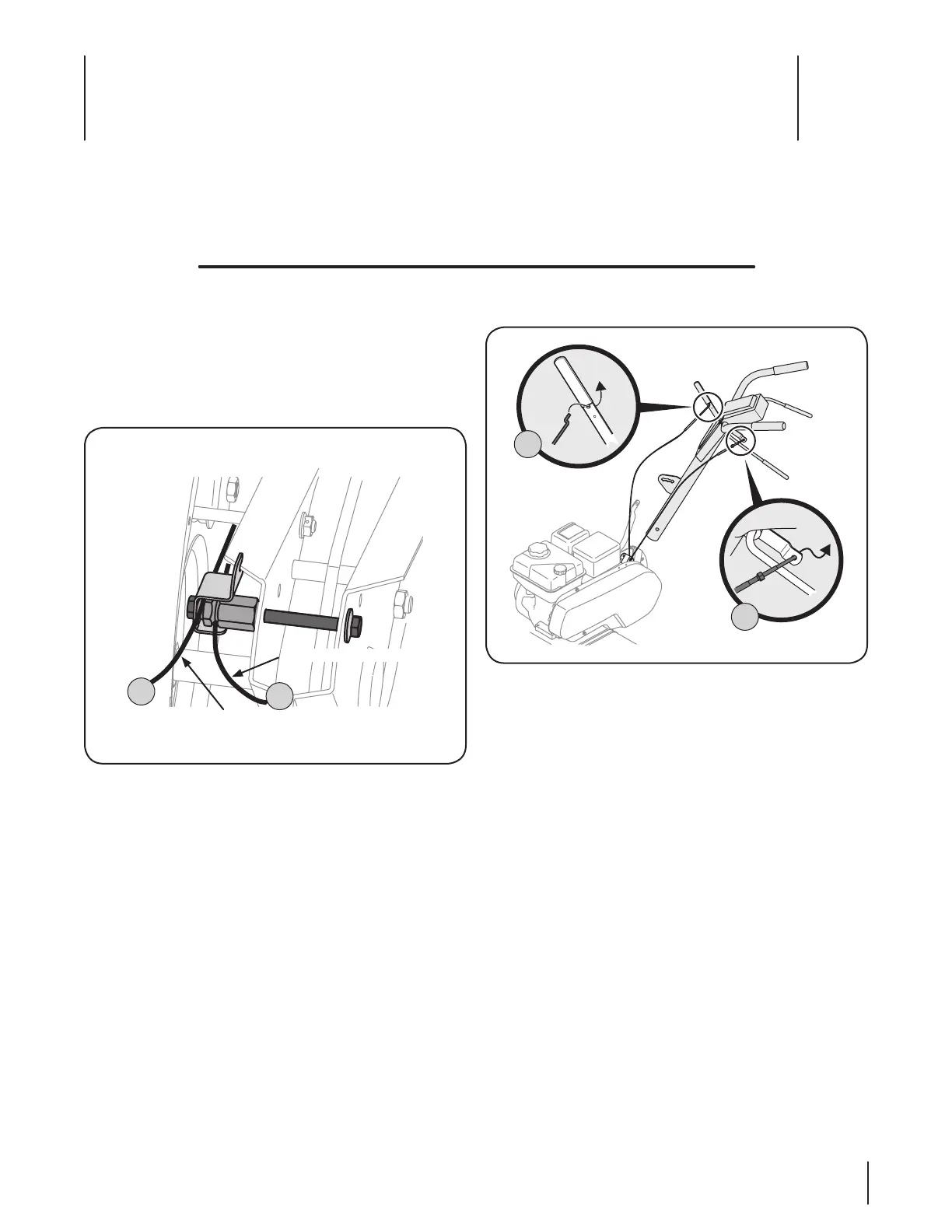

Figure 3-1.
A
B
Forward Clutch Cable
Reverse Clutch Cable
Figure 3-1
NOTE: Be sure not to kink cables while attaching.
2. Hook the “Z” end of the forward clutch cable (A) into the
forward tine engagement lever Figure 3-2.
B
A
Figure 3-2
3. Hook the “Z” end of the reverse clutch cable (B) into the
reverse tine engagement lever Figure 3-2.
Contents of Carton
• One Tiller • One Handlebar Assembly • One Depth Gage Assembly
• One Operator’s Manual • One Engine Operator’s Manual

Cub Cadet FT24 R Specifications

General

Brand	Cub Cadet
Model	FT24 R
Category	Tiller
Language	English
