Cub Cadet LTX1050/KW - Kohler SV725-3021 Oil Pan;Lubrication

34

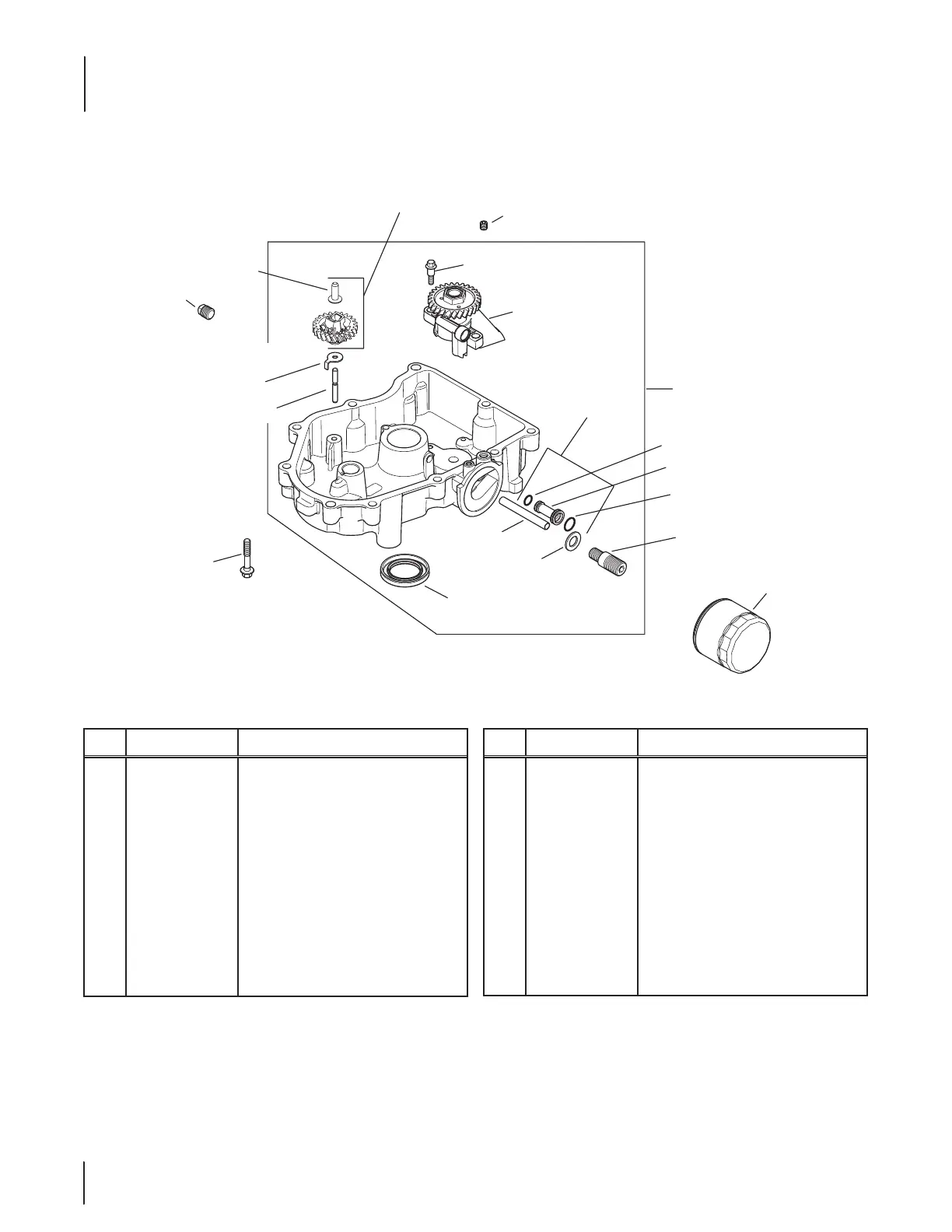

Kohler SV725-3021 Oil Pan/Lubrication
Ref. Part Number Description
1 KH-24-086 -17-S Flange Screw, M8 x 1.25 x 45
2 KH-25-032-06-S Oil Seal, 2.38 x 1.45
3 KH-25-139 -57-S Square Head Pipe Plug, ⁄
4 KH-12-144- 02 Governor Gear Shaft
5 KH-12-380-01 Governor Regulating Pin
6 KH-24-153-01 Oil Pick-Up O-Ring
7 KH-24-448-02-S Locking Tab
8 KH-12-050-01-S Oil Filter
9 KH-32-123- 01-S Oil Feed Tube (Filter to Pan)
10 KH-32-123-09 -S Oil Feed Tube Assembly
Ref. Part Number Description
11 KH-32-136-05-S Oil Filter Nipple
12 KH-32-468-02-S Flat Washer
13 KH-32-123- 06-S Oil Feed Tube
14 KH-32-153-05-S O-Ring
15 KH-32-086-01-S Screw, M6 x 6.5
16 KH-25-139 - 60-S Pipe Plug, ⁄
NS KH-32-199-14-S Oil Pan Assembly
NS KH-32-310-02-S Governor Gear Kit
NS KH-32-393-16-S Oil Pump Assembly
1
8
3
15
19
2
9
12
13
14
11
6
17
16
10
18
5
7
4
