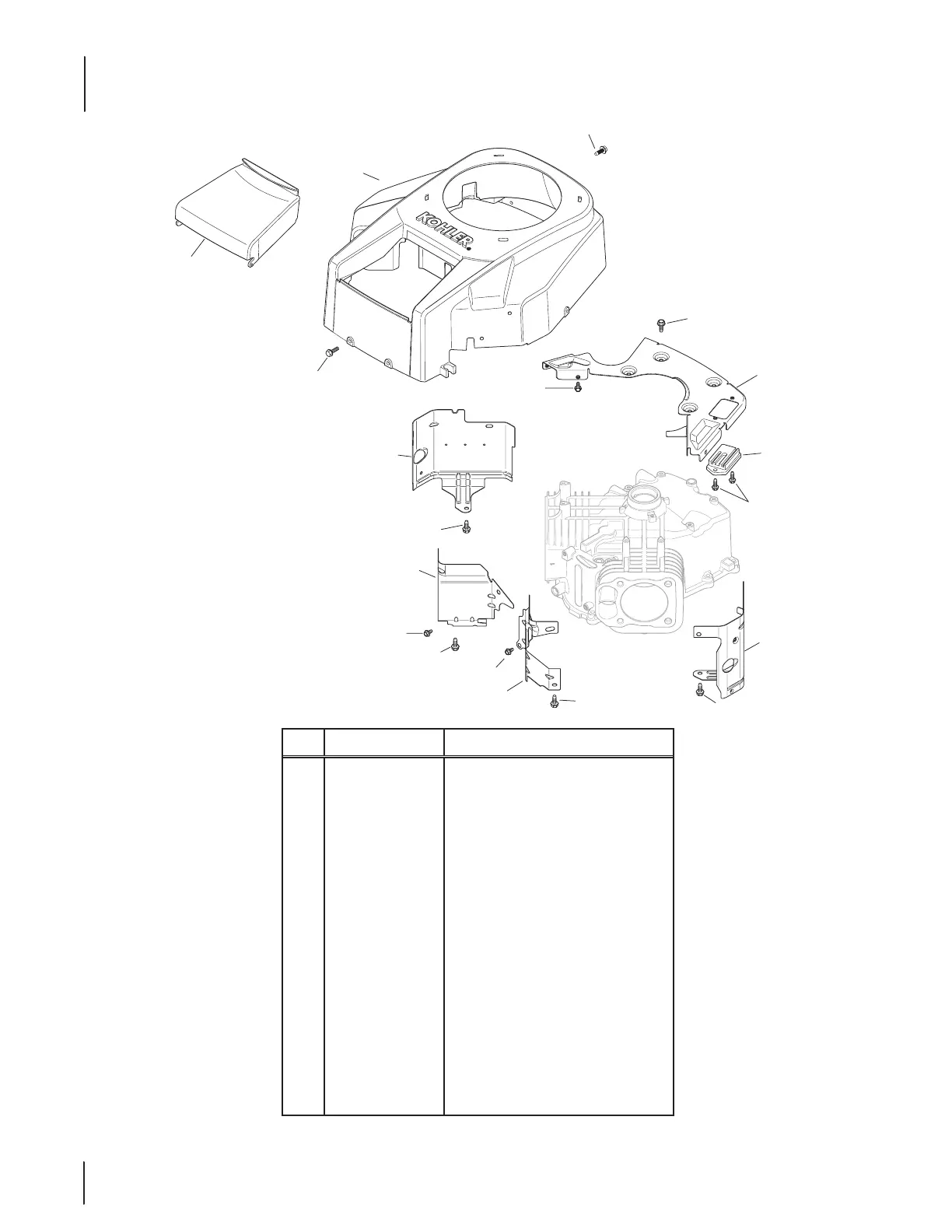

Kohler SV725-3021 Blower Housing & Baffles
11
2
1
3
6
4
9
5
4
13
7
4
3
10
8
8
12
3
13
Ref. Part Number Description
1 KH-32-027-03-S
Blower Housing Kit (Fixed Guard)
(Inc. KH-41-037-10-S)
2 KH-32-096-08-S Air Cleaner Cover
3 KH-M-545016-S Flange Screw, M5 x .8 x 16
4 KH-M-645016-S Flange Screw, M6 x 1.0 x 16
5 KH-32-146-05-S Backing Plate Kit
6 KH-32-063-12-S Cylinder Barrel Bae, #2 Side
7 KH-24-063-94-S Valley Bae, #2 Cylinder
8 KH-M-0545010 Flange Screw, M5 x .8 x 10
9 KH-24-063-93-S Valley Bae, #1 Cylinder
10 KH-32-063-10-S Cylinder Barrel Bae, #1 Side
11 KH-24-086-12 Tap Screw, M6 x 1.7 x 18
12 KH-41-403-10-S Regulator/Rectier
13 KH-25- 086-158-S Screw, M6 x 1.0 x 10
NS KH-41-037-10-S Service Nameplate
