Cub Cadet SLT1554 Parts Manual

11

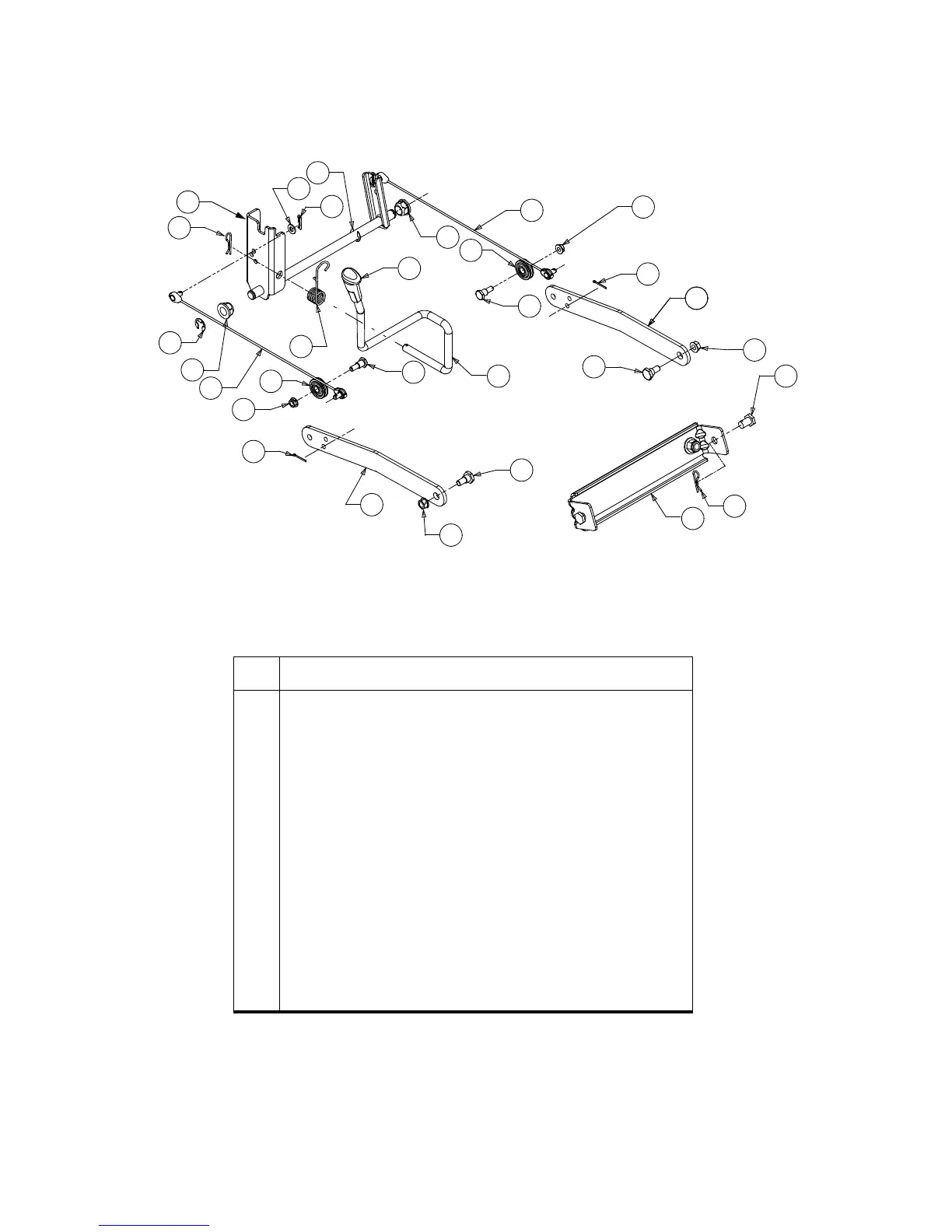

LIFT ASSEMBLY
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 683-04118 Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis,.50 Dia x.78 Lg 2
3 783-0720A Bracket, Deck 1
4 712-04065 Nut, Nylon Lock, 3/8-16 2
5 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
6 783-0678A Arm, Lift 2
7 714-0104 Pin, Cotter,.072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9 714-04023 Pin, Click,.092 x 1.64 Lg 2
10 716-0106A E-ring,.625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
13 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
14 738-0380 Shoulder Screw,.50 x.27 Lg, 3/8-16 2
15 741-0225
Bearing, Hex Flange 2
16 746-0968 Cable, Lift, 16.16 Lg 2
17 747-04155 Handle, Lift 1
18 756-1154 Pulley, Roller 2
5
8
4
4
8
5
9
1
7
16
15
18
11
13
6
17
13
14
10
12
18
16
15
10
6
14
2
9
B
B
A
A
3
14
