Cub Cadet SLT1554 Parts Manual

18
23
24
10
9
11
17
5
8
16
2
12
2
4
6
3
18
2
14
21
22
3
19
15
2
20
13
7
2
2
2
1

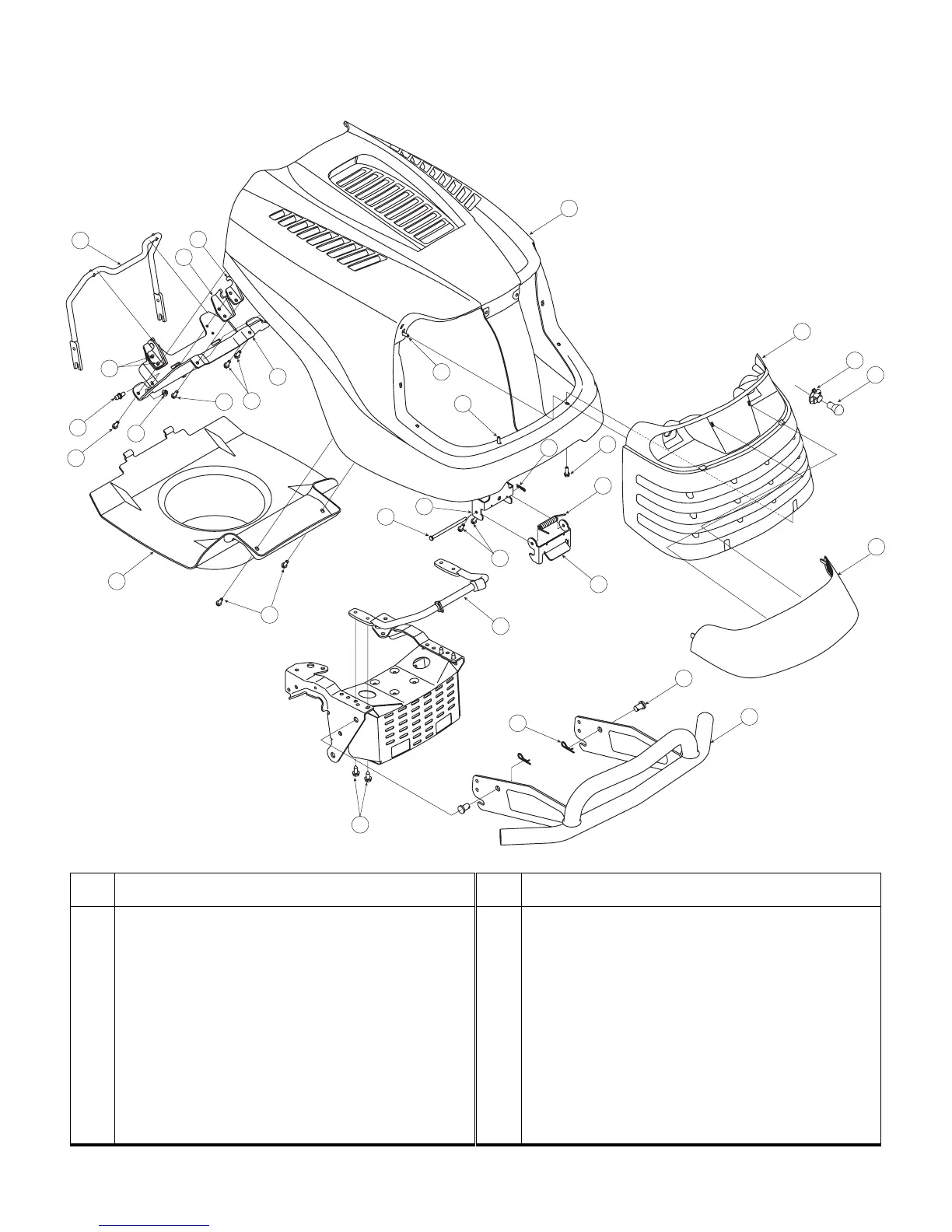

HOOD & GRILLE
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 710-0726 Screw, 5/16-12 x.750 4
2 710-0895 Screw, 1/4-15 x.750 12
3 710-1276 Screw, Self Tapp, 1/4-20 x.750 4
4 710-3170 Screw, Ball, 5/16-18 x.56 2
5 711-0332 Pin, Clevis,.50 Dia. x.78 Lg. 2
6 712-3004A Nut, Flange Lock, 5/16-18 2
7 714-0104 Pin, Cotter,.072 Dia. x 1.13 Lg. 1
8 714-0145 Pin, Click,.092 x 1.64 Lg. 2
9 731-05053 Hood 1
10 731-05103 Grill 1
11 731-05111 Lens 1
12 731-05129 Hood Plenum 1
13 732-04281 Latch Spring 1
14 747-04354 Hood Pivot Rod 1
15 747-04368 Hood Latch Rod 1
16 747-1323A Rod,.250 Dia. x 4.55 Lg. 1
17 749-04207 Bumper 1
18 783-04662 Hood Hinge Bracket 1
19 783-04714 Latch Plate 1
20 783-04717 Latch Pivot Bracket 1
21 783-04724 Upper Pivot Bracket 2
22 783-04725 Hood Pivot Bracket 2
23 725-0963 Miniature Lamp, 12V 2
24 725-1649 Lamp Socket 2
— 629-04142 Headlight Harness 1
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
