Cub Cadet SLT1554 Parts Manual

14

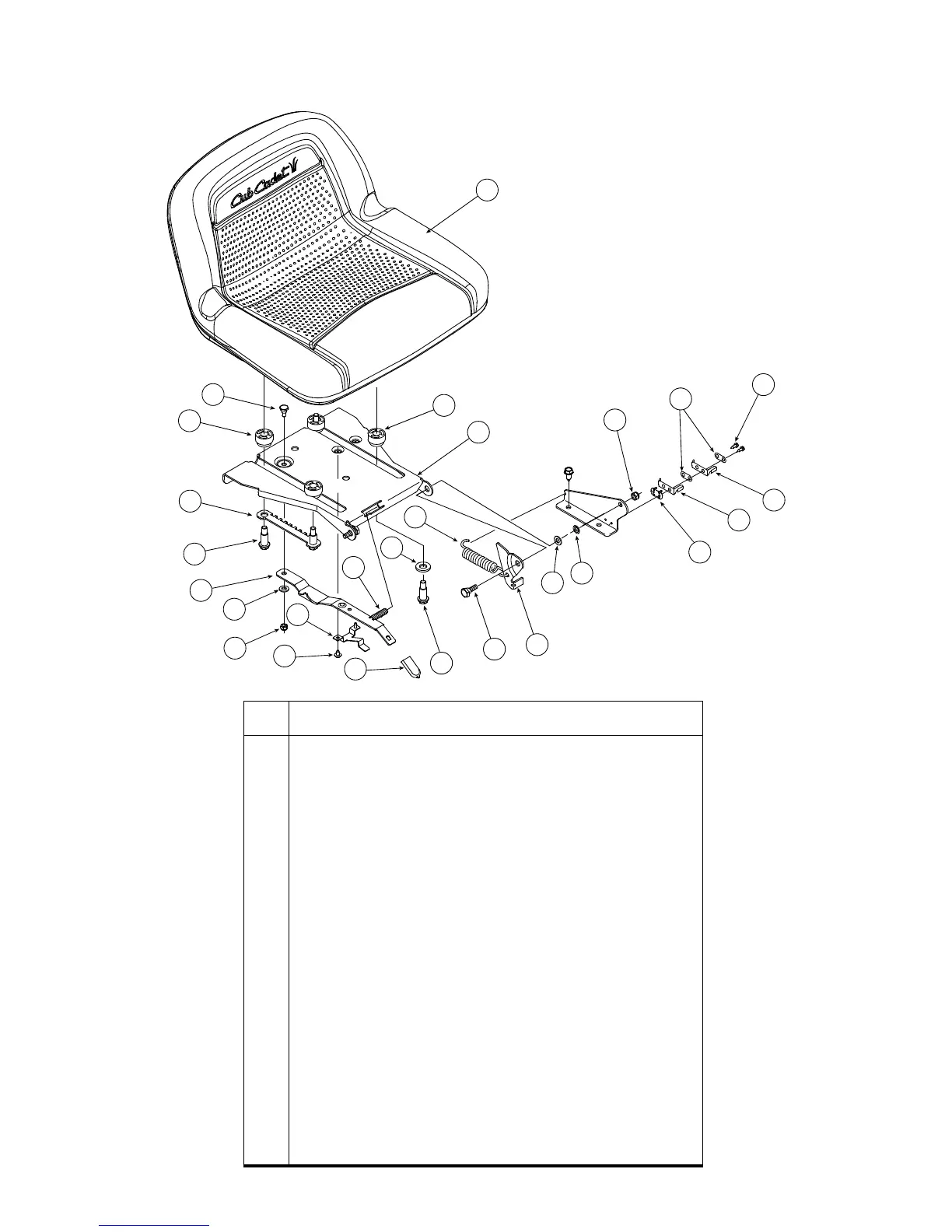

ADJUSTABLE SEAT
REF.
NO.
PART
NUMBER DESCRIPTION QTY.
1 783-0739A Lever, Seat, Adjustment 1
2 710-1268 Screw, #10-16, 0.375 2
3 712-04063 Nut, Nylon Lock, 5/16-18, Gr5 2
4 712-3027 Nut, Nylon Lock, 1/4-20 1
5 720-0433 Grip, Seat, Adjustment (Yellow) 1
6 726-0201 Nut, Speed,.3125 ID 2
7 731-04074 Spacer, Seat, Adjustment 4
8 732-0499 Spring, Compression.41 OD x 1.50 1
9 732-1184 Spring, Extension,.80 Dia x 4.6 Lg. 1
10 783-0738B Seat Pivot Bracket 1
11 757-04035 Seat 1
12 783-0753 Selector, Seat, Adjustment 1
13 736-0275 Washer, Flat,.344 x.688 x.065 3
14 736-3019 Washer, Flat,.531 x 1.062 x.134 2
15 738-0137A Screw, Shoulder,.340 x.285, 1/4-20 1
16 738-0296 Shoulder, Screw.437 x.286 Lg 2
17 738-0966 Screw, Shoulder,.50 x.925, 3/8-16 4
18 783-0209C Bracket, Seat Lift 1
19 783-0611 Stop, Seat, Adjustment 1
20 710-0227 Screw, #8-18 x.50 2
21 726-0279 Plate, Insulator 2
22 725-1303 Spring Switch, Outer 1
23 725-1439 Spring Switch, Inner 1
24 726-0278 Plate, Insulator Boss 1
22
23
24
6
13
18
17
9
14
8
2
3
4
13
1
17
12
7
7
10
11
15
21
20
16
19
5
