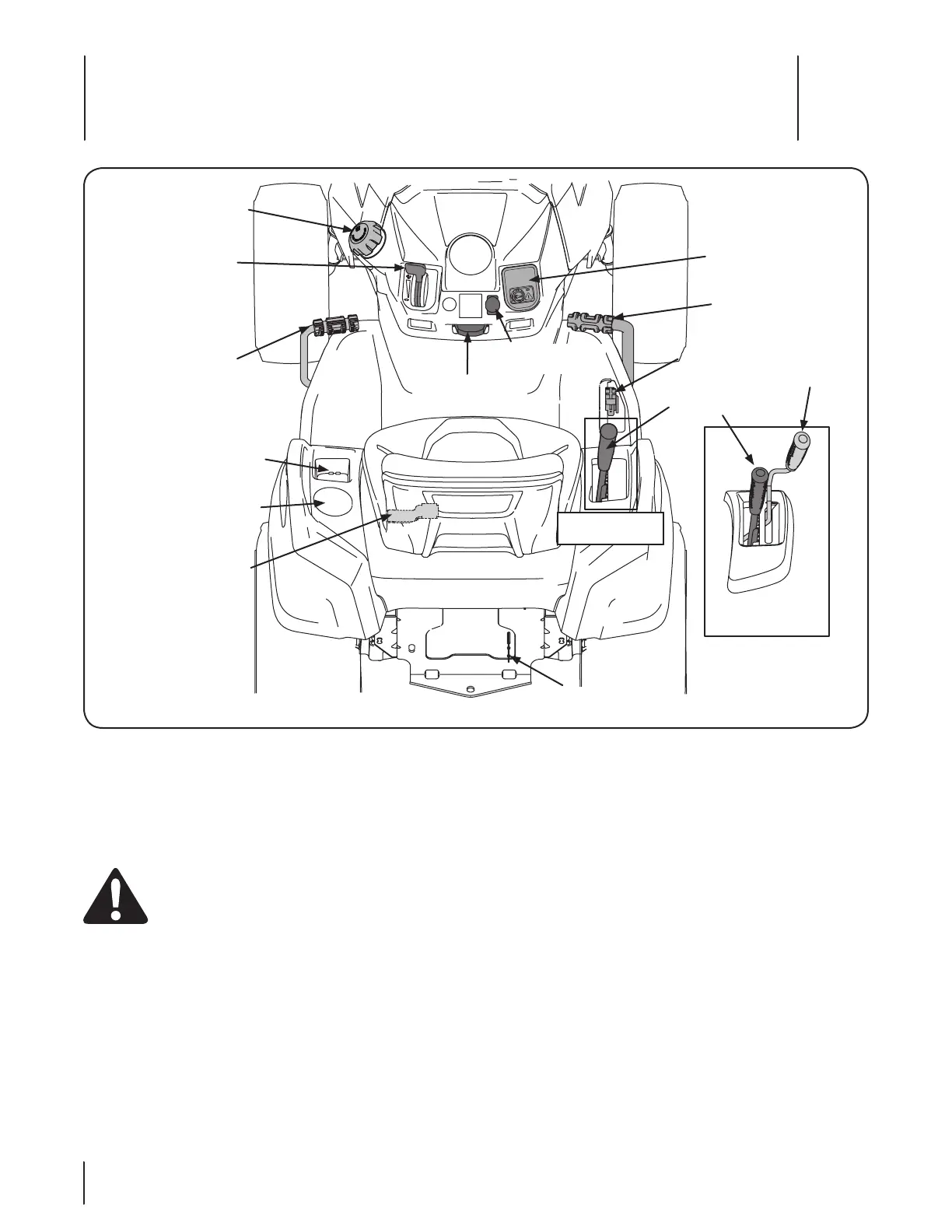

Controls & Features
4
14
Fuel Tank Cap
Throttle
Control Lever
Brake Pedal
Storage Tray
Cup Holder
Seat Adjustment Lever
Transmission
Bypass Rod
Deck Lift Lever
PTO Switch
(If Equipped)
Reverse Drive Pedal
Forward Drive Pedal
Park Brake/Cruise
Control Lever
EFI Ignition Module/
Service Minder &
Hour Meter
Manual PTO
(If Equipped)
PTO Handle
Electric PTO
(If Equipped)
NOTE: This Operator’s Manual covers several models. Tractor
features may vary by model. Not all features in this manual are
applicable to all tractor models and the tractor depicted may
differ from yours.
NOTE: References to LEFT, RIGHT, FRONT, and REAR indicate that
position on the tractor when facing forward while seated in the
operator’s seat.
WARNING! Read and follow all safety rules and
instructions in this manual, including the entire
Operation section, before attempting to operate this
machine. Failure to comply with all safety rules and
instructions may result in personal injury.
Forward Drive Pedal
The forward drive pedal is located on the right side of the machine,
along the running board. Press the forward drive pedal forward to
cause the tractor to travel forward. Ground speed is also controlled
with the forward drive pedal. The further forward the pedal is
pivoted, the faster the tractor will travel. The pedal will return to its
original/neutral position when it’s not pressed.
Reverse Drive Pedal
The reverse drive pedal is located on the right side of the tractor
along the running board. Ground speed is also controlled with
the reverse drive pedal. The further downward the pedal is
pivoted, the faster the tractor will travel. The pedal will return to
its original/neutral position when it’s not pressed.
Brake Pedal
The brake pedal is located on the left side of the tractor, along
the running board. The brake pedal can be used for stopping the
tractor or setting the parking brake.
NOTE: The brake pedal must be fully depressed to activate
the safety interlock switch when starting the tractor.
Seat Adjustment Lever
The seat adjustment lever is located below the left of the seat.
The lever allows for adjustment forward or backward of the
operator’s seat. Refer to the Assembly & Set-Up section for
instructions on adjusting the seat position.
