13
OPERATION
A
C
B
D
F
F
G
H
I
J

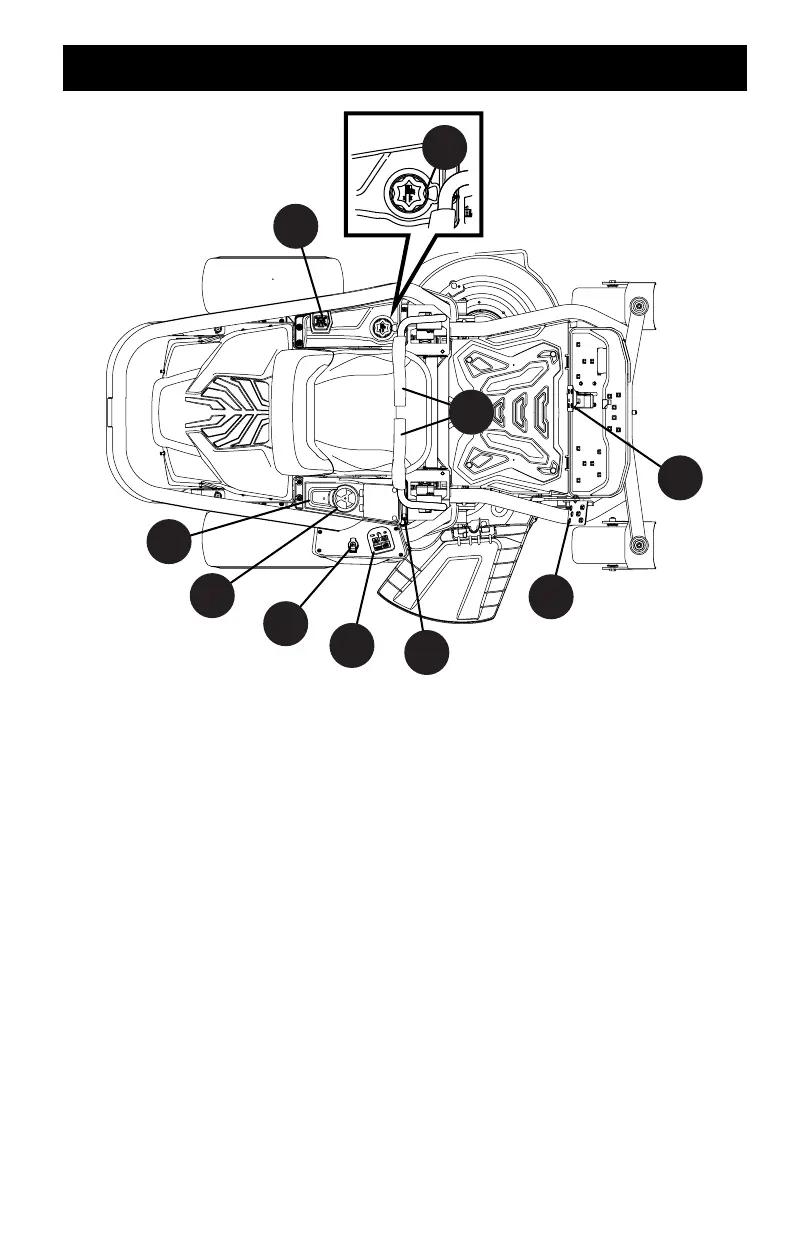

Figure 14
A. LAPBAR DRIVE CONTROL LEVERS
The RH (Right Hand) and LH (Left Hand) lapbar drive control
levers are located on each side of the operator’s seat. The hinged
levers pivot outward to permit the operator to sit in the seat,
or dismount. To start the tractor, the lapbar drive control levers
must be fully out and in park position.
Each drive control lever controls the respective motor.
Consequently, these levers control all of the tractors movement.
Driving and steering using these control levers is quite different
from a conventional tractor and will take practice to master.
Refer to Practice Operation section for further instructions.
B. DECK HEIGHT INDEX KNOB
Each rotation represents a ⁄” (6.35 mm) change in deck height.
Positions range from 1” (2.5 cm) to 4-½” (11.4 cm) at the highest
point.
C. DECK LIFT PEDAL IF EQUIPPED
The deck lift pedal is located on the front, right corner of the
platform. The pedal is used in conjunction with the deck lift knob
(if equipped) to raise and lower the mowing deck. Push forward
on the deck lift pedal, rotate the deck lift knob to the desired
height and release the deck lift pedal.
