Cuenod NC29 GX207/8A - Burner Description

11/2009 - Art. Nr. 4200 1018 3800A 3
Overview

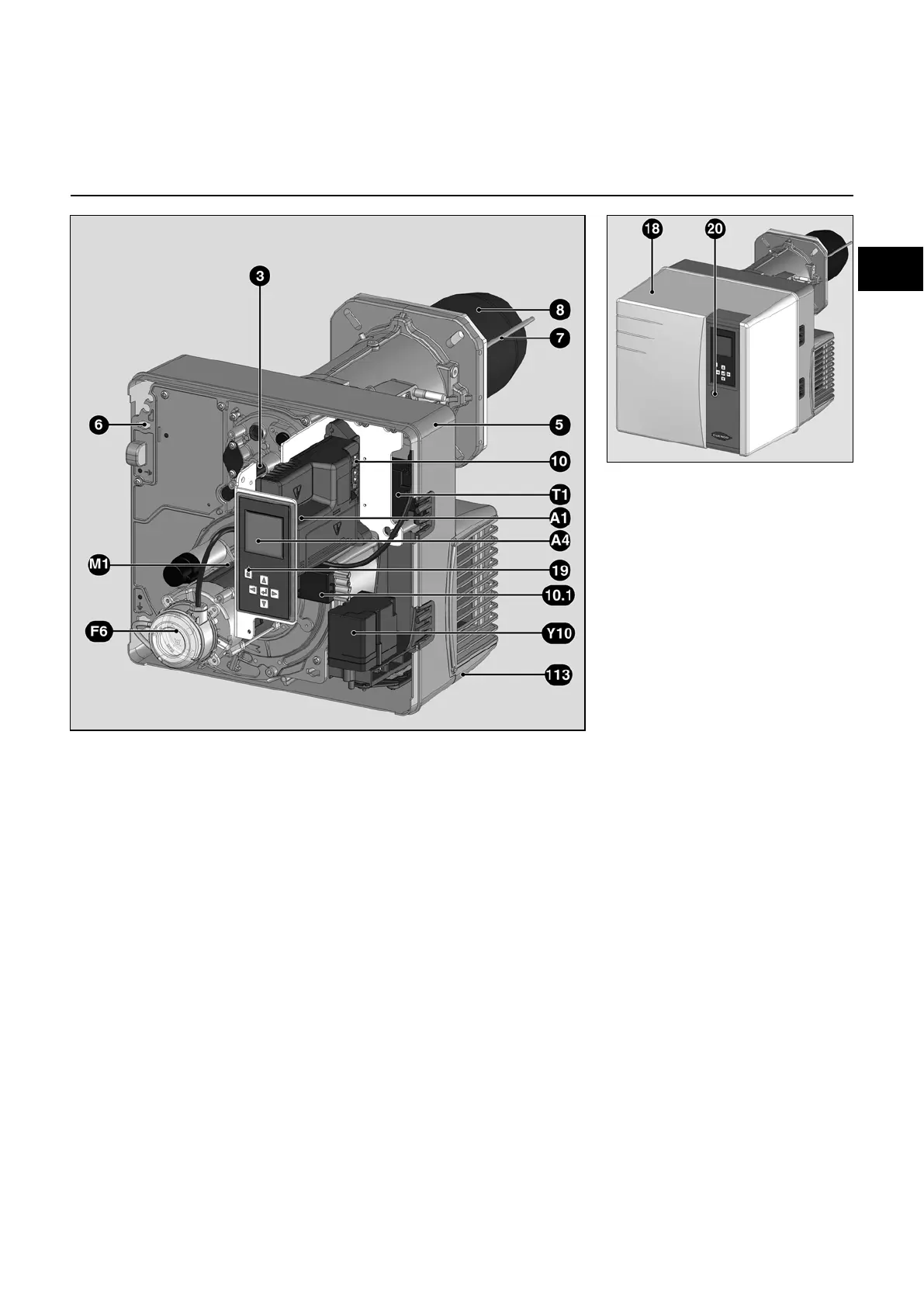

Burner description
Y10 Air flap servomotor
A1 Automatic combustion control unit
A4 Display
F6 Air pressure switch
M1 Blower motor
T1 Igniter
3 Adjusting screw for dimension Y
5 Housing
6 Plate hanging device
7 Combustion chamber pressure take-
off pipe
8 Burner tube
10 7 pin connector
10.1 4 pin connector
18 Cover
19 Release knob
20 Hood securing screw
113 Air intake box
