Service Parts 75
Cat. No. 01016370
Section 1

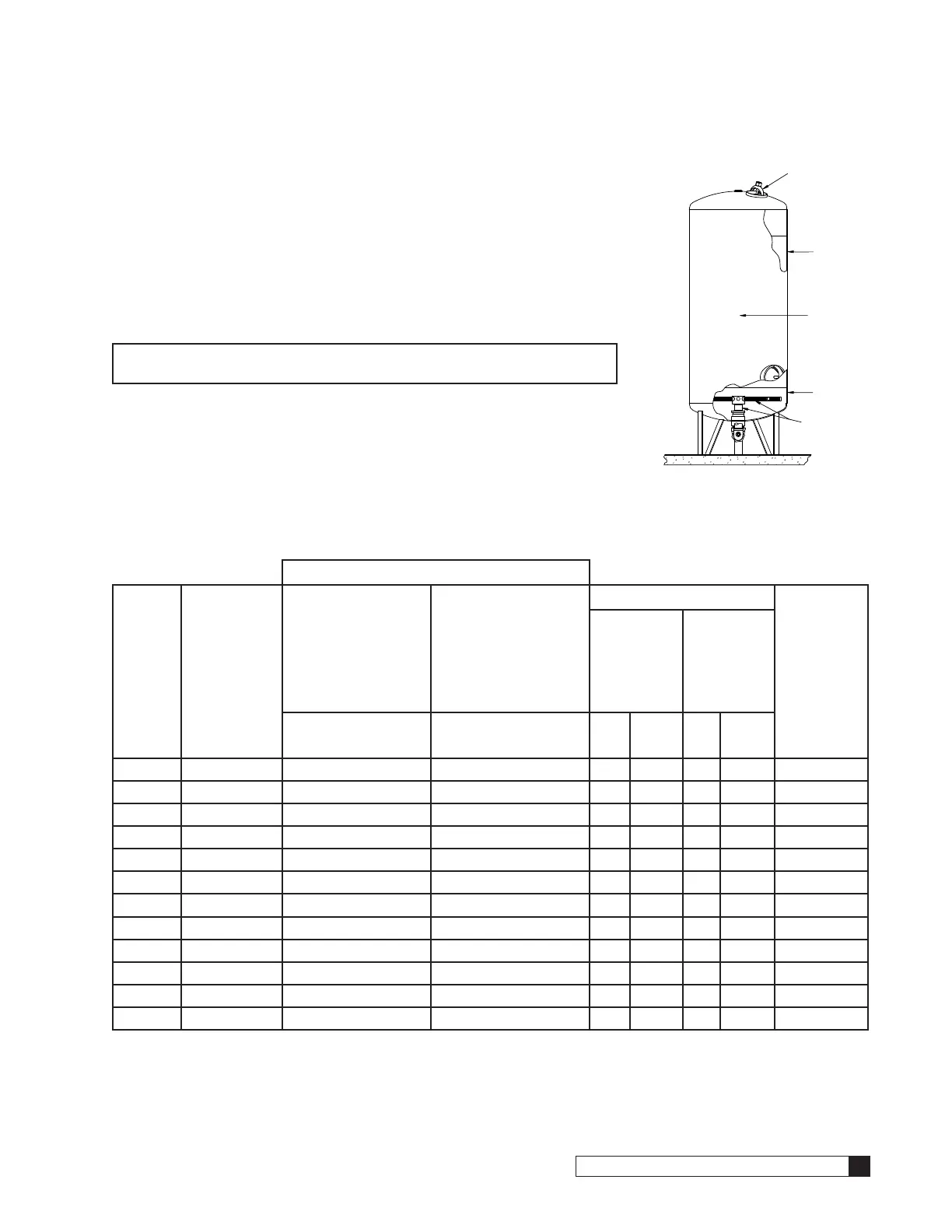

Replacement Resin Tank and Support Parts
Standard Replacement Tank Assembly*
Tanks 20-30” are supplied with a hand-hole in the top and lower sideshell. Tanks
36” diameter and larger are supplied with a manhole in the top and a hand-hole in
the side. All tanks are equipped with non-adjustable steel legs welded to tank. The
upper distributor and hub lateral lower distributor system must be ordered seper-
ately. Refer to the chart for available tank types.
NOTE * The gravel support bed must be ordered separately and in-
stalled on-site. Refer to the chart for the required quantity.
Table 13.
Tank Type
Model
Tank Size/
Valve Size
Non-Code
100 PSI Working
Pressure
Lined Interior
Finish Painted
Exterior
ASME Code
125 PSI Working
Pressure
Lined Interior
Finish Painted
Exterior
Underbed* - #1-2
Cullex
Resin
#1-3
Req’d.**
cu ft bags
Non-
Code
ASME
Code
#1-1 Tank Assm.
Part No.
#1-1 Tank Assm.
Part No.
lbs bags lbs bags
150-2 20x54-2” 01020120 01020128 100 2 100 2 5
210-2 24x54-2” 01020121 01020129 200 4 200 4 7
300-2 30x60-2” 01020122 01020130 300 6 300 6 10
300-3 30x60-3” 01020122 01020130 300 6 300 6 10
450-2 30x60-2” 01020122 01020130 300 6 300 6 15
450-3 30x60-3” 01020122 01020130 300 6 300 6 15
600-2 36x60-2” 01020124 01020132 400 8 500 10 20
600-3 36x60-3” 01020124 01020132 400 8 500 10 20
750-2 36x60-2” 01020126 01020132 600 12 800 16 25
750-3 36x60-3” 01020126 01020132 600 12 800 16 25
900-2 42x60-2” 01020126 01020134 600 12 800 16 30
900-3 42x60-3” 01020126 01020134 600 12 800 16 30
* Gravel is supplied in 50 lb bags. Part #00162310 is for a 50 lb bag.
** Resin is supplied in a 1 cubic foot bag. Part #00156001 is for a 1 cubic foot bag.
#1-3
#1-1
#1-2
#1-5
Figure 118.
