Attaching the Cover
Once the drain and brine line is connected re-attach the cover. Refer to the below instructions and Figure 9 through
Figure 11.
1. Insert the two pins on the top of the cover into the two holes on top of the frame; the cover should be slightly
angled. See Figure 10.
2. Rotate the cover downward inserting the two pins on the side of the cover into the two holes on side of the
frame. See Figure 10.
3. Attach the cover fastener onto the control valve. See Figure 11.

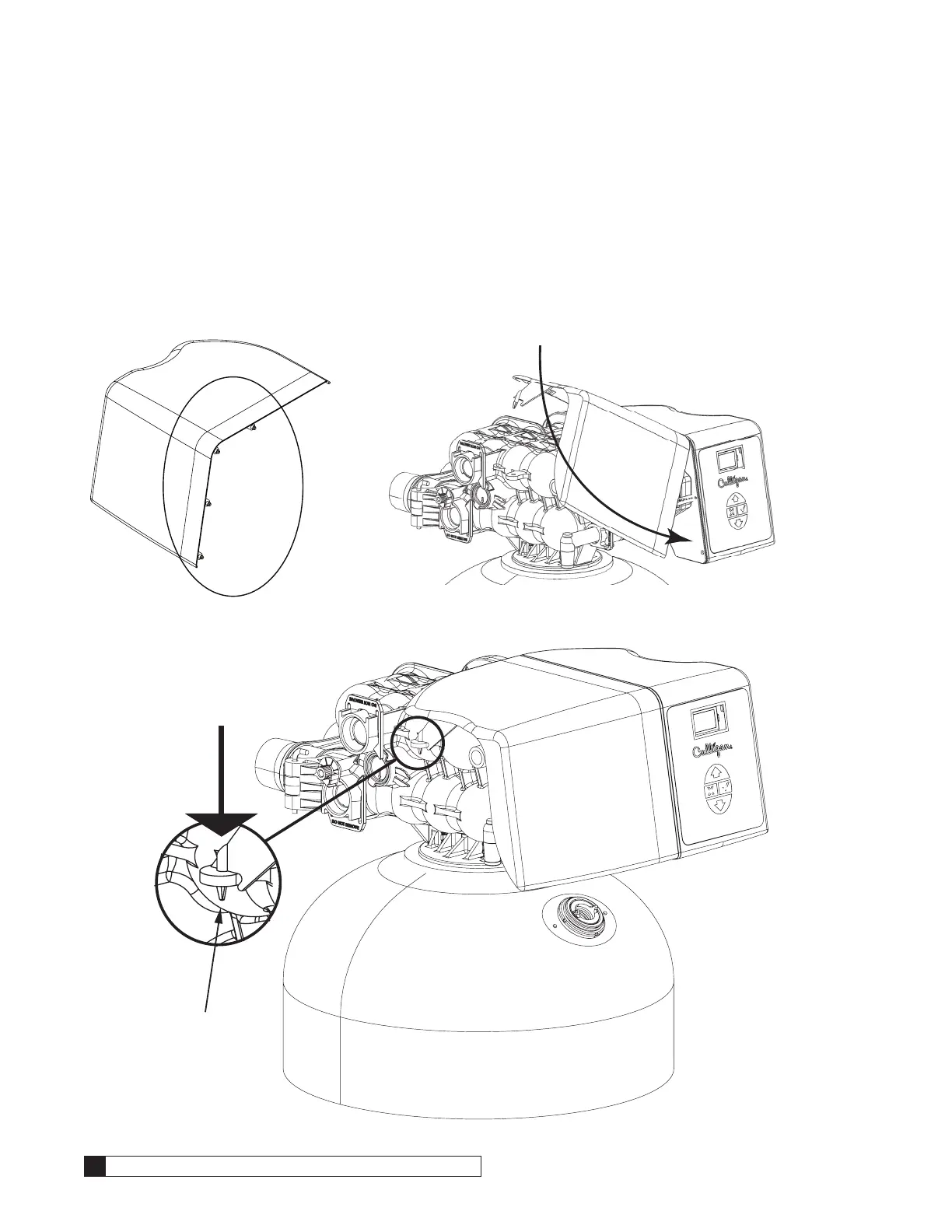

Figure 9. Cover fastener clip. Figure 10. Reattaching the HE softener cover.
Cover
Fastener
Push Down
Into Place
Figure 11. Reattaching the cover fastener.
