Raw water is allowed in the inlet to the top of the tank. The water is run through the resin up the manifold to the outlet.
The water to the outlet should be soft if the system is operating properly.
P1
P2
P3
Raw
Water
Conditioned
Water
To
Drain
To
Brine
Tank
Tank
Inlet
Tank
Outlet
Brine
Piston
P6
P4
P5
PR
Hard Water
Softened Water
Drain
Brine
Diluted Brine

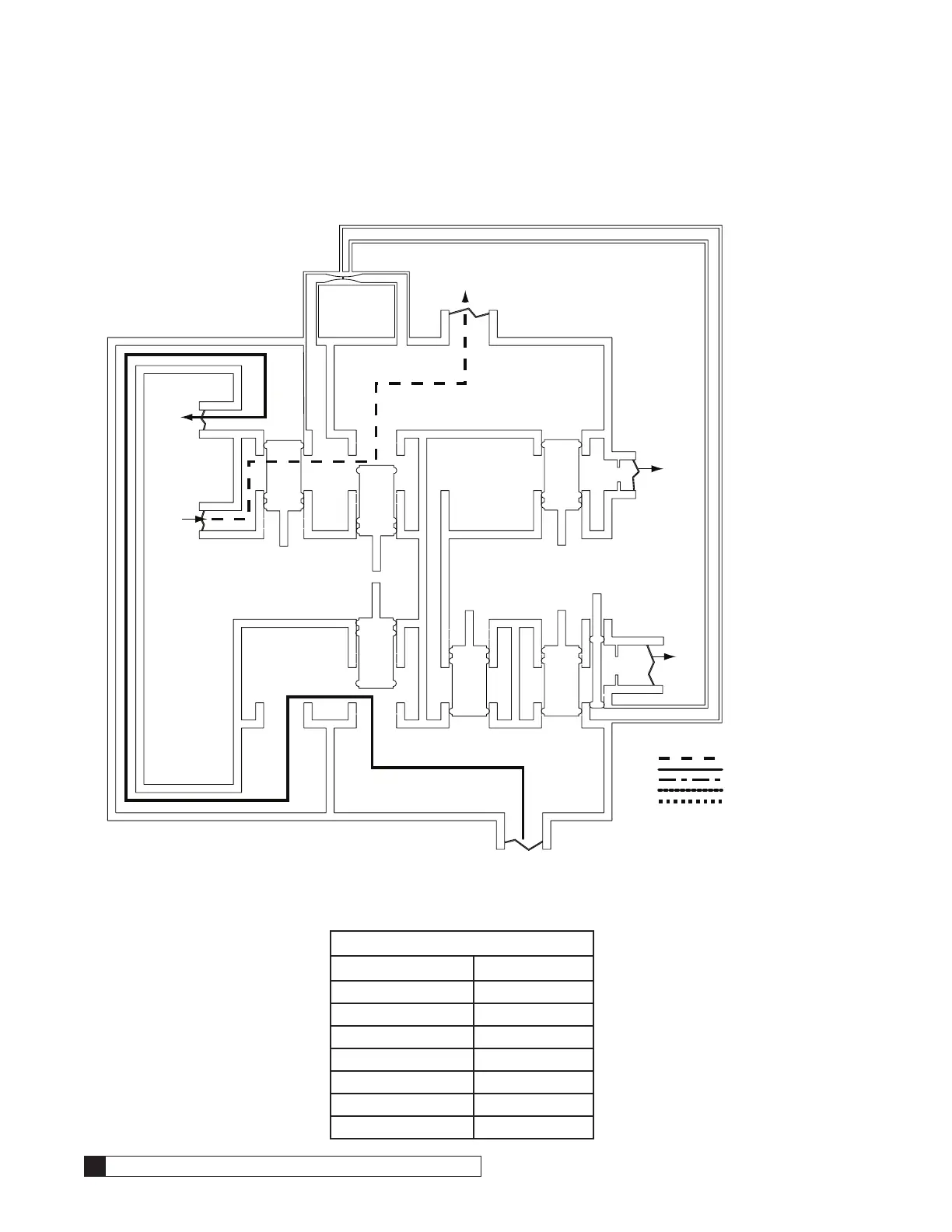

Figure 53. Down flow regeneration—service.
Service
Piston Position
P1–Inlet Open
P2/3–Outlet Open
P4–Backwash Closed
P5–Rinse Closed
P6–Bypass Closed
Brine Piston Closed
PR–Refill Closed
