Culligan High Efficiency 1.5 Twin Series User Manual

Troubleshooting 51
Cat. No. 01024821
Backwash
Raw water is directed down the center of the manifold, up through the resin, out the top of the tank to drain. The water to
drain should be hard.
P1
P2
P3
Raw
Water
Bypassed
Water
To
Drain
To
Brine
Tank
Tank
Inlet
Tank
Outlet
Brine
Piston
P6
P4
P5
PR
Hard Water
Softened Water
Drain
Brine
Diluted Brine

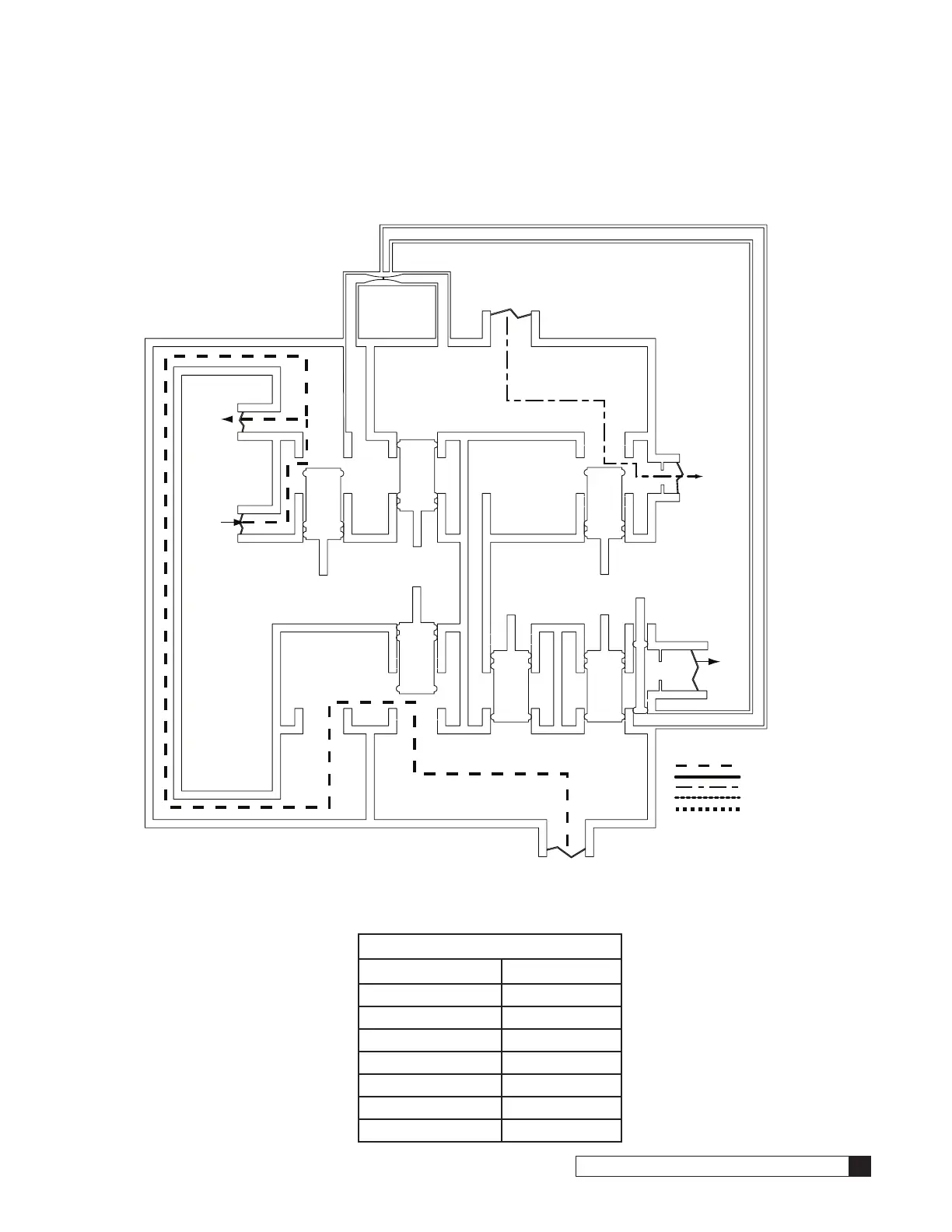

Figure 54. Down flow regeneration—backwash.
Backwash
Piston Position
P1–Inlet Closed
P2/3–Outlet Open
P4–Backwash Open
P5–Rinse Closed
P6–Bypass Open
Brine Piston Closed
PR–Refill Closed
