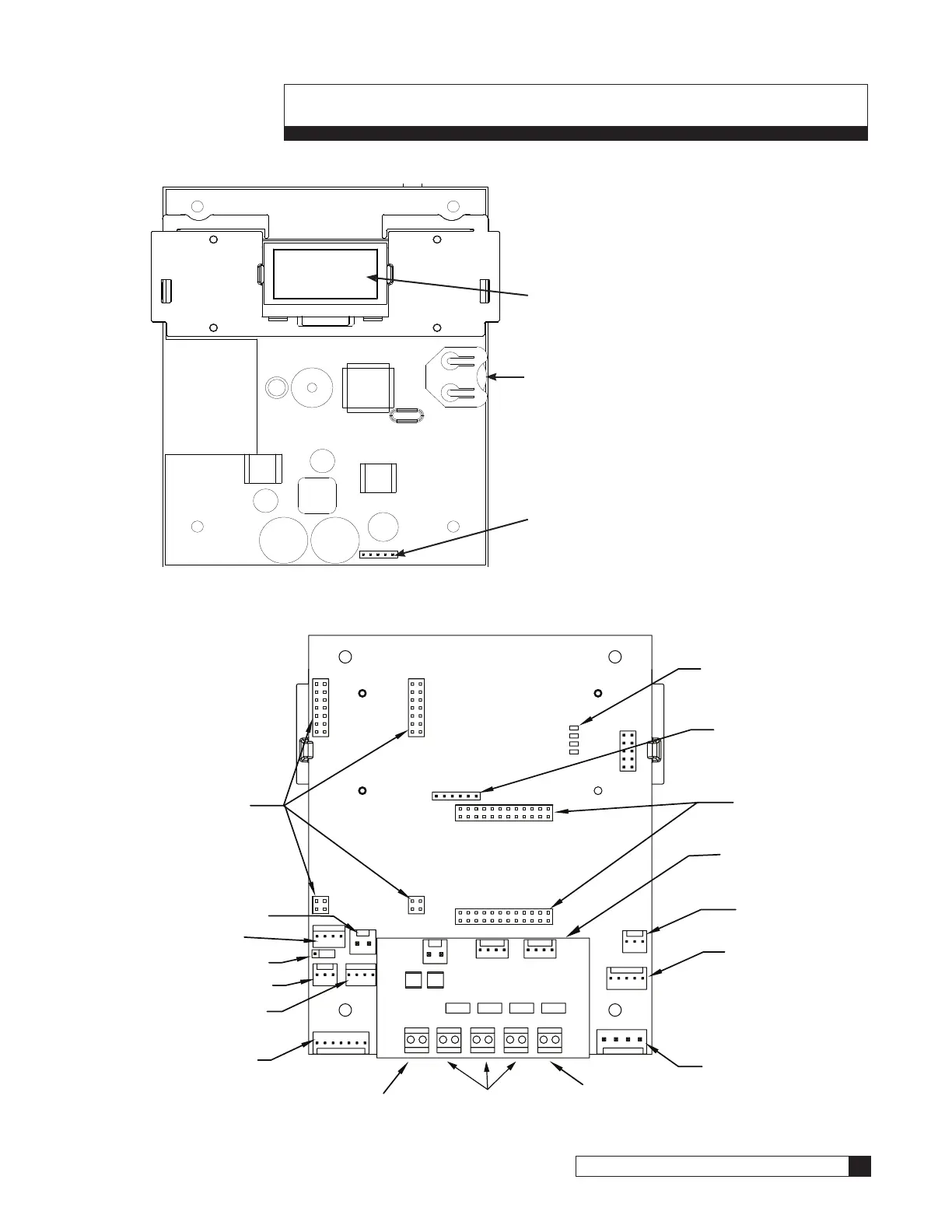

Culligan High Efficiency 1.5 - Smart Controller Circuit Board Layout

Electrical Schematic 25
Cat. No. 01023552
Electrical Schematic
POSITION
MOTOR
CONNECTOR(REDWIRE) -PLUS CONNECTOR(BLACKWIRE) -MINUS (ASSHOWN ABOVE) BEND THEPINSDOWNAFTER ASSEMBLING THECONNECTORS
SENSOR BOARDSHOULDBEATTACHED WITH WIRESPOINTINGUP (ASSHOWN ABOVE)
FLOW METER
BLACKWIRE
GREENWIRE
REDWIRE
EMPTY
REDWIRE
BLACKWIREGREENWIRE
DETAIL A
SCALE2 : 1
GREENWIRE
BLACKWIRE
GREENWIRE
REDWIRE
EMPTY
BLACKWIRE
REDWIRE
BLACKWIRE REDWIRE
BLACKWIRE
REDWIRE
REDWIRE
BLACKWIRE
DISPLAY
KEYPAD CONNECTOR
BATTERY CR2032 (POS. SIDE UP)
FRONT
BACK
Power to circuit board 24V
Red
Black
Blue
White
Connector Plugs
POSITION SENSOR CONNECTOR
MOTOR CONNECTOR
FLOW METER
CONNECTOR
AQUA-SENSOR PROBE
PHONE
24v
2.5v
Power to circuit board
2.5VAC required only for
Aqua-Sensor installations
Power cable should be
plugged to 24V
connectors—right side
Aqua-Sensor power
cable should be
plugged to 2.5VAC
connectors—left side
FLOW METER
CONNECTOR
POSITION
SENSOR
CONNECTOR
MOTOR
CONNECTOR
MOTOR
POSITION
SENSOR
TRANSFORMER
AQUA-SENSOR
CONNECTOR
GBE BOARD
POWER CABLE
AQUA-SENSOR
POWER CABLE
