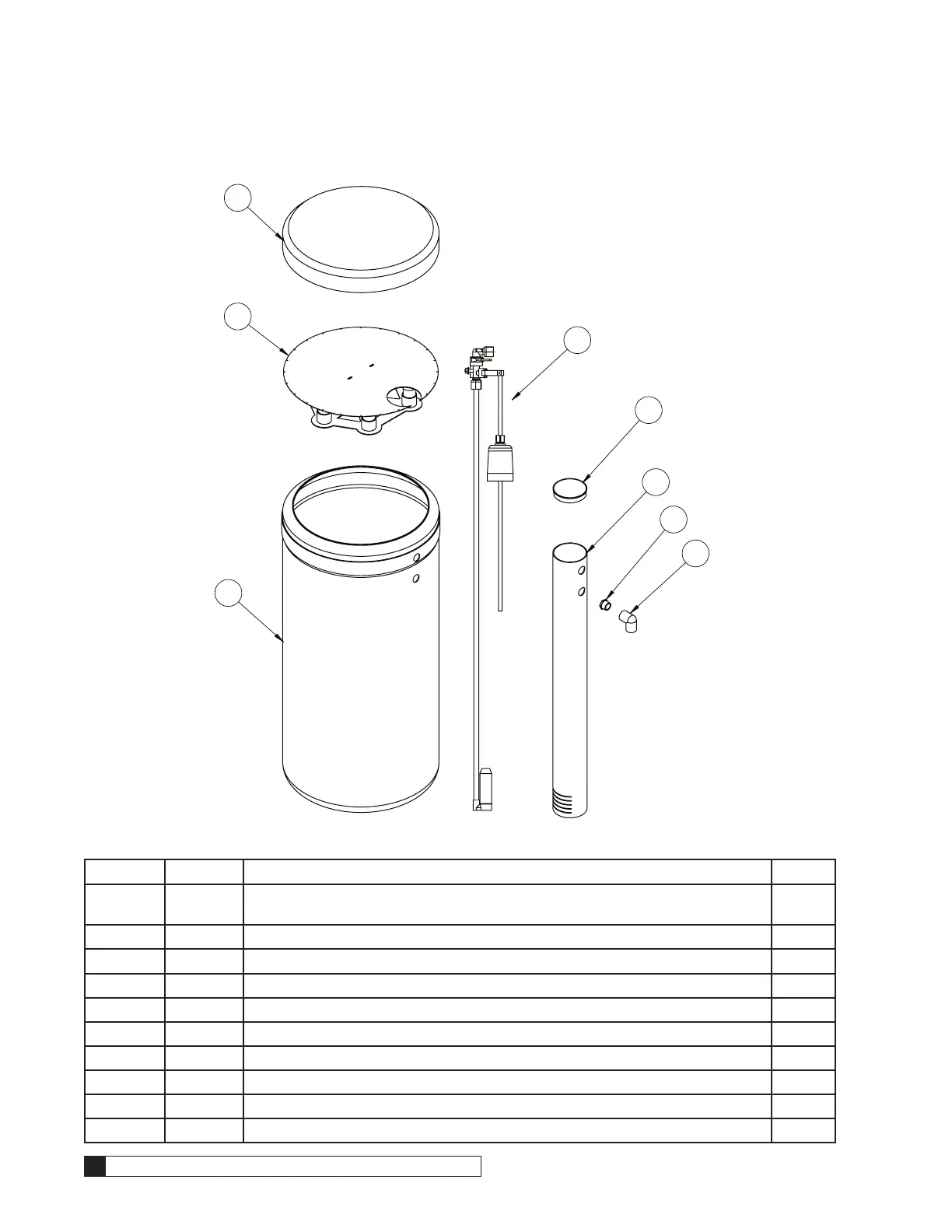

62 Culligan® High Efficiency 1.5 Water Softener
62 Cat. No. 01023552
Down Flow Regeneration—Fast Rinse
Hard water is directed from the inlet into the top of the tank, down the resin tank, up the manifold, and then out to drain.
Hard water is allowed to service during regeneration.
P1
P2
P3
Raw
Water
Bypassed
Water
To
Drain
To
Brine
Tank
Tank
Inlet
Tank
Outlet
Brine
Piston
P6
P4
P5
PR
Hard Water
Softened Water
Drain
Brine
Diluted Brine
Figure 70. Down flow regeneration—fast rinse.
Fast Rinse
Piston Position
P1–Inlet Open
P2/3–Outlet Closed
P4–Backwash Closed
P5–Rinse Open
P6–Bypass Piston Open
Brine Piston Closed
PR–Refill Piston Closed
