Accessories 29
Cat. No. 01022940
Accessories
TDS Probe (Optional: Order Separately)
An optional TDS probe (P/N 01021876) monitors the water quality in the system. If the total dissolved solids measured by
the TDS probe exceeds the required quality level set by the DIP switches, the system will stop producing treated water.
The probe is connected to the CP Plus board via an MT board (P/N 01022143): see Figure 23.
CP Plus Board
MT Board
TDS Probe
PN 01022143
PN 01021876

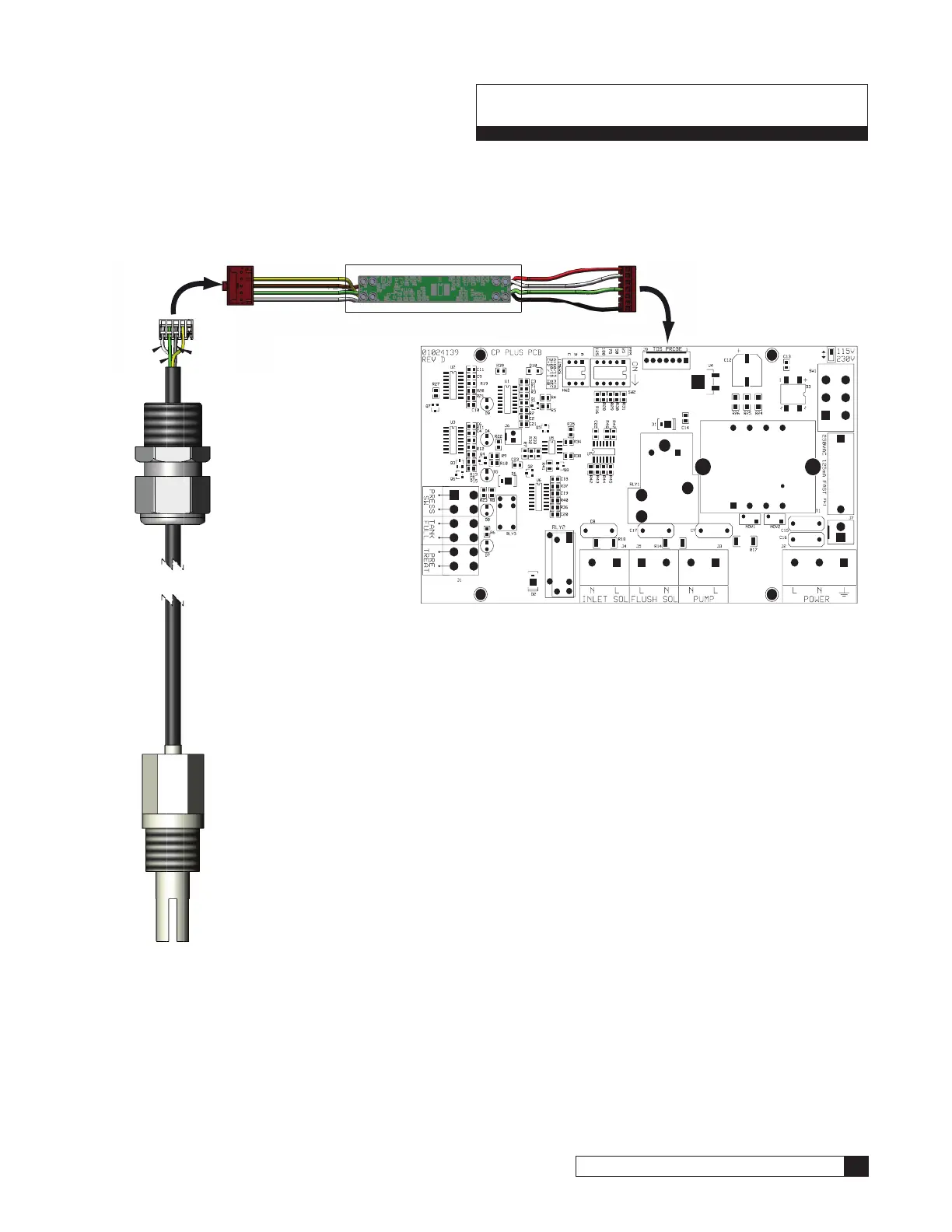

Figure 23. CP Plus-MT Board-TDS Probe connection.
