Wiring Diagram 43
Cat. No. 01022940
Wiring Diagram
Series M1 Wiring Diagram
CABLE, SOLENOID
BLACK
RED
POWER CORD, MOTOR
WHITE
BLACK
BLACK
WHITE
115V/60Hz/1PH
INCOMING POWER
CABLE, INLET PRESSURE SWITCH
WHITE
RED
LEVEL CONTROL INPUT AND
PRETREATMENT LOCKOUT INPUT
(Remove jumpers when installing TANK FULL
Switch or Pretreatment Lockout Connection)
GREEN
GREEN
GREEN
NOTE: The inlet pressure switch is CLOSED when the
pressure is sufficient for the RO to run.
A NORMALLY CLOSED
Level Switch is required.
The switch is CLOSED
when water level is below
the float or pressure in the
storage tank is below the
shutoff pressure.
STORAGE TANK
PRETREATMENT LOCKOUT SWITCH
A NORMALLY CLOSED switch is required. This
switch is OPEN during regeneration, but is
CLOSED at all other times.
SV4
PS
PRESSURIZED
STORAGE KIT
D1013880
BROWN
B:LACK
GREEN
WHITE
RED

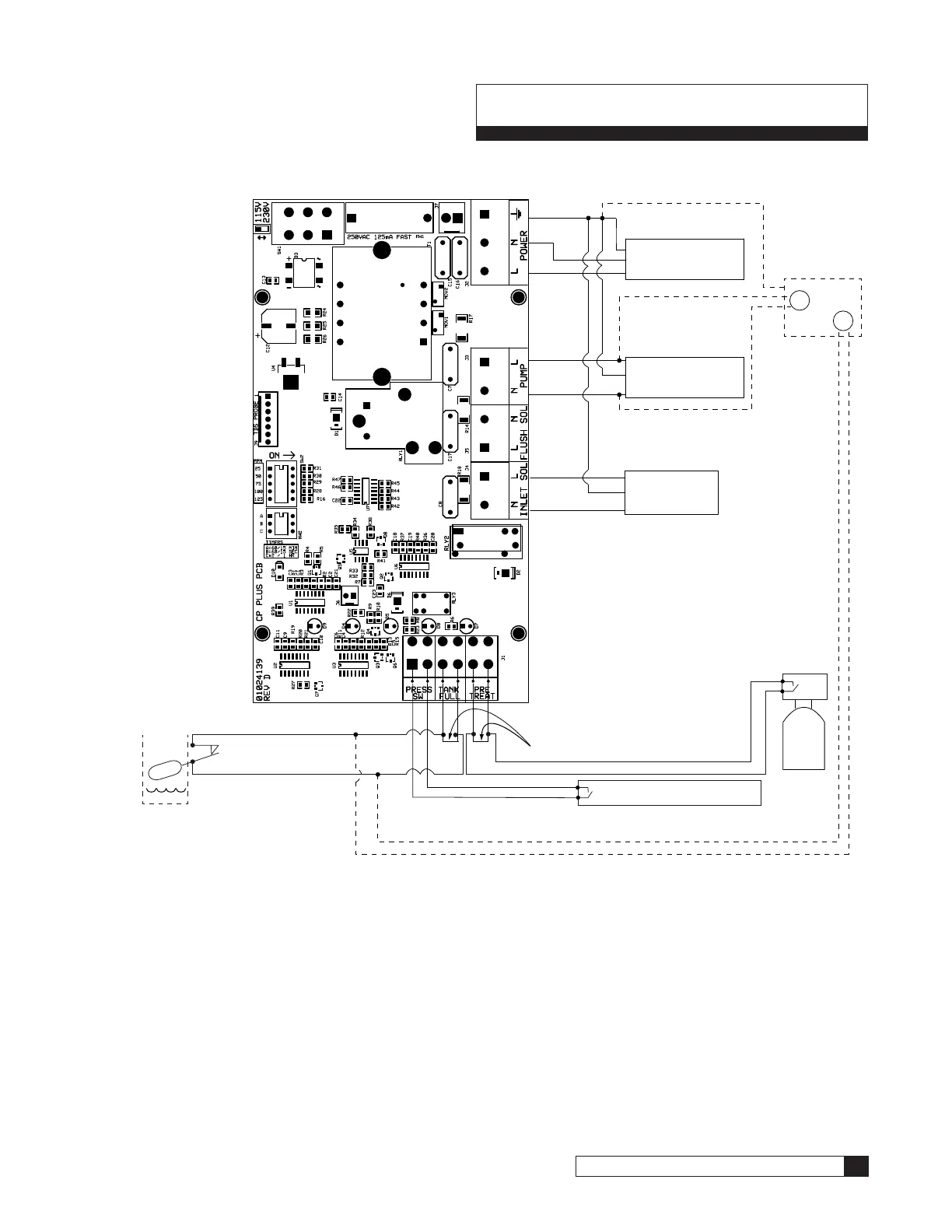

Figure 25. Series M1 wiring diagram.
