Culligan M1 Series User Manual

56 Culligan® M1 Series Reverse Osmosis
56 Cat. No. 01022940
2F Sub-Assembly
Note orientation
of the second
housing, which
must be turned
so flow direction
is up.
B
C
A
A
A
C
A
= to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
Used Only When Mounting
on Floor Stand
7
PRODUCT
FEED
6
8
C
4
C
4
3
3
Bottom View
Top View
2
3
1
8
2
5
2
2
5

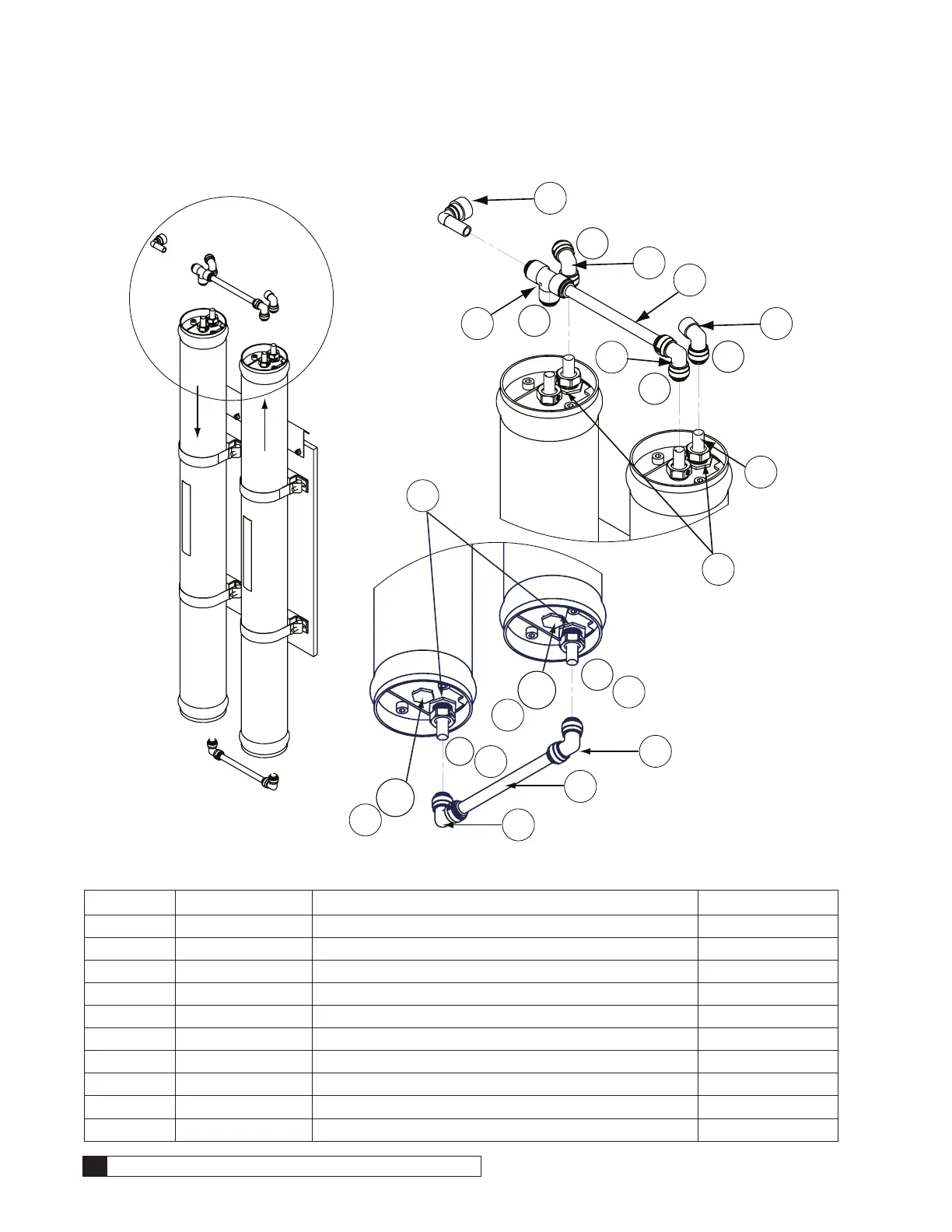

Figure 38. M1-2F sub-assembly.
Item Part No. Description Quantity
01022875 Assembly, Membrane Housing, Single, 4.0"x40"
01023914 Kit, Tube and Fittings, 2F (includes items 1–8)
1 — Elbow, Union, Reducing, 1/2 x 3/8, PI, Polypropylene 1 EA
2 — Elbow, Union, 1/2 Tube, Polypropylene 4 EA
3 — Stem Adapter, 1/2Tx1/2 Stem, Polypropylene 6 EA
4 — Plug, 1/2" NPT, PVC Sch 80 2 EA
5 — BUSHING,3/4x1/2,TxT,PVC SCH.80, 4 EA
6 — Tee, Union, 1/2 Tube, PI, Polypropylene 1 EA
7 — Elbow,1/2 Stem x 1/2T,PI 1 EA
8 — Tube, 1/2", Length 7.5" 2 EA
