Culligan M1 Series User Manual

M1 RO International 71
Cat. No. 01022940
4L Sub-Assembly, 230V
7
Used Only
When Mounting
on Floor Stand
Top View
FEED
3
1
A
PRODUCT
6
A
A
C
C
C
2
4
1
1
B
C
1
Bottom View
5
A
C
A = to Feed Port
B = to Recirculating Assy
C = to Center Port (Product)
2
1
1
A
4
4
8
2
1
1
8
3
6
Note Orientation
of Flow

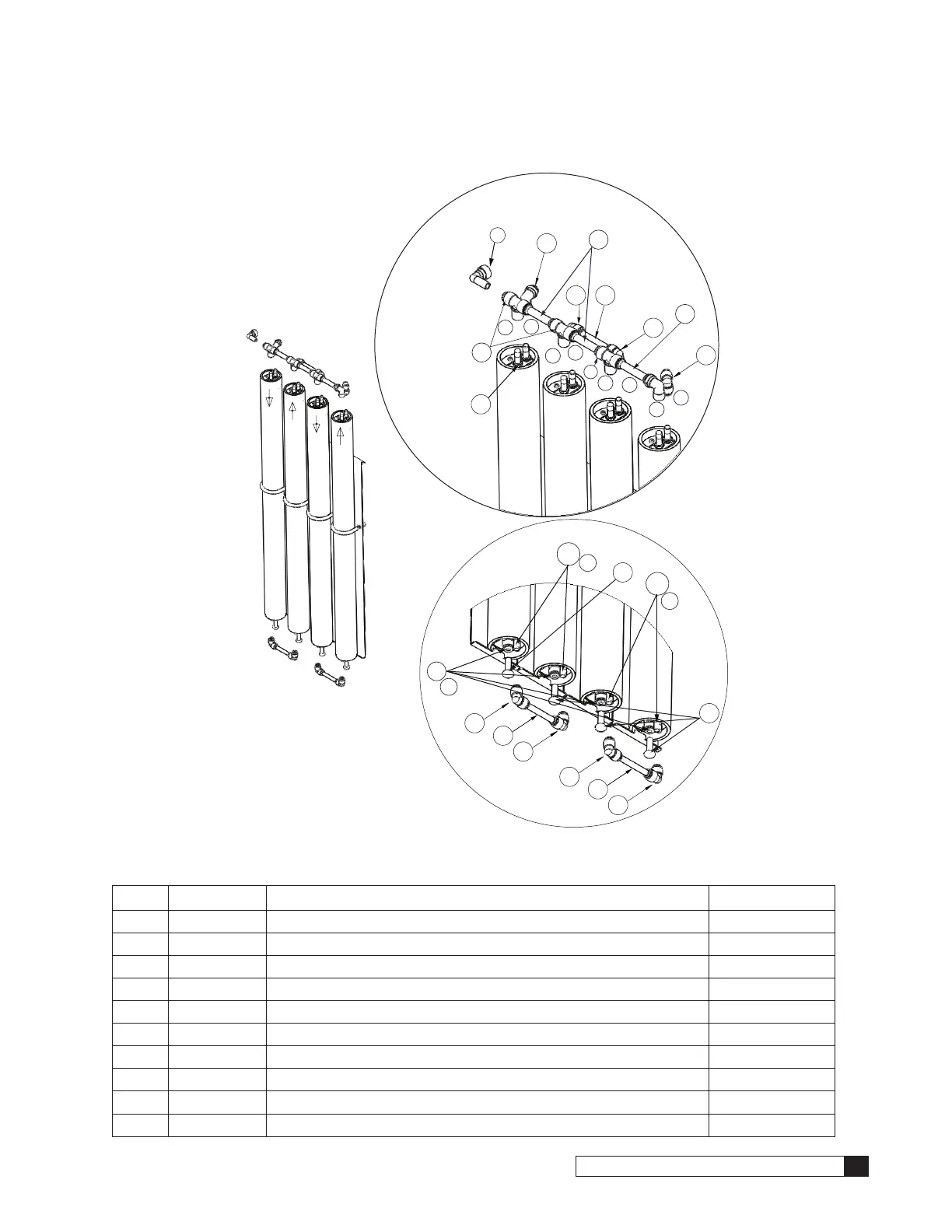

Figure 52. 4L sub-assembly, 230V.
Item Part No. Description Quantity
01025334 Assembly, Membrane Housing, Metric, Single, 2.5"x40"
Kit, Tube and Fittings (includes items 1–9)
1 — Elbow, Union, 10mm 9 EA
2 — Tube, 10mm 3 EA
3 — Tube, 10mm 3 EA
4 — Stem Adapter, 1/4BSPP, 10mm 12 EA
5 — Connector, 1/4BSPP, 10mm 4 EA
6 — Tee, Union, 10mm 3 EA
7 — Elbow,10mm Stem 1 EA
8 — Plug, 10mm 4 EA
