Installing the Modem In the Remote
Open the remote monitor housing by removing the two screws and squeezing the sides of the monitor housing slightly.
Insert the modem board (P/N 01020747) into the socket on the back of the remote board (see Figure 14). Make sure that
all of the pins in all four connectors are aligned and make sure the modem is fully seated into all of the sockets. Snap the
two halves of the remote housing back together using light finger pressure and insert the two screws.

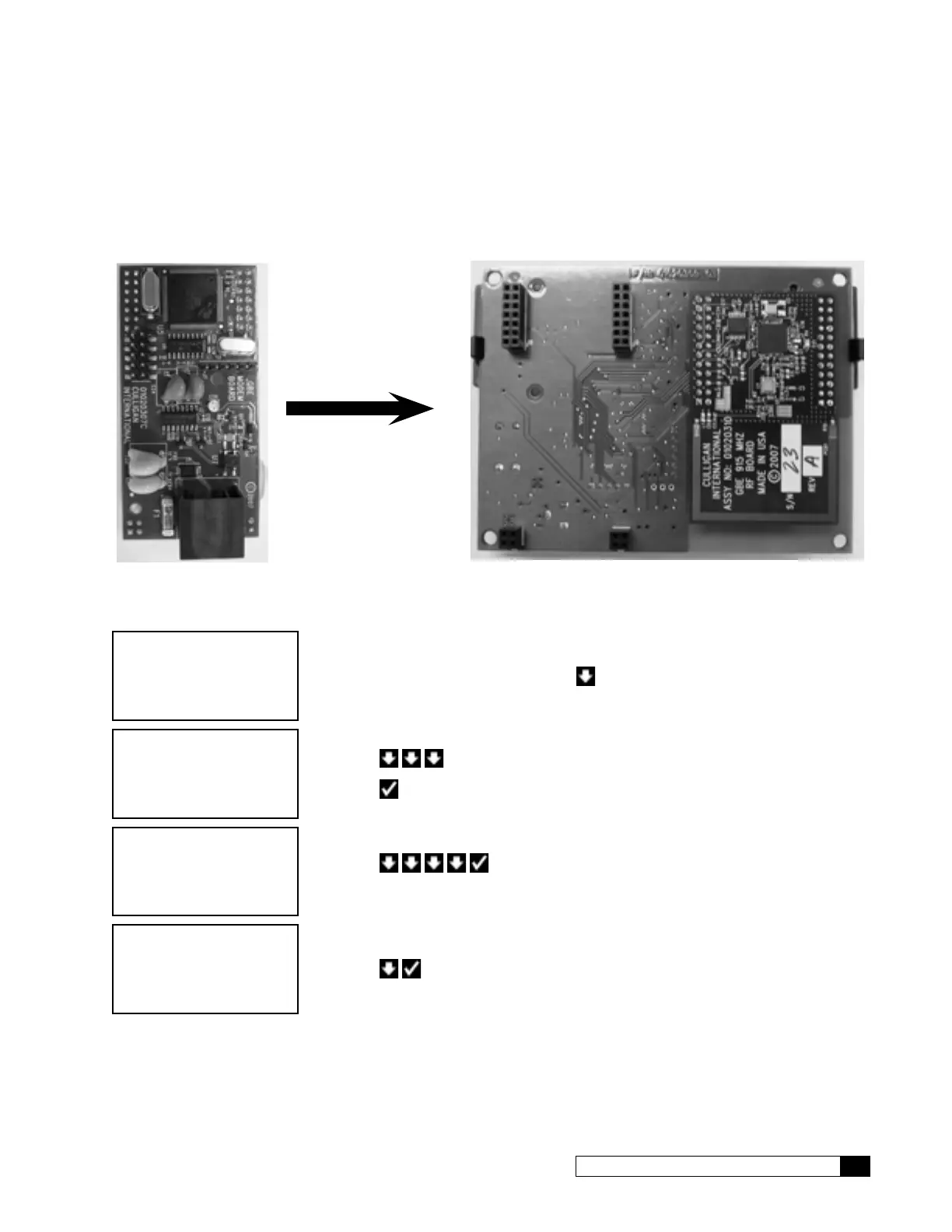

Figure 14. Modem installed on back of remote board.
GBE RO Controller Modem Setup
RUNNING
JAN-01-12 12:01P
1. From the default home screen, press . The screen displays the main menu.
1) GO TO RUNNING
2) GO TO OFFLINE
3) INFORMATION
>4) SETUP
2. Press to scroll to 4) SETUP.
3. Press
to select the SETUP menu.
2) LANGUAGE
3) POWERON MODE
4) FLUSH MODES
>5) ACCESSORIES
4. Press to select 5)ACCESSORIES. The screen displays the ac-
cessories menu.
1) WIRELESS REM
>2) MODEM
3) FLOW METERS
4) SWITCH INPTS
5. Press to select 2)MODEM. The screen displays the modem settings.
To Next Page
