Switch Inputs

Low Pressure Switch

Display says

“OFFLINE”

or “STANDBY”;

then the

SV1 output

is OFF; and

the pump output

is OFF;

display says

“STARTING”,

then the

SV1 output

turns ON;

the pump output

is OFF; and the

“SV1 Delay”

time starts;

at the end of

the “SV1 Delay time;

the unit checks

the pressure

switch input;

If the pressure is ok,

then the

pump starts, and

the display

says ”RUNNING”

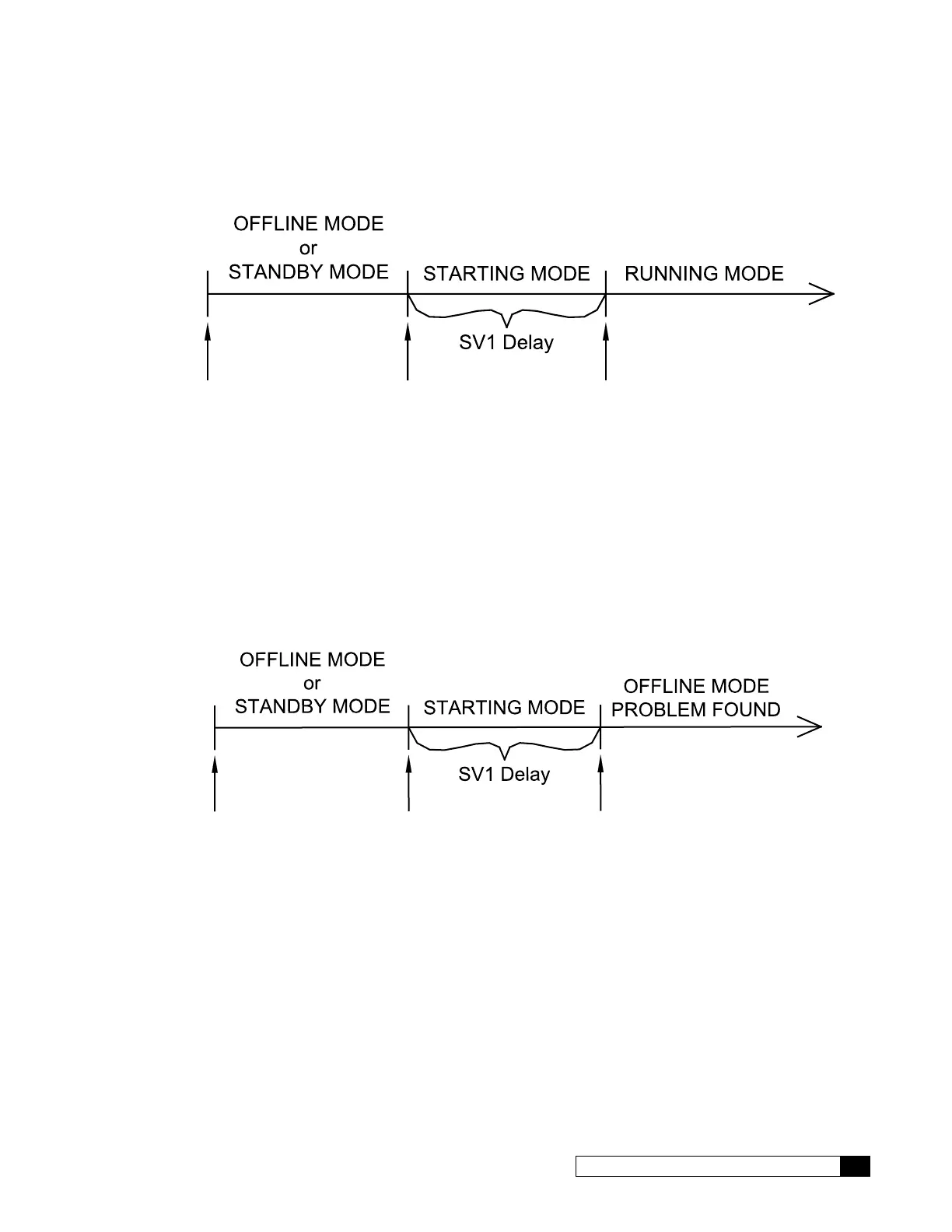

Figure 16. OFFLINE to RUNNING

at the end of

“SV1 Delay time;

the unit checks

the pressure

switch input;

If the pressure

is NOT ok,

then the unit turns

off the SV1 output;

the pump output

stays OFF; and

the displays

says ”OFFLINE”

and “PROBLEM FOUND”

display says

“STARTING”,

then the

SV1 output

turns ON;

the pump output

is OFF; and

the “SV1 Delay”

time starts;

Display says

“OFFLINE”

or “ST

ANDBY”;

then the

SV1 output

is OFF;

and the

pump output

is OFF;

Figure 17. OFFLINE to PROBLEM FOUND
