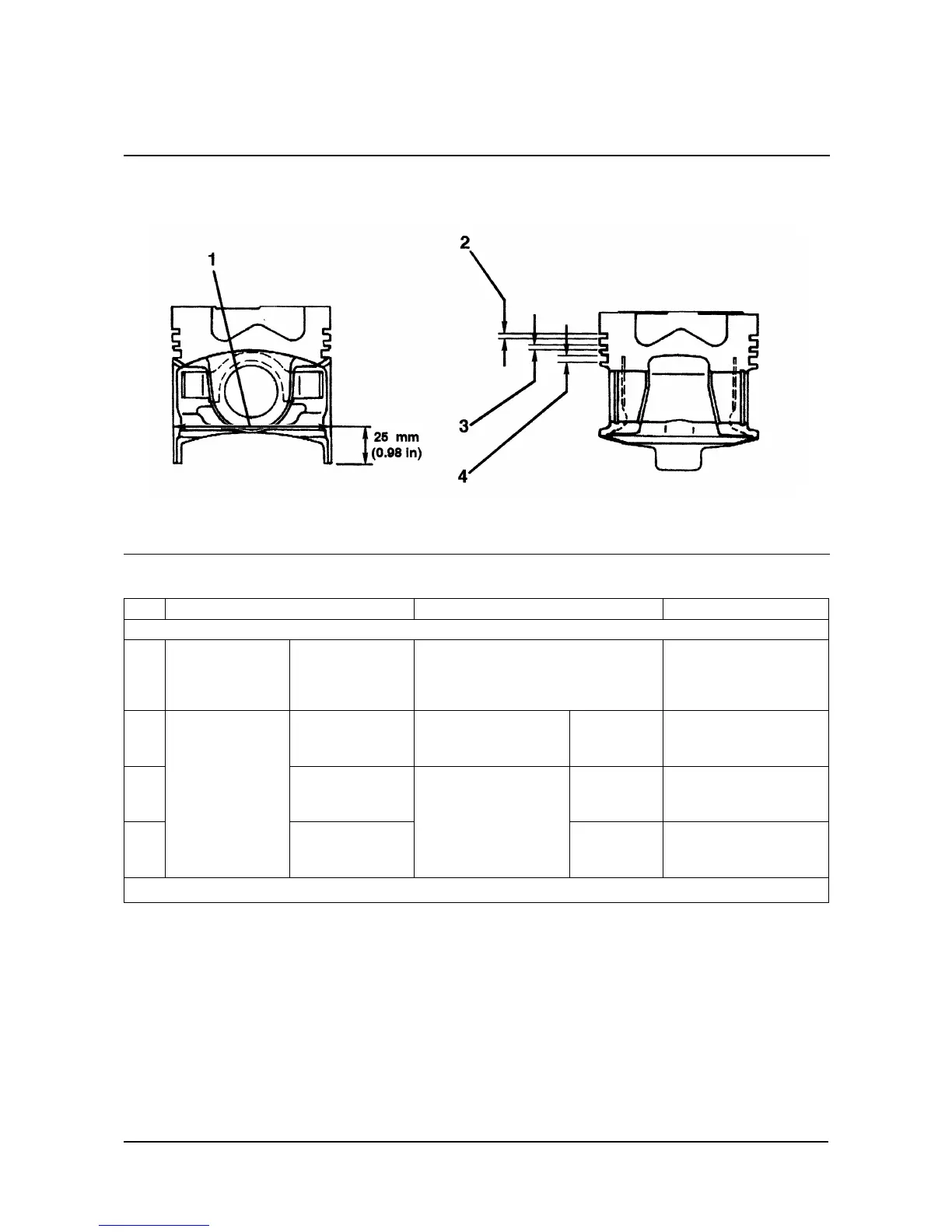

CUMMINS B3.3 - Piston

Diesel Engine Specifications
110
Piston
Ref Inspection Item Standard Remarks
PISTON
1 Diameter STD
ID:
95.00 mm
[3.740 in]
Repair Limit:
ID:
94.85 mm
[3.734 in]
2 Top
0.06 to 0.10 mm
[0.0024 to 0.0039 in]
2.0 mm
[0.079 in]*
Repair Limit:
0.15 mm
[0.0059 in]
3 Second
2.0 mm
[0.079 in]*
Repair Limit:
0.20 mm
[0.0079 in]
4
Clearance
Between
Piston Ring
Groove and
Piston Ring
Oil
0.03 to 0.07 mm
[0.0012 to 0.0028 in]
4.0 mm
[0.158 in]*
Repair Limit:
0.15 mm
[0.0059 in]
*Width of Groove (Nominal)
18900020
