Diesel Engine Engine Identification
16

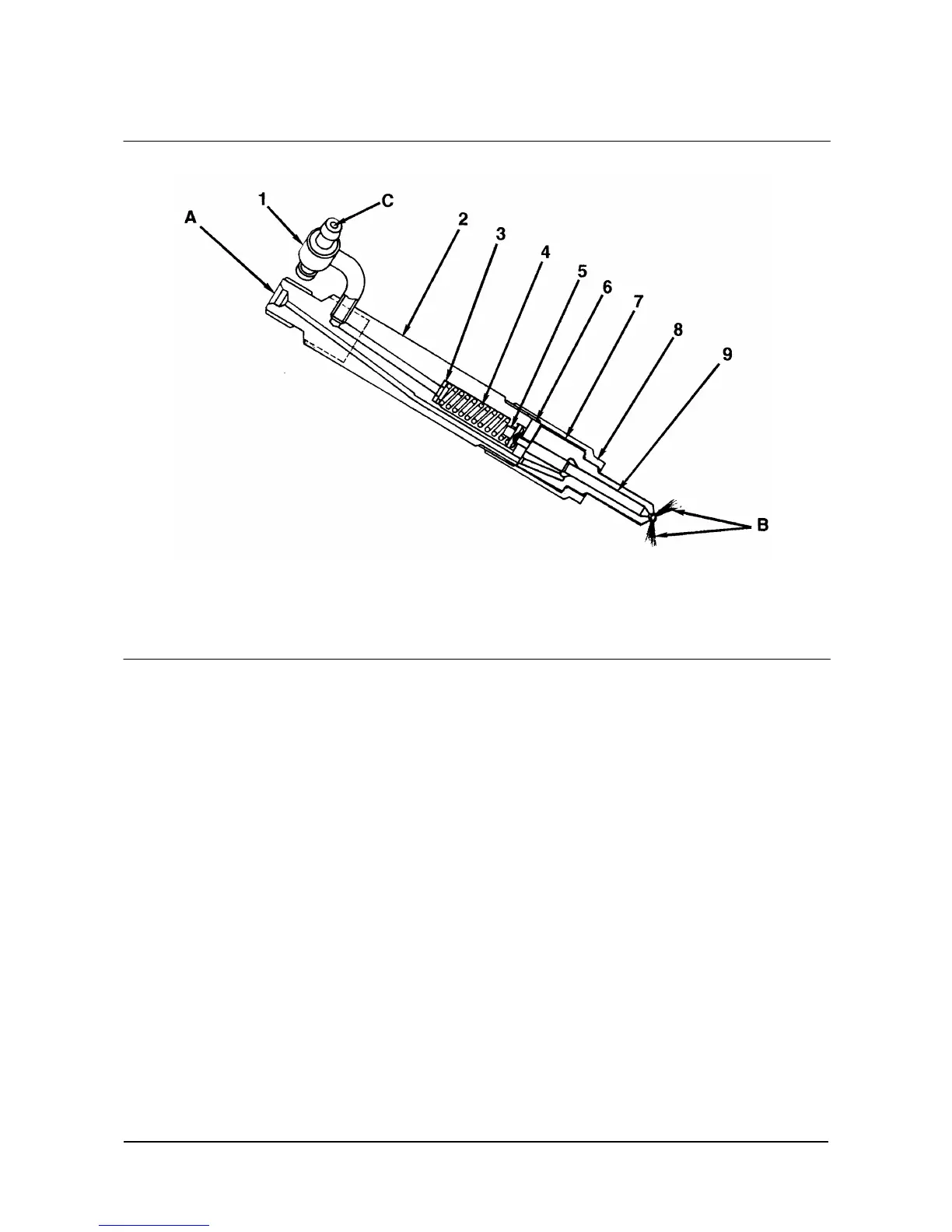

1. Fuel Drain Line Connector
2. Nozzle Holder
3. Adjusting Shim
4. Nozzle spring
5. Spring seat
6. Intermadiate Plate
7. Nozzle Body
8. Retaining Nut
9. Needle.
A. Fuel Inlet (from injection pump)
B. Fuel Injection (to cylinder)
C. Fuel Return (to fuel tank).
Fuel Injection Nozzle
• Maker: Zexel
• Injection Pressure: 40 MPa
• Adjustment of Injection Pressure: By Shim.
00900151
