Diesel Engine Complete Engine
67

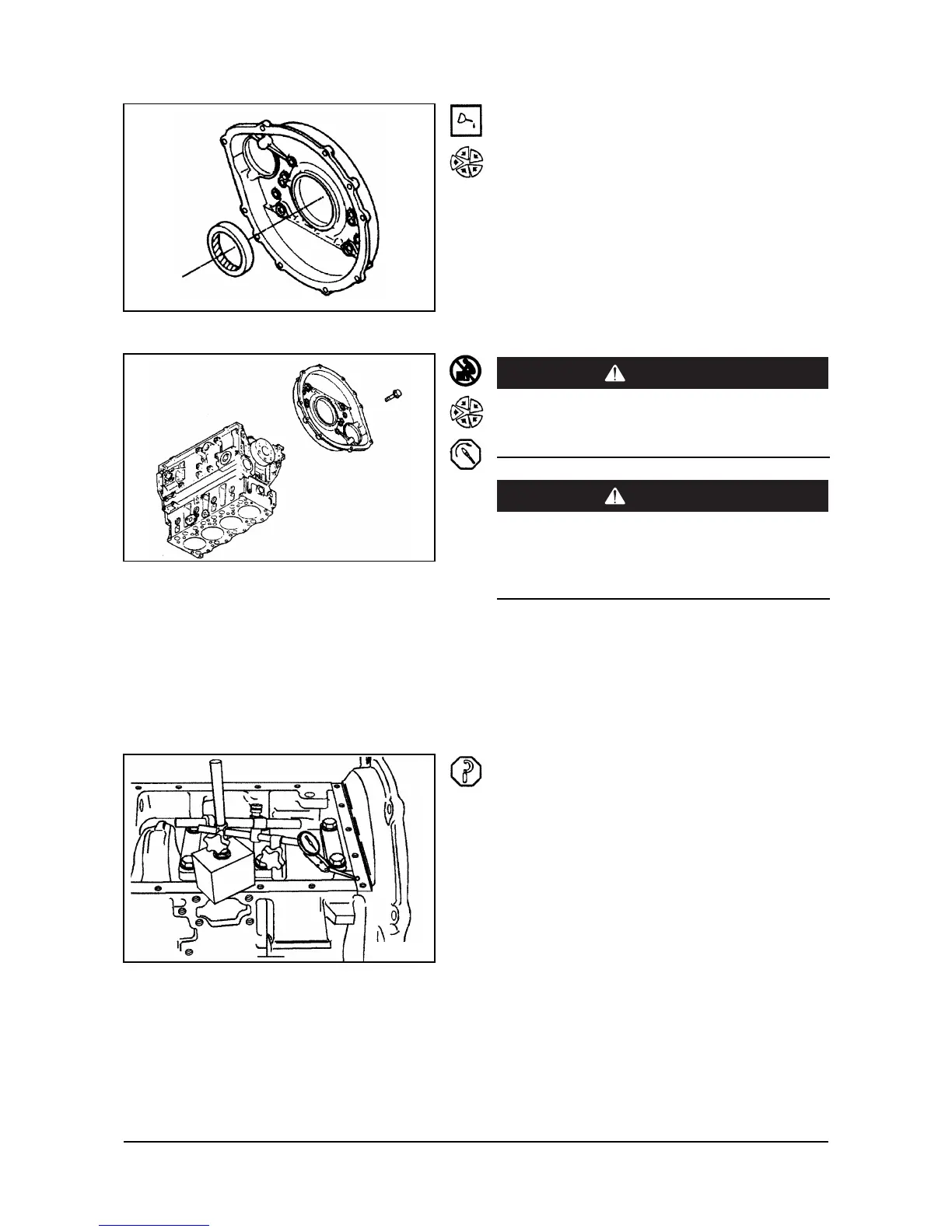

Flywheel Housing
Install the rear seal using oil seal installer, Part No.
ST 972.
Fill 40 to 60 percent of the space in the seal lip with
grease.
W
ARN
I
N
G
This component weighs 23 kg [50 lb] or more. To
avoid personal injury, use a hoist or get
assistance to lift this component.
CAU
TIO
N
Do not apply excessive force to the seal lip
surface when aligning and installing the flywheel.
Damage to the engine will occur if the seal is
damaged.
NOTE: Apply gasket sealant to the flywheel housing
mounting surface.
Align the flywheel housing with the dowel pins.
Install the flywheel housing and capscrews. Tighten
the capscrews.
Torque Value: 69 N•m [50 ft-lb]
Measure the distance in height between the
lubricating oil pan mounting surface and the flywheel
housing flange.
Maximum Height Difference: 0.15 mm [0.0059 in]
00900189
00900188
00900235
