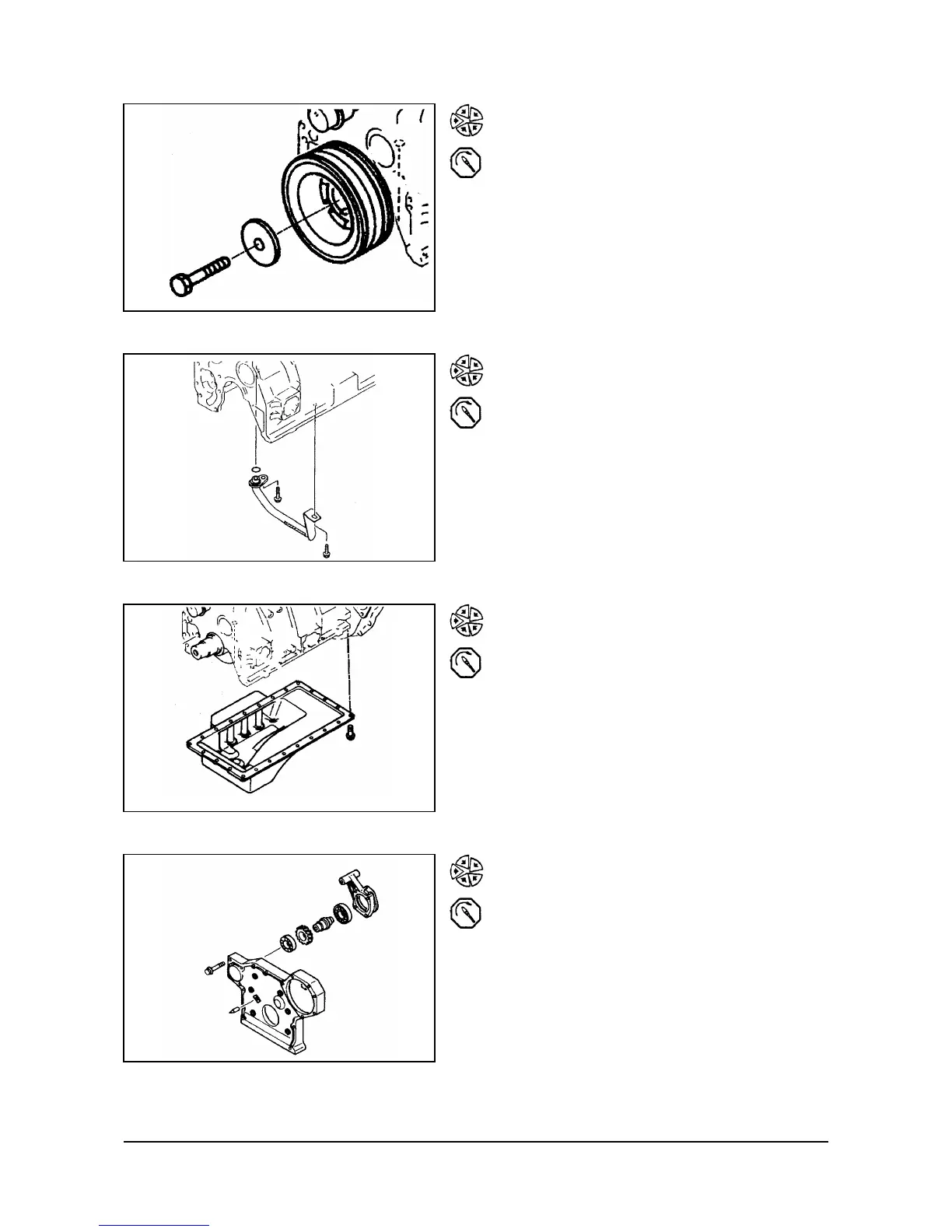

Crankshaft Pulley
Align the crankshaft pulley with the crankshaft key.
Install the crankshaft pulley, mounting plate, and
capscrew.
Tighten the capscrew.
Torque Value: 93 N•m [69 ft-lb]
Lubricating Oil Suction Tube
Install a new o-ring, oil suction tube, and two
capscrews.
Tighten the capscrews.
Torque Value: 19 N•m [14 ft-lb]
Lubricating Oil Pan
NOTE: Apply a 1-mm [0.039-in] bead of gasket
sealant, Part No. 3823494, to the mounting
surface of the lubricating oil pan.
Install a new gasket, lubricating oil pan, and 24
capscrews.
Tighten the capscrews.
Torque Value: 32 N•m [24 ft-lb]
If the oil drain plug was removed, install the drain plug.
Torque Value: 51 N•m [38 ft-lb]
PTO Shaft (if applicable)
Align the gear of the PTO shaft with the surface teeth
of the camshaft gear.
Install the o-ring, flange, and two capscrews.
Tighten the capscrews.
Torque Value: 19 N•m [14 ft-lb]
