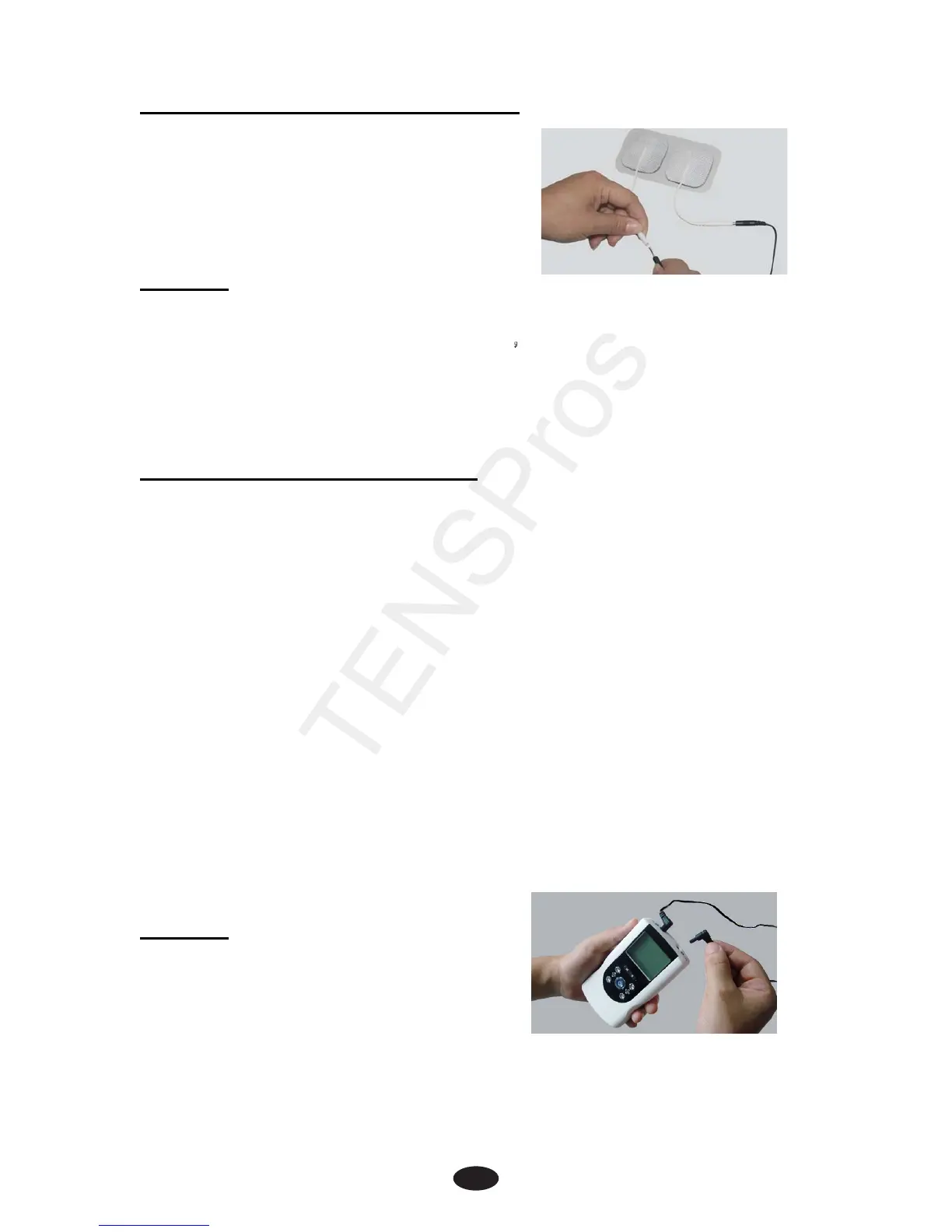

4.2 Connect electrodes to lead wires
Insert the lead wire connector into
electrode connector (standard 0.08 inch
female connection). Make sure there are
no bare metal of the pins exposed.
Caution:
Always use the electrodes with the
requirements of the IEC/EN60601-1，
ISO10993-1/-5/-10 and
IEC/ EN60601-1-2, such as with CE mark, or which are legally
marketed in the US under 510(K) listing.
4.3 Connect lead wires to device
1) Before proceeding to this step, be sure the device is completely
turned
OFF.
2) Insert the wires provided with the system into the jack sockets
located on top of the device.
3) Holding the insulated portion of the connector, push the plug
end of the wire into one of the jacks (see drawing); one or
two sets of wires may be used.
4) This device has two output receptacles controlled by Channel
1 and Channel 2 at the top of the unit. You may choose to use
one channel with one pair of lead wires or both channels with
two pairs of lead wires. Using both channels gives the user the
advantage of stimulating two different areas at the same time.
Caution:
Do not insert the plug of the patient
lead wire into any AC power supply
socket.
