AS SE MBLY

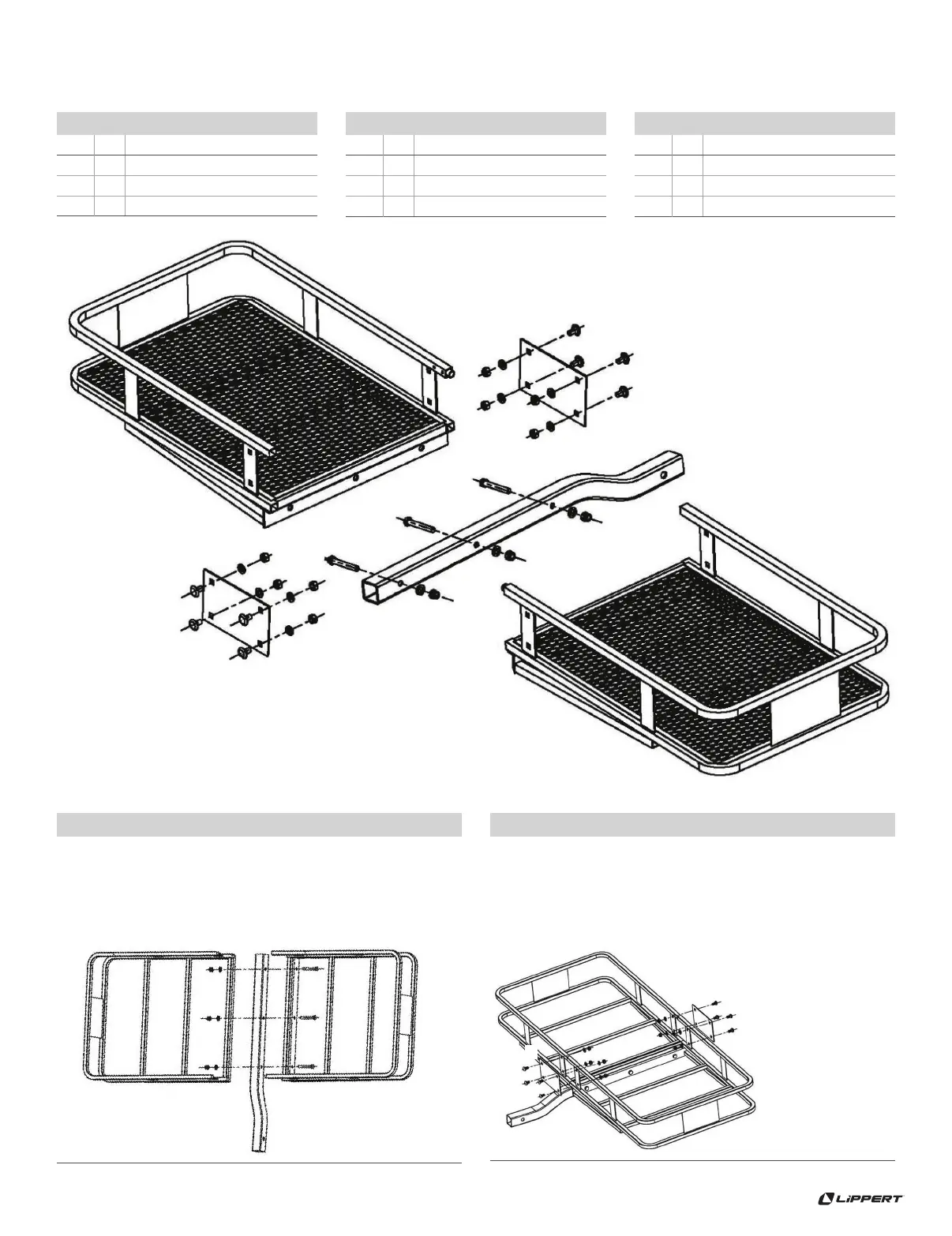

Step 1
Align the two platform halves (#1) on either side of the
2" shank (#2). Insert the three M12 hex bolts (#6) through
the platform (#1), shank (#2) and other platform half (#1).
Install M12 flat washers (#5) and M12 lock nuts (#4) on the
hex bolts (#6). Snug the hardware, but do not fully tighten.
Step 2
Place the two connecting plates (#3) onto the front and back of the
platforms (#1). Insert the M10 carriage bolts (#9) through the outside
of the platforms (#1) followed by the M10 flat washers (#8) and secure
with M10 lock nuts (#7) to the inside of the platforms (#1).
Tighten all hardware to the recommended torque specifications.
2
1
Parts List
Item Qty Description
1 2 Platform frame, half
2 1 Shank, 2"
3 2 Connecting plate
9
8
7
3
6
5
4
Parts List
Item Qty Description
4 3 Lock nut, M12
5 3 Flat washer, M12
6 3 Hex bolt, M12 x 75mm
Parts List
Item Qty Description
7 8 Lock nut, M10
8 8 Flat washer, M10
9 8 Carriage bolt, M10 x 20mm
2
6
54
1 1
9
8
7
3
