CONFIGURING PROFILE SETTINGS
To enter 'Active Profile', tap the 'Open' button shown
under the image of Echo
®
. In your 'Active Profile' screen,
you can adjust settings and use the Echo
®
Brake controller.

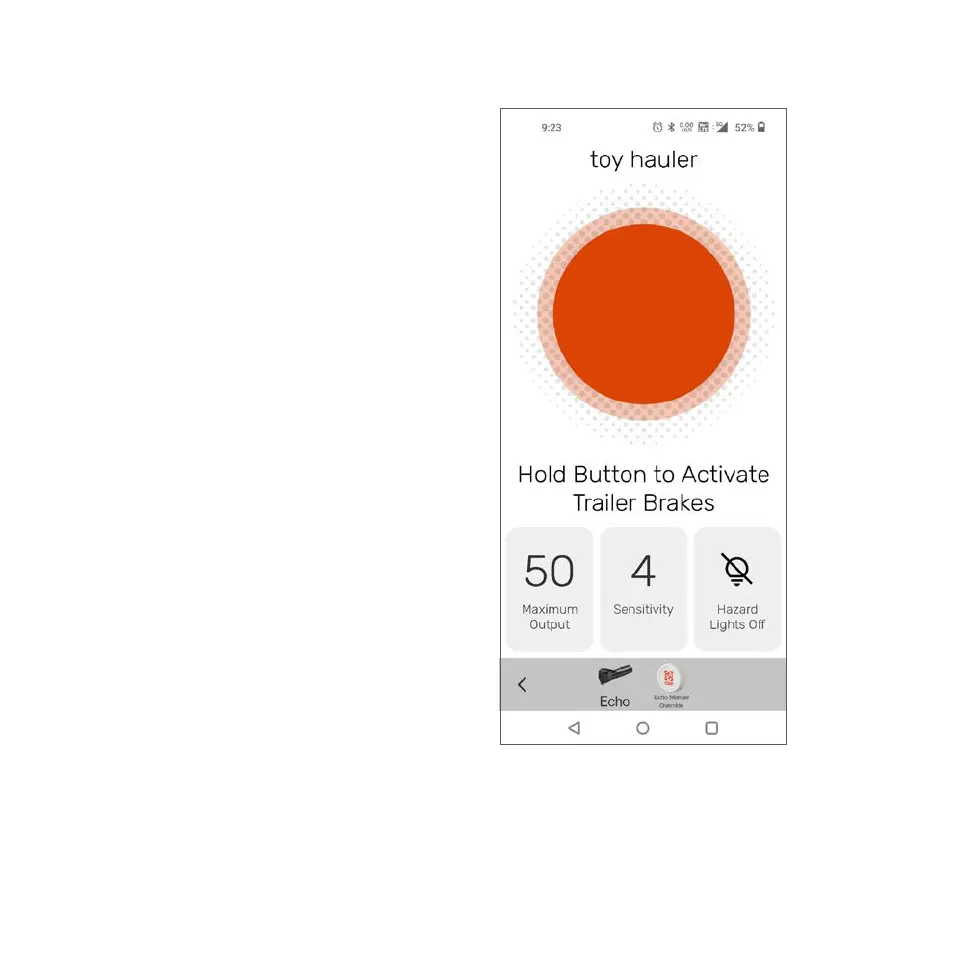

1. Manual Brake Activation
2. Brake Output Indicator
Activate manual braking, press and hold the orange button.
Manual brake controller activation is used in situations where a slow
reduction in speed is desirable. As the manual control is activated,
the Echo
®
begins to apply the trailer brakes. Manual output can be
activated by pressing and holding the orange button in the app.
The orange outer ring indicates current brake output level.
The orange outer ring is a visual indicator of the current level
of power being applied to the trailer brakes. When the vehicle's
brakes are fully applied, the level of power and position
of the ring is determined by your max output setting.
3. Max Output
4. Sensitivity Level
5. Vehicle Hazard Lights
The maximum level of the brake controller.
The output control establishes the max amount of power available
to the trailer brakes when braking. The output should be adjusted
during initial setup, when trailer load changes, when different
trailers are used or when adjustment is needed for changing
road or driving conditions. To edit, tap the maximum output
button and increase or decrease using the '+' or '–' buttons.
The sensitivity of the braking power.
The sensitivity level adjusts trailer aggressiveness when
activated during braking. Sensitivity adjustment has no
effect on the manual brake control. The sensitivity can be
adjusted for individual driver preference, trailer load changes
or changing road conditions. To edit, tap the sensitivity
button and increase or decrease using the '+' or '–' buttons.
Turn on any time the vehicle's hazard lights are active.
When the vehicle's hazard lights are activated, the
trailer brakes may pulse on and off as the lights flash.
To prevent pulsing brake output, toggle the switch
ON any time the vehicle’s hazard lights are active.
