ILLUSTRATED PARTS LIST IP32
ITEM # PART # DESCRIPTION
1 WC-62034
TANK, COMPLETE GEMSS DV W/ ULTEM
FITINGS
2 WC-5853-102 COVER, TOP HEATING TANK GEN USE
3* WC-43062 GASKET, TANK LID
4A
1
WC-5528K KIT, WATER LEVEL PROBE, SILICONE
4B
2
WC-5502-01
KIT, PROBE, ASSY WATER LEVEL W/HEX FIT-
TING, O-RING & NUT
5* WC-904-04
KIT,ELEMENT, HEATING 1.6KW120V W/ JAM
NUT & SILICONE O-RING
6* WC-1438-101 SENSOR, TEMPERATURE TANK
7* WC-4394
GUARD, SHOCK/HEATING ELEMENT FOR SIN-
GLE HEATING ELEMENT
ITEM # PART # DESCRIPTION
8* WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL
DPST 277V 40A
9* WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
10* WC-37266 KIT, FITTING TANK OVERFLOW
11* WC-37317
KIT, STRAIGHT FITTING & BUSHNG 8mm GEN
USE
12* WC-37365 KIT, FITTING TANK INLET
13* WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM

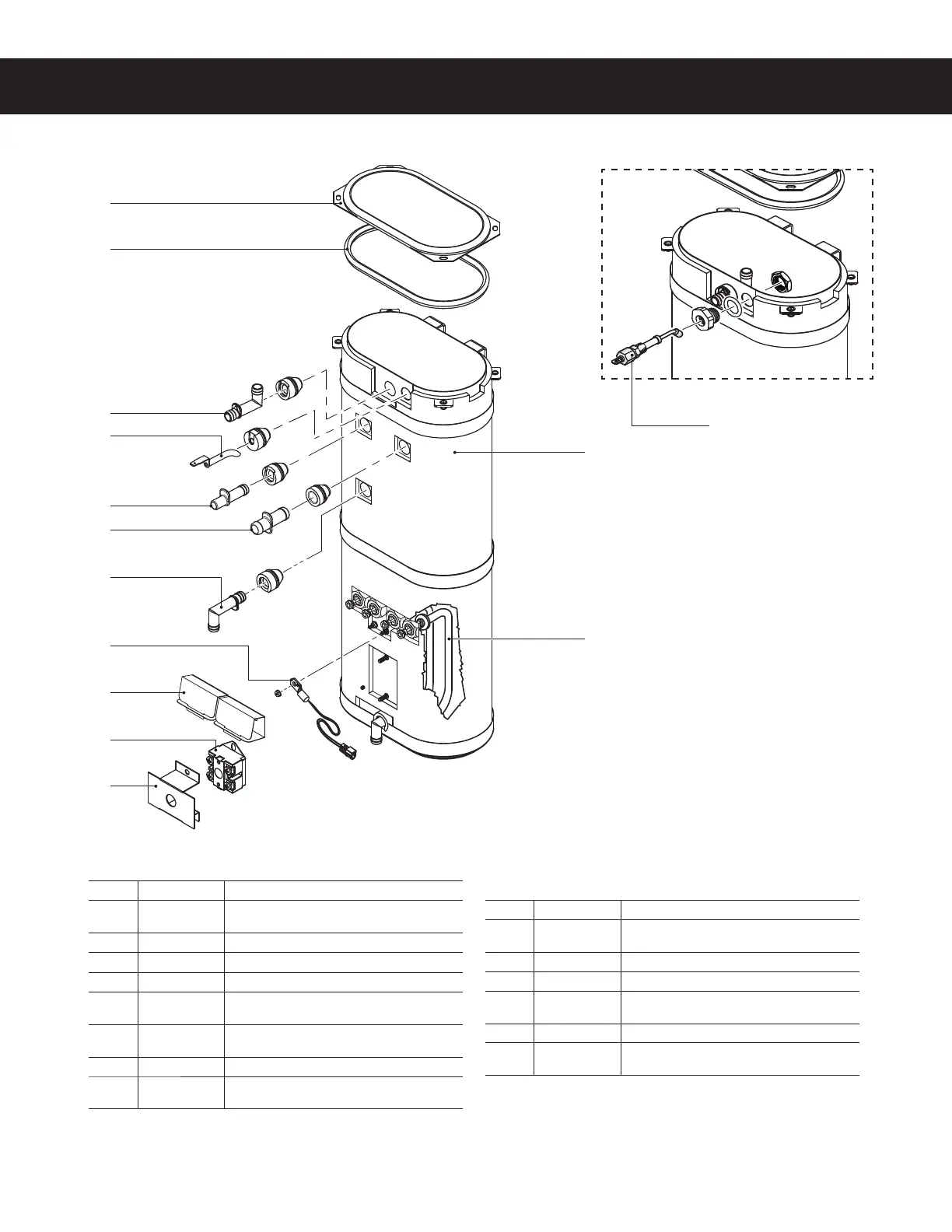

WC-62034 - Tank Assembly
2
3
10
4A
11
13
12
6
7
8
9
1
5
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354 $
WC-62034 - Tank Assembly - Parts List
1
Units built 01/04/2019 and later.
2
Units built before 01/04/2019.Replaces WC-5527.
* Recommended parts to stock.
4B
To Next Page
