Curtis G3 Gemini Series User Manual

TWIN, 3 PHASE WITH TRANSFORMER

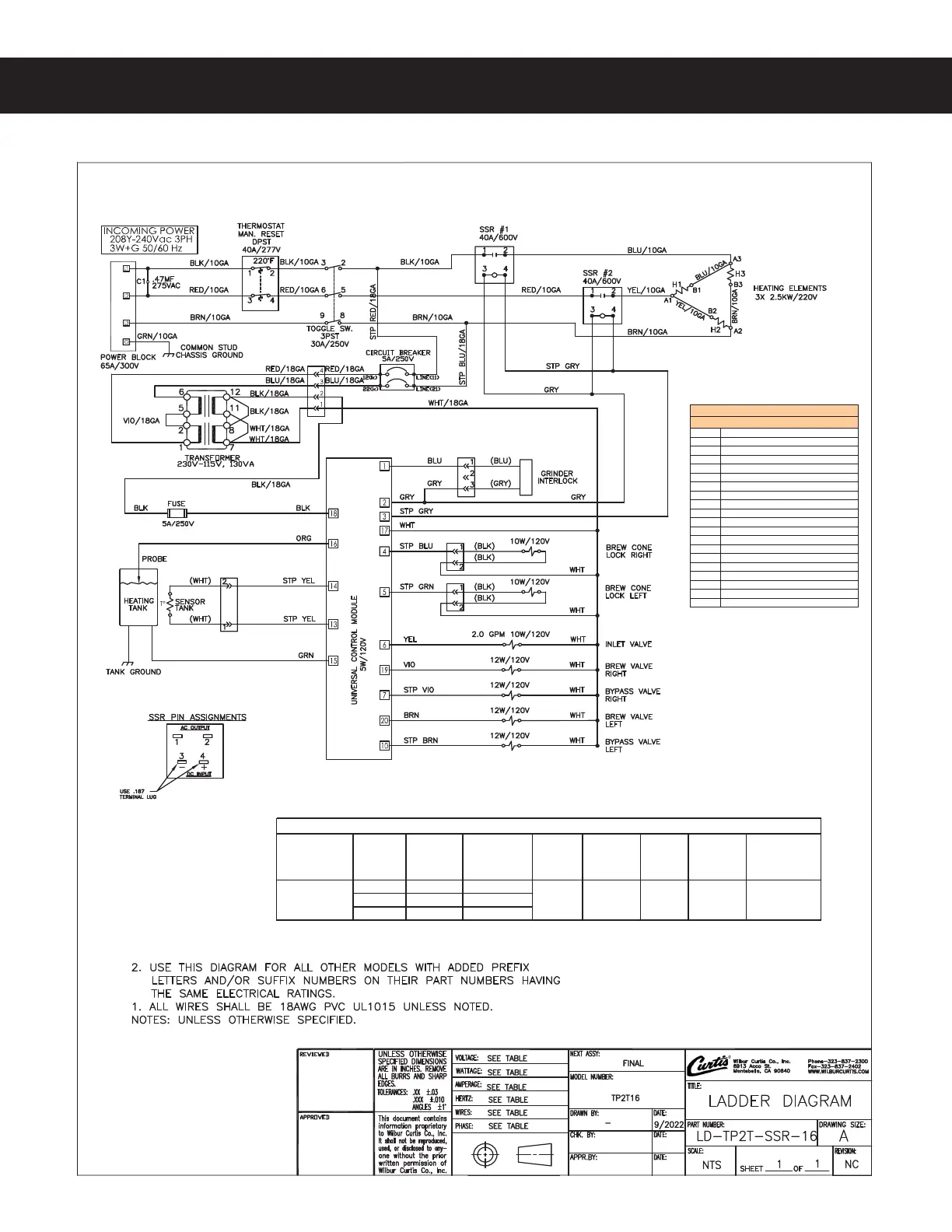

ELECTRICAL SCHEMATICS ES35
1
GRINDER INTERLOCK
2
COMMON-SOLID STATE RELAY & GRINDER
3
SOLID STATE RELAY + 5 Vdc
4
BREW CONE LOCK RIGHT
5
BREW CONE LOCK LEFT
6
INLET VALVE
7
BYPASS VALVE RIGHT
8
NOT USED
9
NOT USED
10
BYPASS VALVE LEFT
11
NOT USED
12
NOT USED
13
TANK TEMPERATURE SEN SOR
14
TANK TEMPERATURE SEN SOR
15
UCM GROUND
16
TANK WATER LEVEL PROBE
17
120V NEUTRAL
18
120V HOT
19
BREW VALVE RIGHT
20
BREW VALVE LEFT
UCM Pin Assignments
20 Pin Connector
Model
Voltage
V
Amps
A
WaƩs
W
Hertz
Hz
# of
Conductor
Wires
Phase
# of Tank
Elements
Tank Element
RaƟng
W/V
208Y 19.1 6876
220 20.0 7600
240 21.6 8980
ELECTRICAL RATING TABLE
2500W/220V33306/05x61T2PT
GTPT-16, ELECTRICAL SCHEMATIC ø 092622B
