ILLUSTRATED PARTS/RECOMMENDED PARTS IP26
8$ø5"/,"44&.#-:*--6453"5&%1"3543&$0..&/%&%1"354ø %
ITEM # PART # DESCRIPTION
1A WC-54287 TANK, ASSY TPS1T/GEMTS
1B WC-62033 TANK, COMPLETE GEMTS W/ULTEM FITTINGS
2 WC-37008 KIT, TANK LID ROUND (INCLUDES GASKET)
3* WC-37357
KIT, STRAIGHT PLASTIC FITTING AND BUSHING
12MM
4A
1
WC-5528K KIT, WATER LEVEL PROBE, SILICONE
4B
2
WC-5502-01
KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING,
O-RING & NUT
5* WC-934-04
KIT,ELEMENT HEATING 2.5KW 220V W/ JAM NUT &
SILICONE WASHERS
ITEM # PART # DESCRIPTION
6* WC-1438-101 SENSOR, TEMPERATURE TANK
7* WC-4382 GUARD, SHOCK HTNG ELMNT DOUBLE
8* WC-522
THERMOSTAT, HI LIMIT HEATER CONTROL DPST
277V 40A
9* WC-37365 KIT, FITTING TANK INLET
10* WC-43067 SILICONE TANK LID O-RING, 4-1/2” I.D. X Ø.285
11* WC-37317 KIT, STRAIGHT FITTING & BUSHNG 8MM GEN USE
12* WC-43055 GUARD, SHOCK RESET THERMOSTAT (WC-522)
WC-62033 - Tank Assembly
2
9
4A
3
11
7
6
8
12
4B
9
5
9

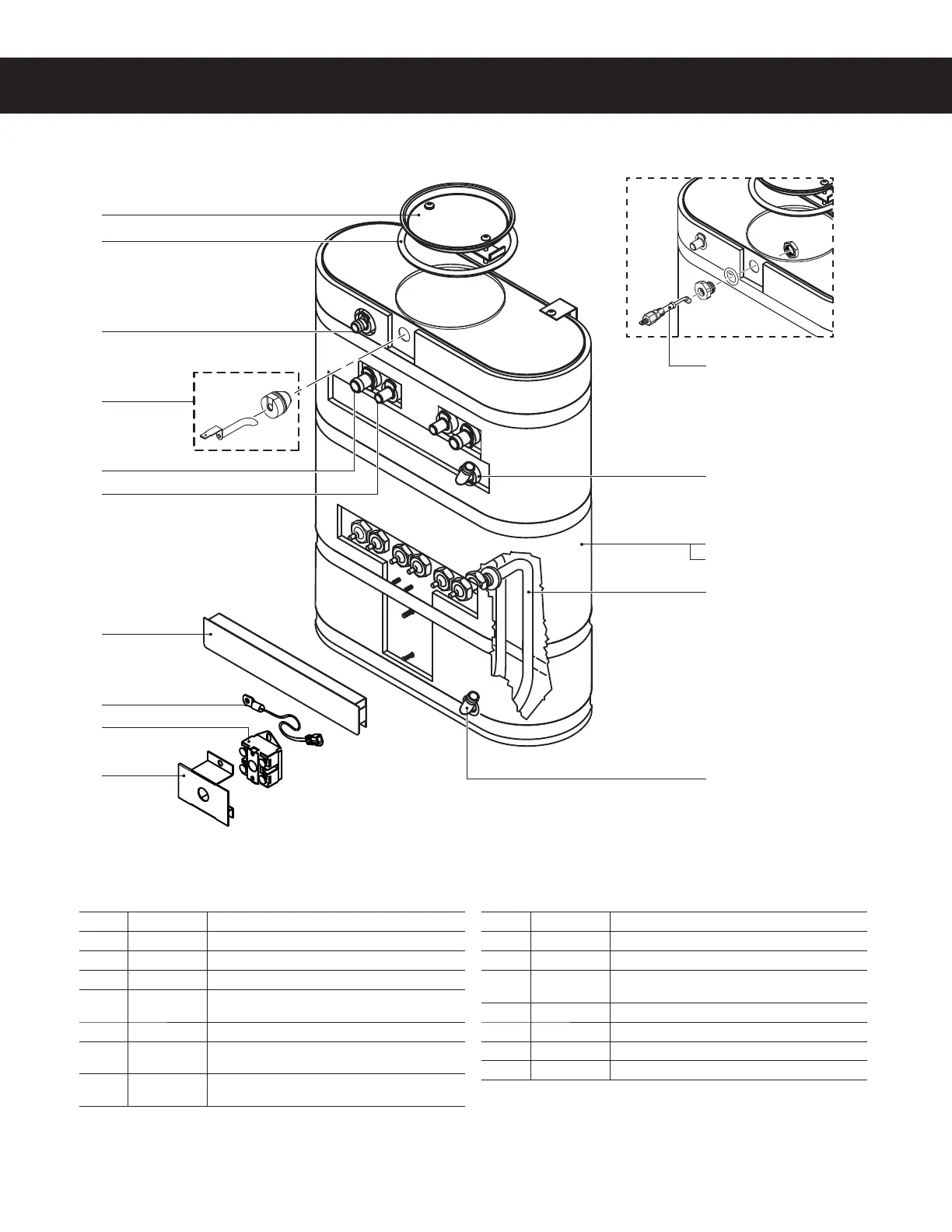

WC-62033 - Tank Assembly - Parts List
1
Units built 01/04/2019 and later.
2
Units built before 01/04/2019. Replaces WC-5527.
* Recommended parts to stock.
1A
1B
10
