15 Feed the power cable into the brewer. The brewer may
be wired for connection directly to a junction box or for
use with a power plug that connects to an electrical
outlet meeting the brewer SPECIFICATIONS.
16 Connect the wires on the power cable to the terminal
CMPDLJOTJEFUIFCSFXFSBTTQFDJmFE4FFUIF
ELECTRICAL SCHEMATIC.
17 Tighten the strain relief and replace the front cover.
continued...

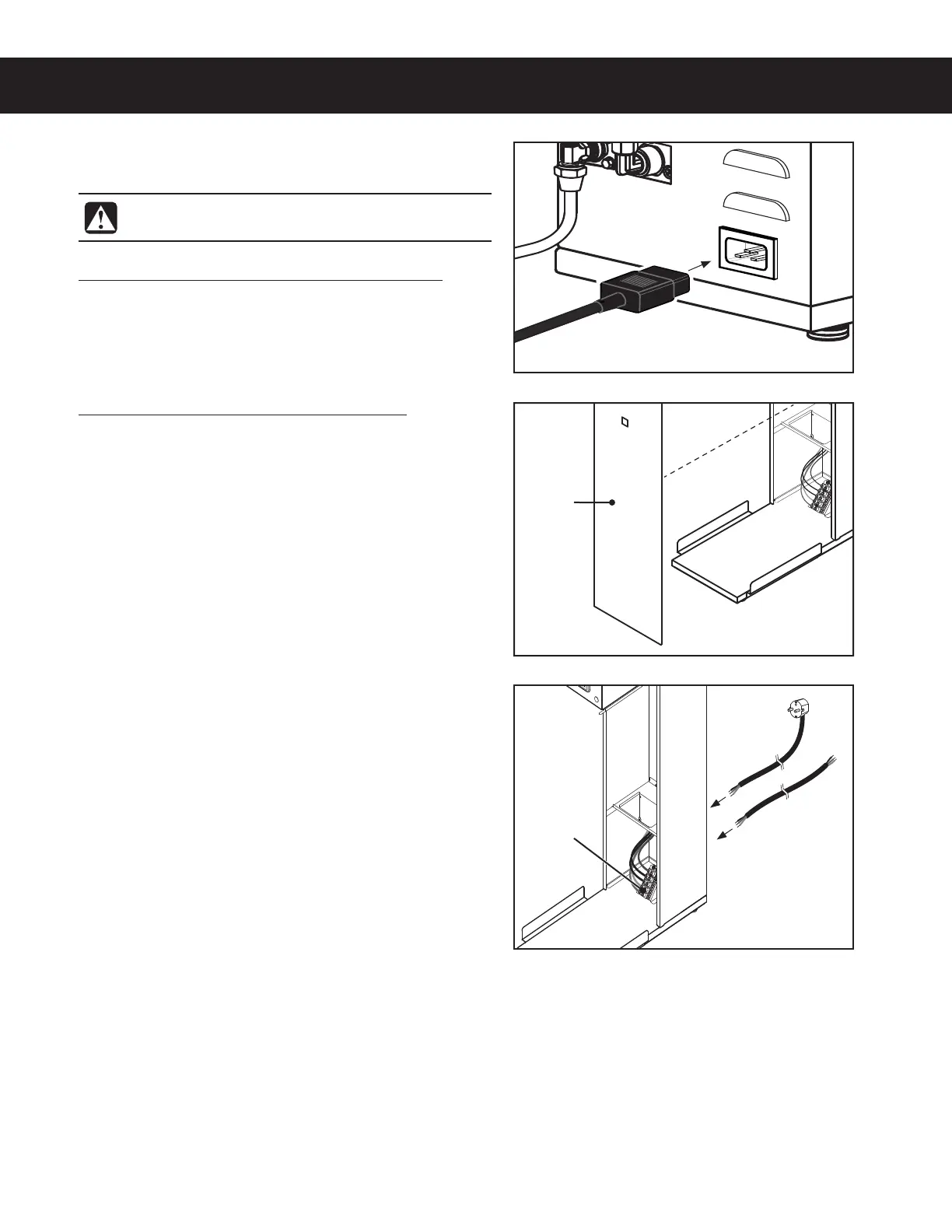

Brewers With Strain Relief Mounted to the Back
13 Remove the front cover by removing the screws that
hold it in place.
14 Loosen the strain relief on the back of the brewer.
Connecting the Brewer Wiring (Units That Come from
the Factory Without a Power Cord Attached)
Brewers With Power Connector Mounted to the Back
12 $POOFDUB$*&$QPXFSDPSEOPUTVQQMJFE
compatible with the electrical outlet installed in the
GBDJMJUZBOEUIBUNFFUTTQFDJmDBUJPOT
INSTALLATION INSTRUCTIONS II35
DECANTER/DISPENSER BREWERS, INSTALLATION INSTRUCTIONS - 200F 080519A
WARNING: Do not connect the power cord to the
power supply until instructed to do so.
