Curtis Gemini 12D Series User Manual

ELECTRICAL SCHEMATICS ES45

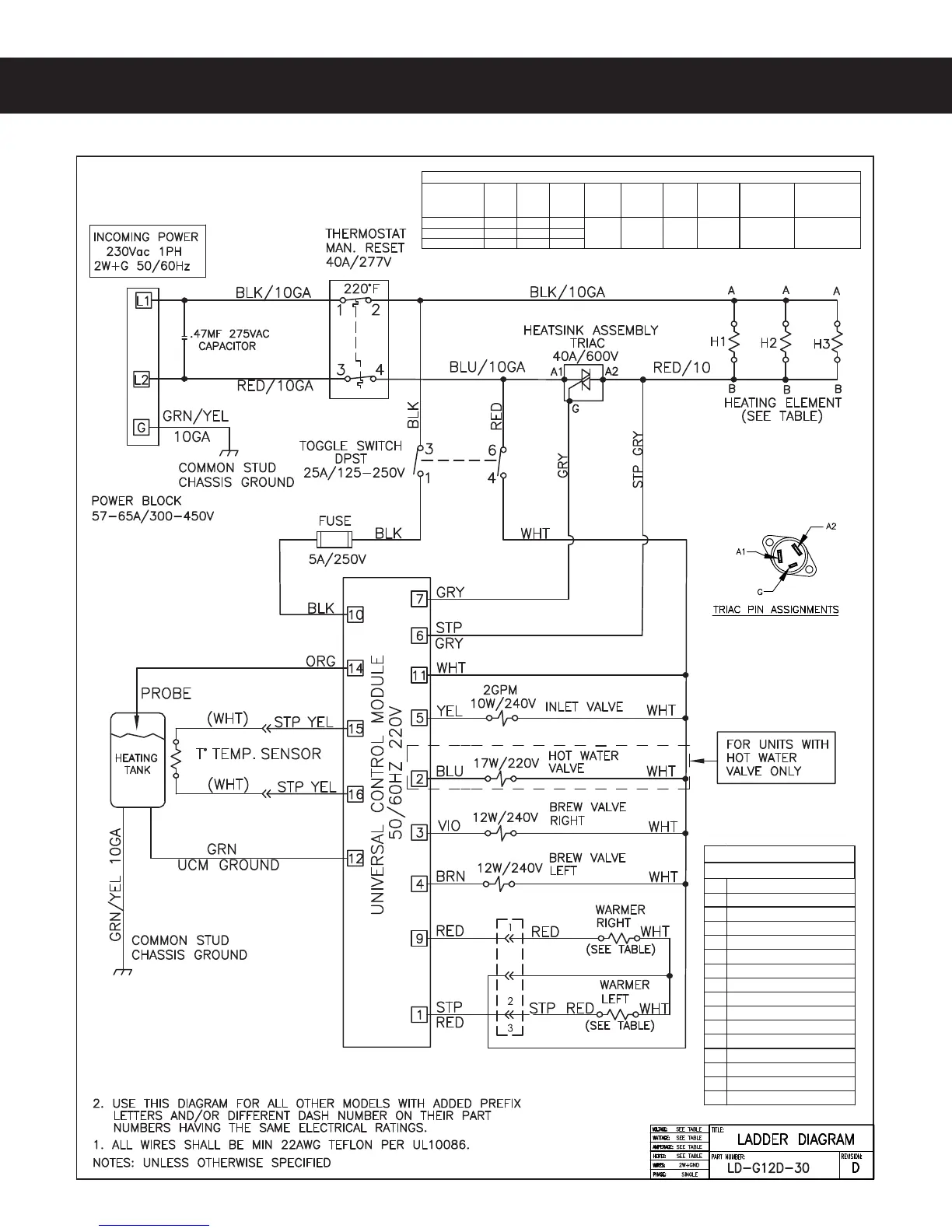

GEM-12D-30, ELECTRICAL SCHEMATIC 111116NC
1
WARMER LEFT
2
HOT WATER VALVE
3
BREW VALVE RIGHT
4
BREW VALVE LEFT
5
INLET VALVE
6
TRIAC A2
7
TRIAC GATE
8
NOT USED
9
WARMER RIGHT
10
230V L1
11
230V L2
12
UCM GROUND
13
NOT USED
14
WATER LEVEL PROBE
15
TANK TEMPERATURE SENSOR
16
TANK TEMPERATURE SENSOR
UCM Pin Assignments
16 Pin Connector
Model
Voltage
V
Amps
A
WaƩs
W
Hertz
Hz
# of
Conductor
Wires
Phase
# of Tank
Elements
Tank Element
RaƟng
W/V
Warmer Element
RaƟng
W/V
GEM-12D-30 220 29 6300
GEM-12D-30 230 29.9 6890
GEM-12D-30 230 31.2 7500
ELECTRICAL RATING TABLE
50/60 2 1 3 2000W/220V (2X) 100W/220V
GEM-12D-30
