Curtis PMC 1204X/1205X/1209/1221 Manual
11
WIRING
WIRING
CONNECTIONS: Low Current
Two 1/4" push-on terminals are provided for the throttle inputs. If your
controller has a voltage throttle input, there will be only one throttle terminal.

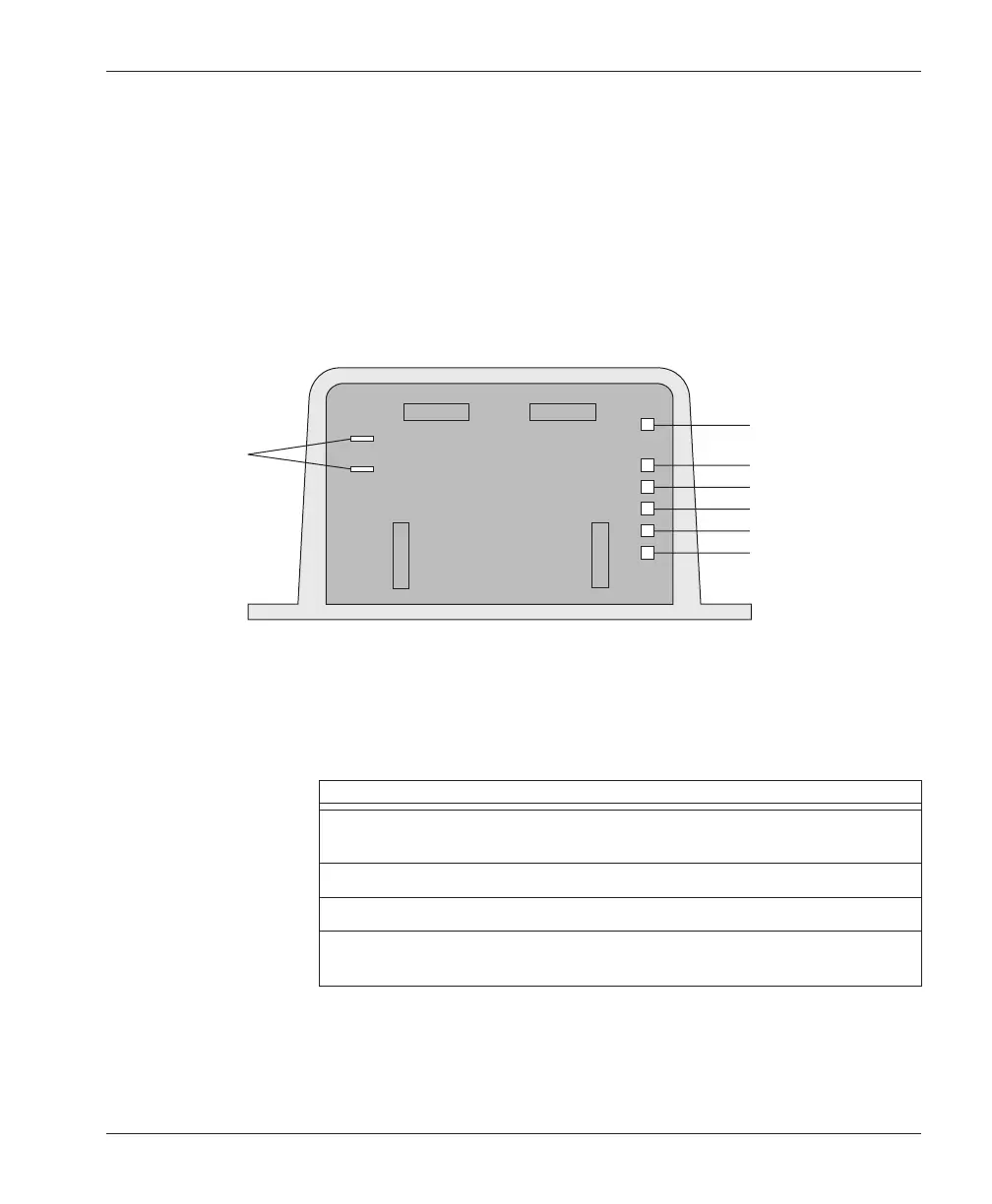

A 6-pin low power connector molded into the right side of the controller
face provides the low power logic control connections—KSI input, forward/
reverse contactor output, bypass contactor output (optional), emergency reverse
(optional), and forward and reverse inputs.
Several manufacturers make mating connectors that fit this connector. The part
numbers listed are for the recommended 0.75 mm
2
(#18 AWG) vinyl insulated
stranded wire.
MFR PART NUMBER DESCRIPTION
AMP #640426-7 locking, insulation displacement terminals,
wires at right angle to connector
Methode #3300-107-218 locking, insulation displacement terminals
Molex #09-50-3071 locking, crimp terminals
Panduit #CE156F18-7 locking, insulation displacement terminals,
wires at right angle to connector
3
Throttle inputs
3
Keyswitch input (KSI)
F/R contactor output
Bypass contactor output
Emergency reverse input
Forward input
Reverse input
1
2
