Curtis TLP Service Manual

4
ITEM Nº PART Nº DESCRIPTION
1 WC‑3621‑101 BREW CONE, NON‑METAL UNIVERSAL W/SPLASH POCKET
1A WC‑3316 BREWCONE W/BASKET, S/S STD 7 1/8
2 WC‑61336 COVER, TOP TLP BLACK TEXTURE
2A WC‑61355 COVER, TOP SS TLP
3 WC‑2962‑101K* KIT, FITTING SPRAYHEAD KYNAR
4 WC‑39662 * LABEL, CONTROL PANEL TLP
5 WC‑ 717 * CONTROL BOARD, SMART CARD SWITCH PANEL
6 WC‑29030* SPRAYHEAD ASSY, ADVANCED FLOW ORANGE
7 WC‑3503* LEG, SCREW BUMPER 3/8” ‑ 16 STUD
8 WC‑3765L* KIT, INLET VALVE REPAIR (FOR WC‑826L, WC‑847)
9 WC‑ 715 * CONTROL MODULE, TLP 120V 16PIN
10 WC‑ 102 * SWITCH, TOGGLE SPST 25A 250VAC RESISTIVE
11 WC‑2401 ELBOW, 3/8 NPT X 1/4 FLARE PLATED
12 WC‑61335 COVER, SIDE TLP BLACK TEXTURE 18”
12A WC‑61335‑101 COVER, SIDE LEFT TLP 18”
12B WC‑61354 COVER, SIDE SS TLP 18”
13 WC‑1040 * PUMP, WATER CENTRIFUGAL 120V 60 Hz
14 WC‑1809 FAUCET, PS/HPS SERIES HOT WATER 1/2‑20 UNF AP/ALP
15 WC‑ 826L* VALVE INLET 1GPM 120V 10W
16 WC‑5310* TUBE, 5/16 ID x 1/8W SILICONE
17 WC‑8591* CAPACITOR, X2
18 WC‑54314 TANK, ASSY 120V TLP12/20 1450W
18A WC‑54314‑101 TANK, ASSY 120V TLP12/20 1450W FOR TLP 300 LEFT
19 WC‑43062* GASKET, TANK
20 WC‑5853‑102 COVER, TOP HEATING TANK GEN USE
21 WC‑5502‑01* KIT, PROBE, ASSY WATER LEVEL W/HEX FITTING, O‑RING & NUT
22 WC‑ 917‑04* ELEMENT, HEATING 1.45KW 120V W/JAM NUTS & SILICONE WASHERS
23 WC‑ 523 * THERMOSTAT, MANUAL RESET 120/220 VAC 25A 220 DEG F MAX
24 WC‑5231 * COMPOUND, SILICONE 5 OZ
25 WC‑1438‑101* SENSOR, HEATING TANK
26 WC‑66050 DRIP TRAY, TLP
27 WC‑1806 * SEAT CUP, SILICONE
28 WC‑4320 O‑RING, 1/2” I.D.

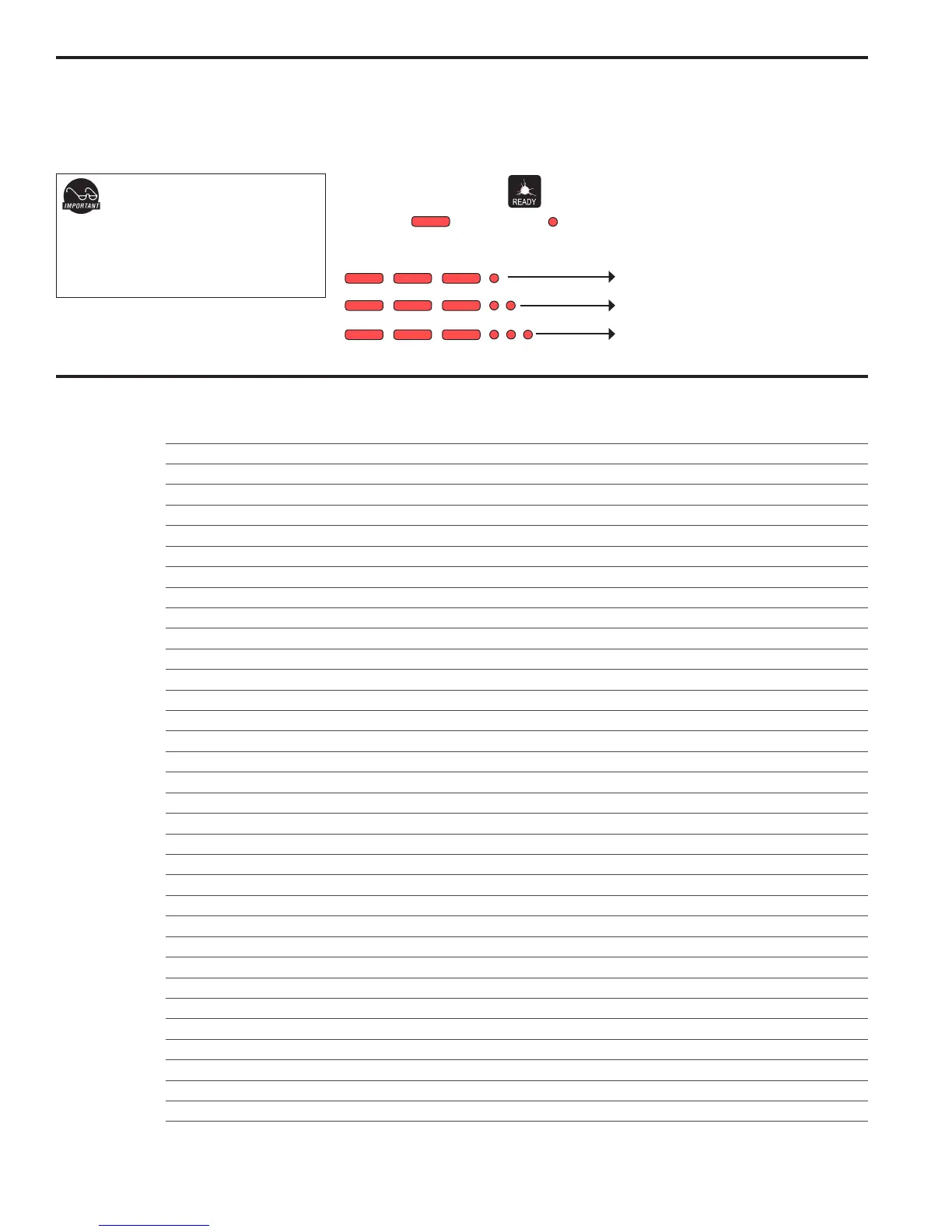

ERROR CODES
Error Codes are indicated by blinking.
= Long Flash = Short Flash
The code pattern is as follows:
WATER LEVEL PROBLEM
TEMPERATURE PROBLEM
COMMUNICATION ERROR
ADS technology features a state‑of‑the‑art error code system. This is designed to quickly advise you of any problems the system may experi-
ence expediting service or repair. Occasionally, an error reported may be a problem with the water supply or electrical power; NOT directly
associated with a fault of the Curtis system itself. An example of this includes a clogged water lter — indicated by a water level error code.
Error Codes are reset by turning the
rear toggle switch to Standby for a
minimum of 10 seconds, then return-
ing the switch to ON. Any service required for
your Curtis system must be performed by a
qualied service technician.
PARTS
LIST
* SUGGESTED PARTS LIST
