The charging (DC) cord is equipped with a polarized connector that fits into a matching
receptacle on the vehicle. The receptacle is located on the driver side of the vehicle
just below the seat bottom.

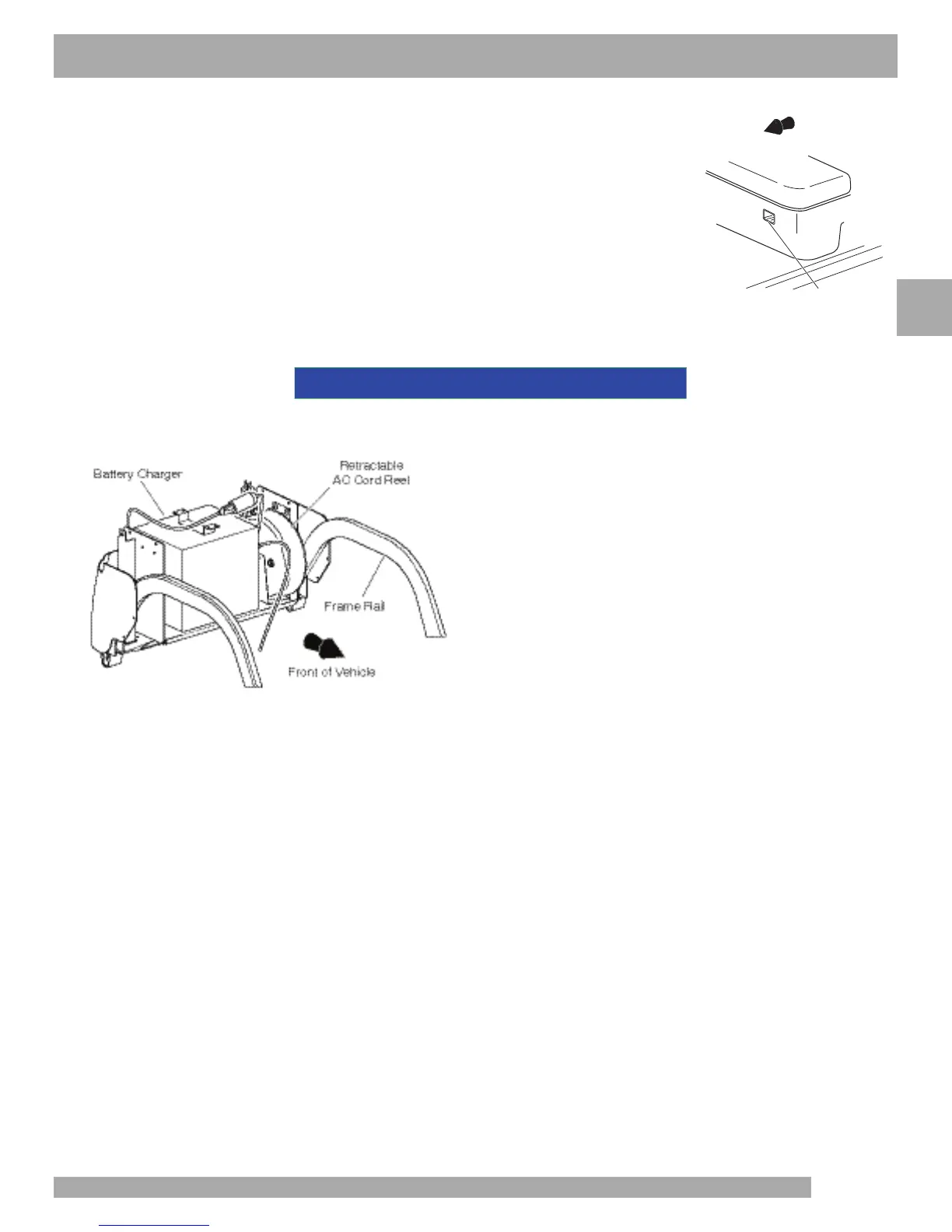

On-board Charger
The on-board charger is located at the rear of the vehicle and is mounted between the
frame rails. An optional retractable AC cord reel is also available. The charger is wired
directly to the batteries, only requiring it be plugged into a dedicated 15 amp AC outlet to
be operational.
When charging cycle is complete, replace cord around charger handle in area provided
or in the retractable cord reel (if equipped).
If vehicle is to be charged with a non E-Z-GO charger, refer to the instructions supplied with the charger.
Maintenance Instructions
1. For flooded lead-acid batteries, regularly check the water levels of each battery cell after charging and add distilled
water as required to the level specified by the battery manufacturer. Follow the safety instructions recommended by
the battery manufacturer.
2. Make sure the charger connections to the battery terminals are tight and clean. Check for any deformations or
cracks in the plastic parts. Check the charger harness for chaffing and rubbing. Inspect all wiring for fraying, loose
terminals, chaffing, corrosion or deterioration of the insulation.
3. Keep the cooling fins free of dirt and debris, do not expose the charger to oil, dirt, mud or to direct heavy water spray
when cleaning equipment.
4. Inspect the plug of the battery charger and the vehicle receptacle housing for dirt or debris. Clean the DC connector
monthly or more often if needed.
