Custom Built eBikes VLCD-5 - Installation; VLCD Pinout

Installation

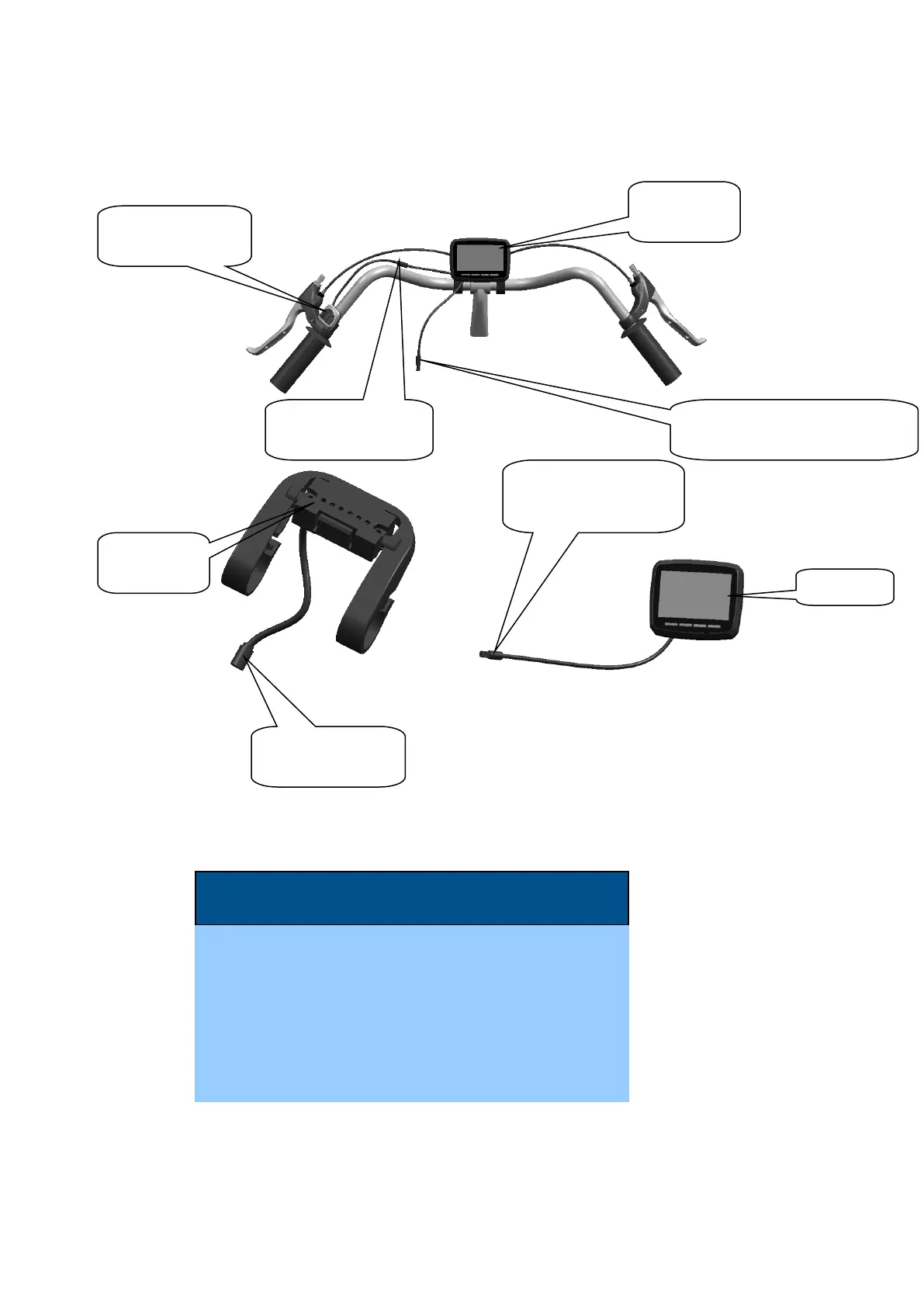

Mount the set on the handlebar, connect the output line (4-core push-male) to the 4-pin plug-female.
1 Orange ( RX )
2 Brown ( TX )
3 White (Weak current )
4 Green ( Power )
5 Black ( Earth)
6 Purple ( Brake)
VLCD pinout
VLCD-5
Button control
(5-core push-male)
Mounting
base
Connect to the
motor
Connect to controller
VLCD-5
6-pinplug-female connector – links
unit to motor
