MAINTENANCE (cont.)
WARNING! MAKE CERTAIN THAT THE MACHINE IS DISCONNECTED FROM THE
POWER SOURCE BEFORE PERFORMING ANY MAINTENANCE PROCEDURES
CUTTER TIP REPLACEMENT – USE PAGE 24 FIG A FOR REFERENCE IF NECESSARY
WARNING: To prevent serious personal injury NEVER rotate the cutterhead by hand.
Cutter tips are razor sharp! Always wear heavy leather gloves when handling the
cuttherhead. Avoid touching the cutter insert by hand without protection.
The 8" cutterhead is equipped with 16 indexable cutter inserts. Each cutter insert can be rotated
to reveal any one of its two cutting edges. Therefore, if one cutting edge becomes dull or
damaged, simply rotate it 90° to reveal a fresh cutting edge.

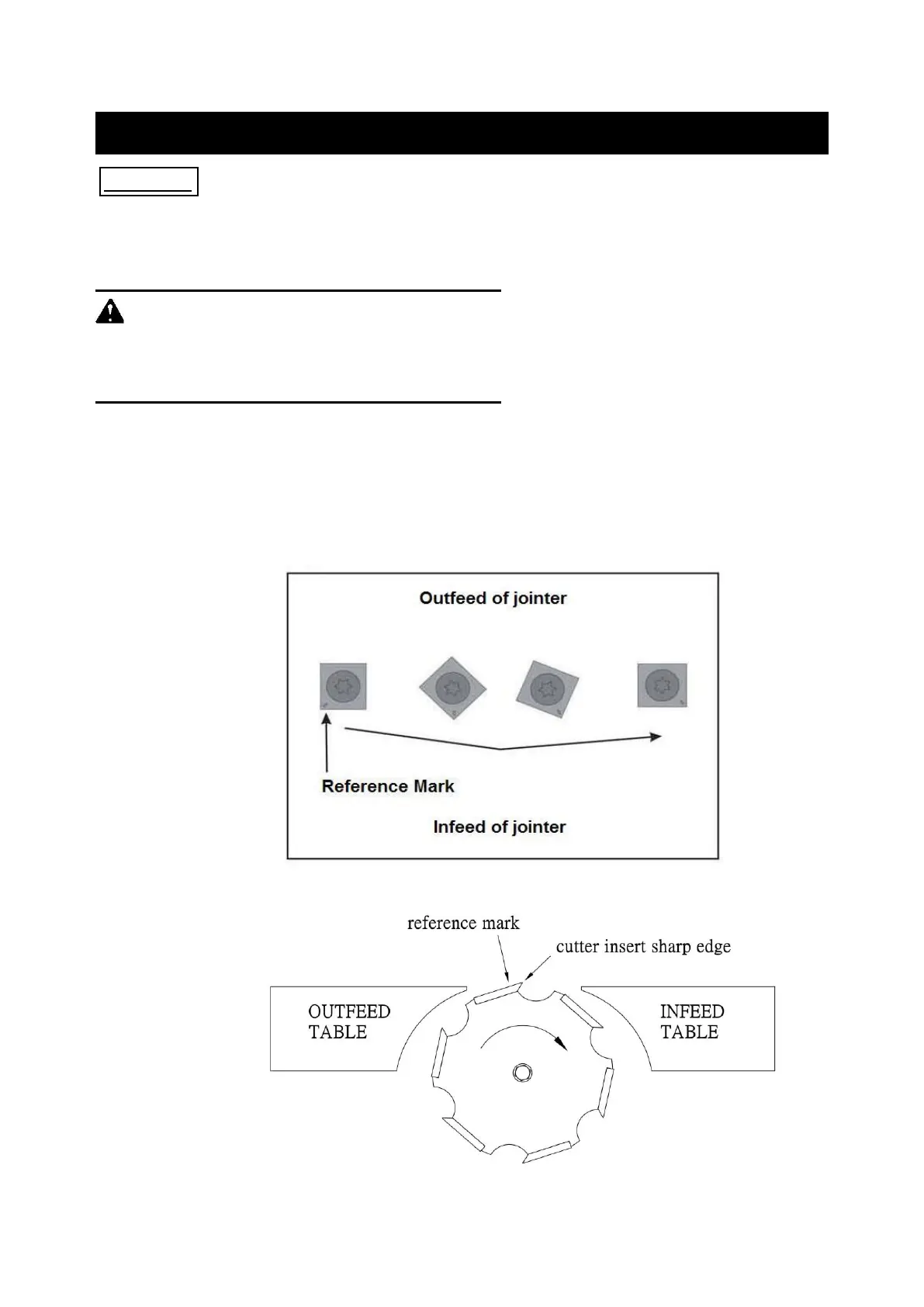

In addition, each cutter insert has a reference mark on one corner. As the cutter insert is rotated,
the reference mark location can be used as an indicator of which edges are used and which are
new. See FIG B & C
FIG B
FIG C
