Cyber Power CPS5000ECH48A - Battery Connection

6

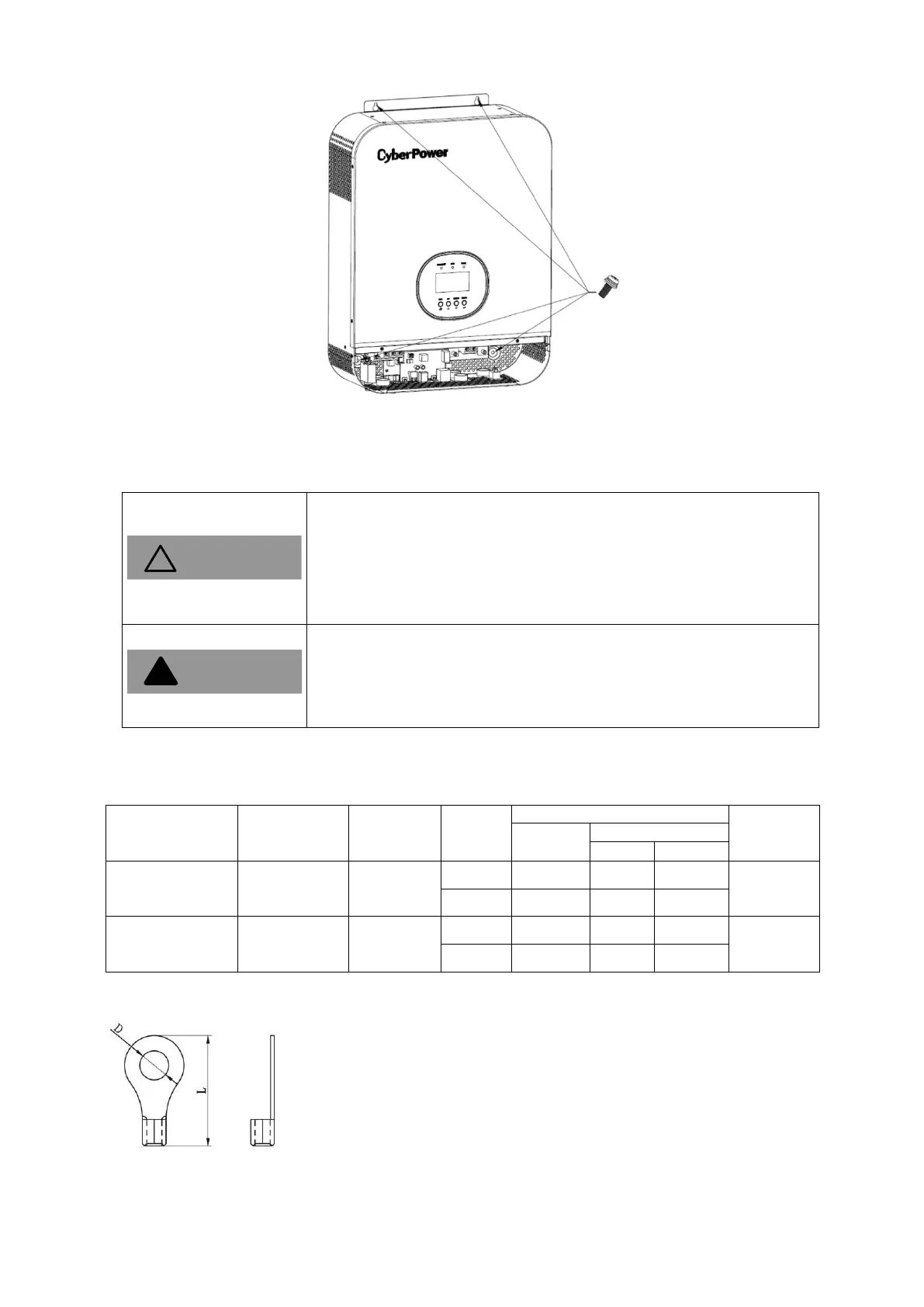

Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.
3.4 Battery Connection
Recommended battery cable and terminal size:
Model
Maximum
Current
Battery
Capacity
Cable
Size
Ring Terminal
Torque
Value
Cable
mm
2
Dimensions
D (mm)
L (mm)
CPS3000ECH48A
82A
200AH
1*4AWG
22
6.4
33.2
2~ 3 Nm
2*8AWG
14
6.4
29.2
CPS5000ECH48A
CPS5000ECH48A-P
137A
200AH
1*2AWG
38
6.4
39.2
2~ 3 Nm
2*6AWG
28
6.4
33.2
Ring terminal:
 For safety operation and regulation compliance, it’s requested to install
a separate DC over-current protector or disconnect device between
battery and inverter. It may not be requested to have a disconnect
device in some applications, however, it’s still requested to have
over-current protection installed. Please refer to typical amperage in
below table as required fuse or breaker size.
 All wiring must be performed by a qualified person.
 It's very important for system safety and efficient operation to use
appropriate cable for battery connection. To reduce risk of injury,
please use the proper recommended cable and terminal size as
below
WARNING
!
CAUTION
!
