Power On/Off Switch & Ignition

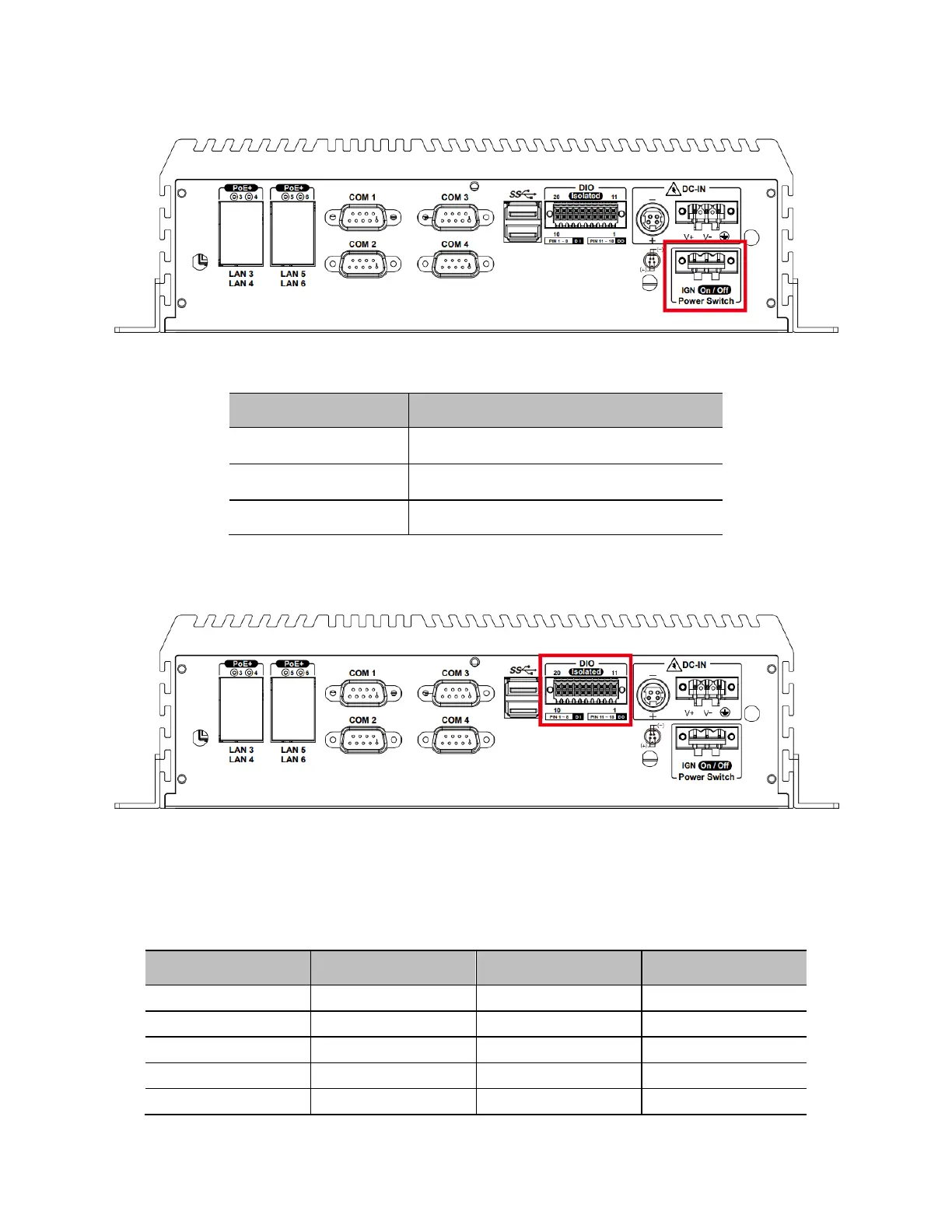

This terminal block supports a 2-pin power on/off switch or ignition switch.
Pin No.
Definition
1
Ignition
2
External Power Button V+
3
External Power Button V-
GPIO (IPC-R1s only)
The system offers sixteen programmable I/O. If the GPIO is logic high, it indicates that
the mapping SIO GPIO pin is logic high level. If the GPIO is logic low, it indicates that
the mapping SIO GPIO pin is logic low level. GPIO Connectors pin assignments are
shown below.
Pin No.
Definition
Pin No.
Definition
1
SIO_GPI70
11
SIO_GPO80
2
SIO_GPI71
12
SIO_GPO81
3
SIO_GPI72
13
SIO_GPO82
4
SIO_GPI73
14
SIO_GPO83
5
SIO_GPI74
15
SIO_GPO84
