3
Serial Cable then connect the USB to your computer.
3. With the UPS unit off and unplugged, connect your computer, monitor, and
any externally powered data storage device (Zip drive, Jazz drive, Tape drive,
etc…) into the battery power supplied outlets. DO NOT plug a laser printer,
copier, space heater, vacuum, paper shredder or other large electrical device
into the UPS. The power demands of these devices will overload and possibly
damage the unit.
4. To protect a fax, telephone, modem line or network cable, connect a
telephone cable or network cable from the wall jack outlet to the IN jack of the
UPS. Then connect a telephone cable or network cable from the OUT jack on
the UPS to the modem, computer, telephone, fax machine, or network device.
5. Plug the UPS into a 2 pole, 3 wire grounding receptacle (wall outlet). Make
sure the wall branch outlet is protected by a fuse or circuit breaker and does
not service equipment with large electrical demands (e.g. refrigerator, copier,
etc…). Avoid using extension cords. If used, the extension cord must be rated
for 15 Amps.
6. Depress the power switch to turn the unit on. The power on indicator light will
illuminate. If an overload is detected, an audible alarm will sound and the unit
will emit one long beep. To correct this, turn the UPS off and unplug at least
one piece of equipment from the battery power supplied outlets. Wait 10
seconds. Make sure the circuit breaker is depressed and then turn the UPS
on.
7. If an overload is detected, an audible alarm will sound and the unit will emit
one long beep. To correct this, turn the UPS off, unplug at least one piece of
equipment, wait 10 seconds, check to make sure that the circuit breakers are
depressed, and turn the unit on.
8. Your UPS is equipped with an auto-charge feature. When the UPS is plugged
into an AC outlet, the battery will automatically recharge.
9. To maintain optimal battery charge, leave the UPS plugged into an AC outlet
at all times.
10. To store your UPS for an extended period, cover it and store with the battery
fully charged. Recharge the battery every three months to insure battery life.

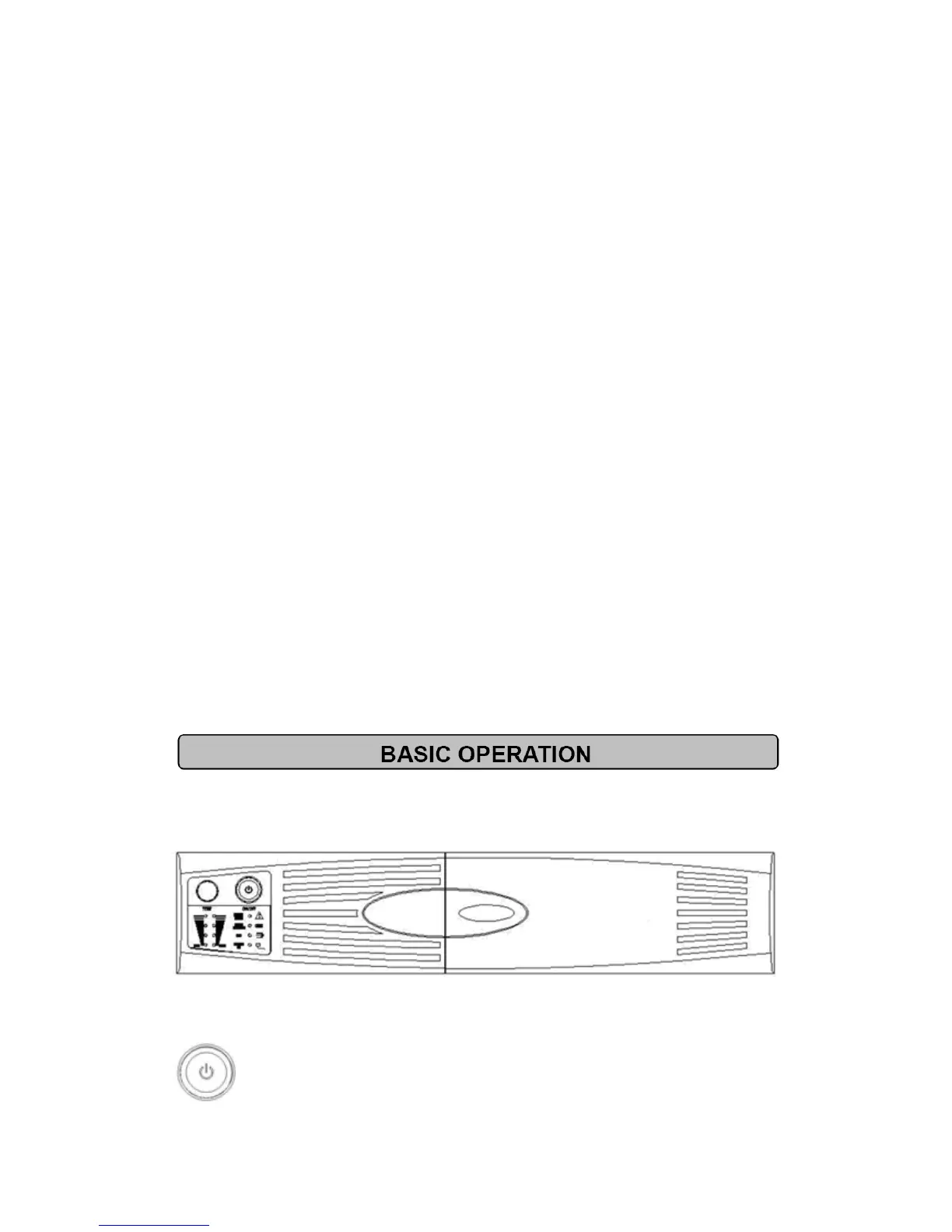

Basic operation
FRONT PANEL DESCRIPTION
Power Switch
Press the power button to turn the UPS ON or OFF
