CYBEX 500C User Manual

A
1
8
3
10
2
DETAIL A
7
12
4
9
6
5

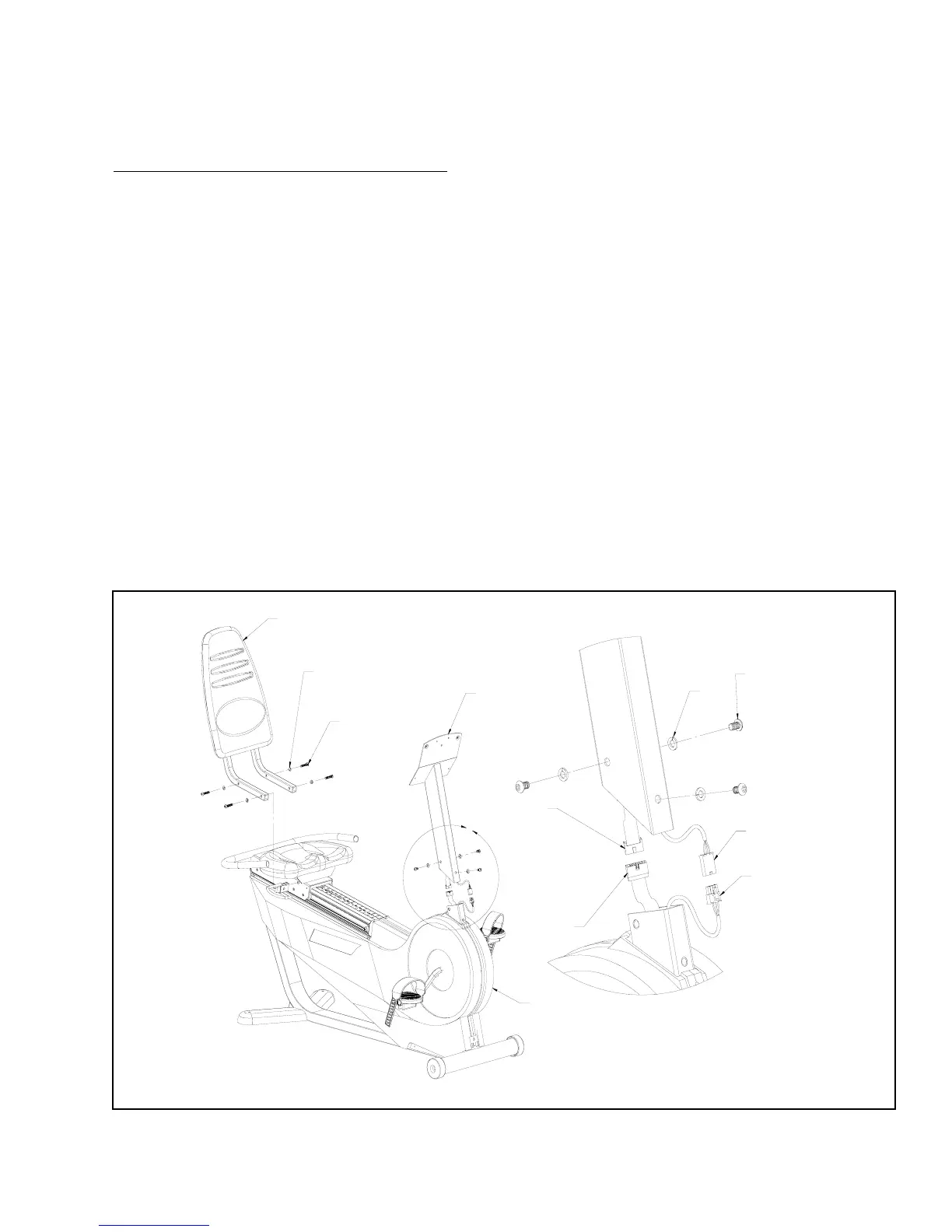

Figure 3. Attach Handlebar and Seat Back Assembly
Cybex 500C Cycle and 500R Recumbent Cycle Owner’s Manual
Page 2-2
Figure 1
Please refer to Figure 1 (shown below) for “Attach Seat Back Assembly” and “Attach the
Display Upright” sections listed on page 2-3.
Assembling the 500R Recumbent Cycle
Parts List for the 500R Recumbent Cycle
The following parts are included with the 500R Recumbent Cycle:
Part# Qty Description
LT-03086 1 Owner’s Manual
HX-00438 1 Wrench, 3/16 Hex Key
HS-13948 4 5/16-18 x 3/8” Screw
HS-41107 4 5/16-18 x 1-1/2” Screw
HS-41109 7 #10-24 x 3/4” Screw
HW-53018 6 Lock Washer
AX-61309 1 Seat Back Assembly
AX-62026 1 Display Upright
Varies 1 Configuration Kit
Varies 1 Display Console
Varies 1 Main Chassis Base
Varies 1 Configuration Kit

CYBEX 500C Specifications

General

Brand	CYBEX
Model	500C
Category	Exercise Bike
Language	English
