CYBEX 500C User Manual

Attaching the Display Upright
See Figure 4 for this step. Lay the display upright on the ground and plug the ribbon cable
from the upright to the ribbon cable in the chassis. Tuck the cables inside the chassis
upright tube to make sure they don't get pinched when you attach the upright. Slide the
upright down over the upright on the chassis. Using a 3/16" hex wrench, secure them with
three 5/16" by 1" button-head screws (HS-41126) and washers (HW-53018). Stand up the
chassis/display upright combination.
If Y
our Cycle Has a Polar Heart Rate Receiver
Remove the lower three round plugs from the display upright. Find the Polar cable in the
configuration kit (it's the short cable with small brown connectors on each end). Feed the
unlabeled end of the cable through the largest of the three holes until it emerges through the
hole in the display console mounting plate. The end with the "POLAR" label should stick out
of the lower part of the display upright.
Plug the "POLAR" end of the cable into the receiver module. Push the cable and connector
into the frame hole so the receiver module rests against the display upright. Attach the
receiver to the upright with the two provided screws.
Cybex 500C Cycle and 500R Recumbent Cycle Owner’s Manual
Page 2-6

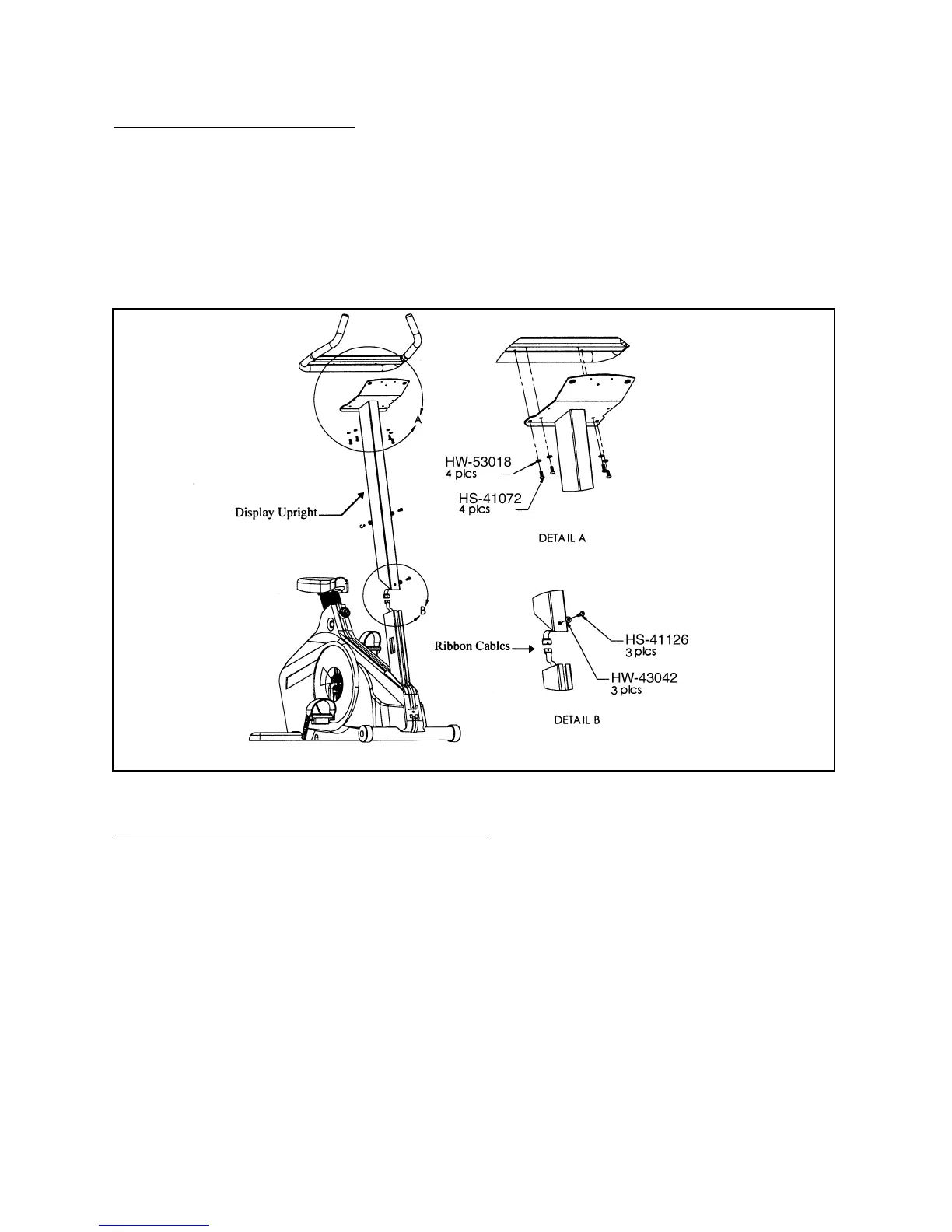

Figure 4
