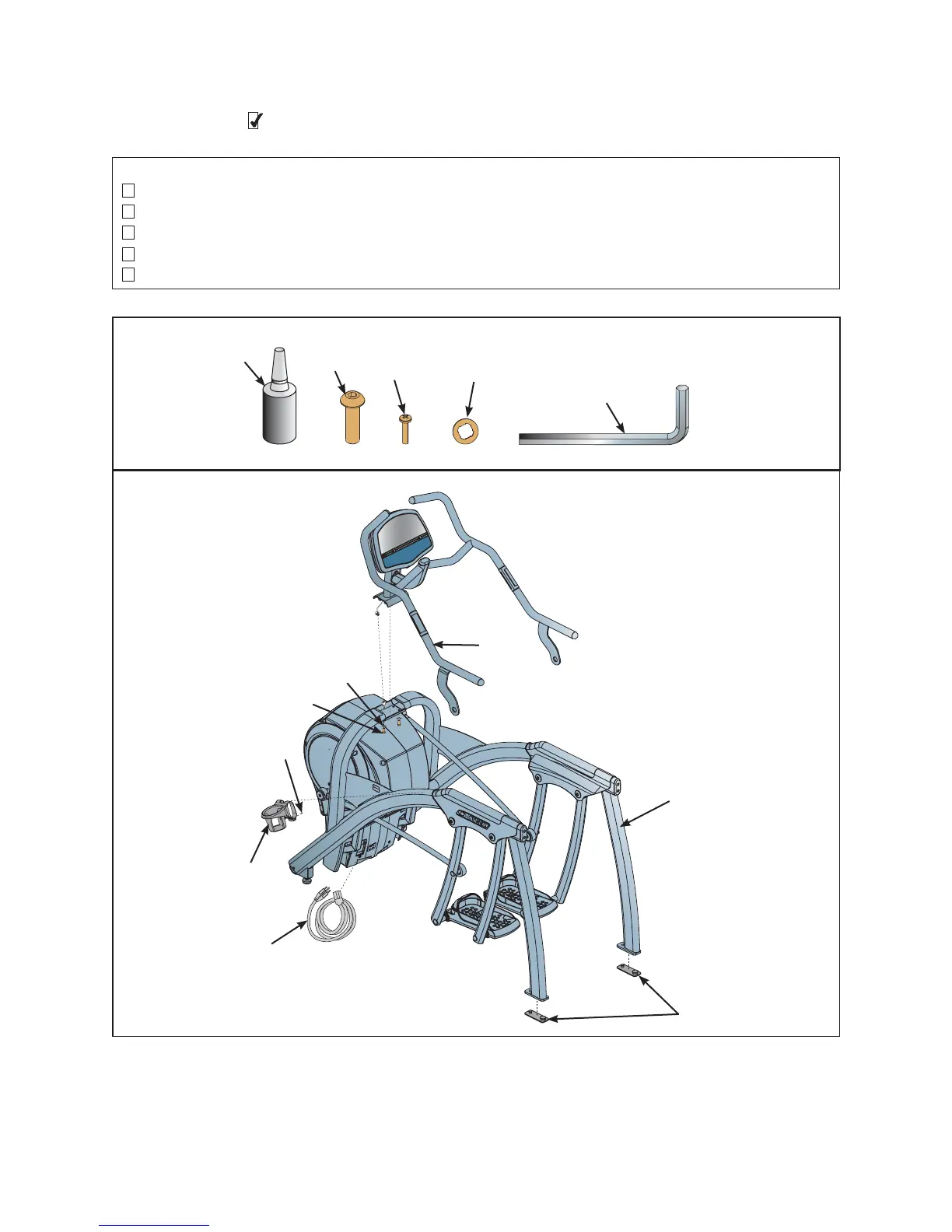

E. Check off ( ) each item in the hardware pack as you find it. See Figure 2.
#2
#13
#11
#1
#4
#5
(Optional)
#3
#12
#11
#10
#13
#14
Hardware
Cybex Arc Trainer 620A/629A Owner’s Manual
Setup
and Assembly
Page 5-4
Figure 2
#12
Item Qty Part Number Description
10 1 YA000201 Loctite
11 4 JC700422 BHSCS .375-16 x 1.50
12 2 HT552515 Pan HD Phil HD Self Tapping 8-16 x .75 Type WB Black
13 4 JS347400 Internal Tooth Lockwasher
14 2 BK030204 7/32” Allen wrench
To Next Page
