Cybex Arc Trainer 620A/629A Owner’s Manual
Setup
and Assembly
Page 5-5
! CAUTION: A minimum of two people are required to lift, move and assemble the unit. Always
use proper lifting methods when moving heavy items.
4. Lift and move the unit
A. Carefully remove lag bolts and shipping supports.
B. With one person on each side firmly grasp each rear foot.
C. Using proper lifting methods, lift the rear feet so that the front transport wheels are able to roll
on the floor.
D. Move or roll the unit to the location where you intend to leave it.
E. Carefully lower the rear feet so that the unit is in the intended location.
5. Remove the Left and Right Front Outside Pivot Shaft Retainers and Screws.
A. Locate the left front outside pivot shaft retainer and BHSCS on main frame.
B. Using a 7/32” Allen wrench (#14) remove the left screw .375-16 X 1.00 and pivot shaft
retainer from the main frame and set aside. See Figure 3.
C. Repeat steps 5A and 5B for the right front screw and pivot shaft retainer.
PIVOT SHAFT
RETAINER
BHCSC

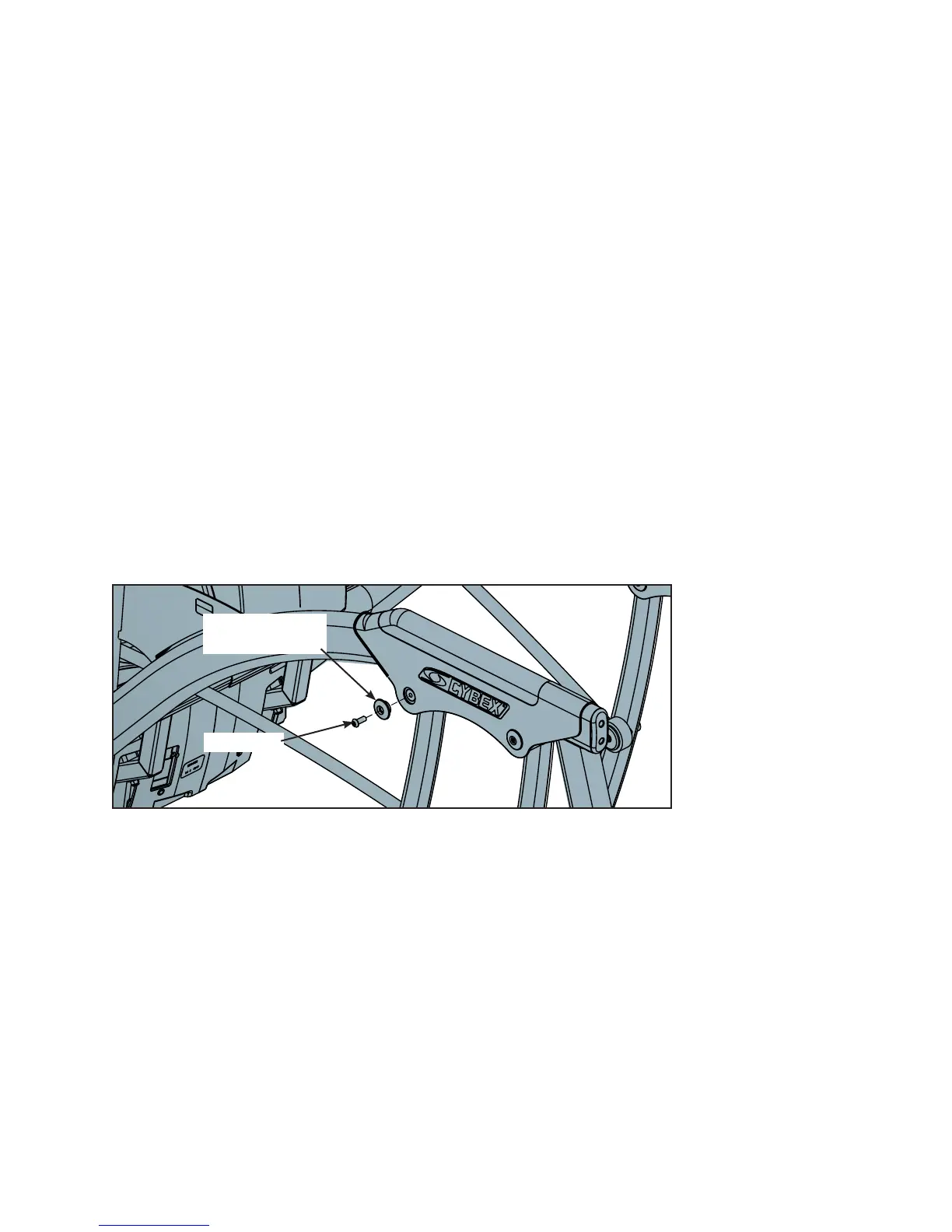

Figure 3
6. Attach the Console/Handle Assembly.
A. Locate the console/handle assembly (#2), four BHSCS .375-16 x 1.50 (#11) and four
washers (#13).
B. Locate the upper display cable and plug it into the lower display cable in the main frame
assembly. See Figure 4.
NOTE: Ensure cable connectors are securely fastened.
