CYBEX ATON Short Manual

25
m

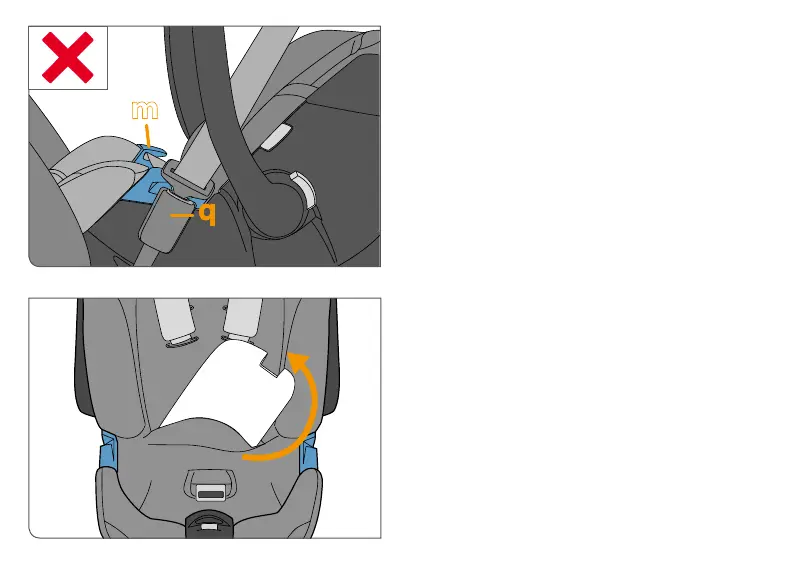

• that the car buckle q is not reaching all the way to the
blue belt slot m
• that the car belt is tight and not twisted
• that the ATON is vertically installed on the car seat (see
marking)
NOTE! The CYBEX ATON is exclusively made for forward
facing car seats, which are equipped with a 3-point belt
system according to ECE R16.
REMOVING THE INSERT
The insert, which is preinstalled when purchased, helps
to support lying comfort and t for the smallest babies.
In order to remove the insert please loosen the cover in
the baby seat, lift the insert a little bit and take it out of
the seat.
The insert may be removed after approx. 3 months to
provide more space.
The adjustable insert x (left picture top of page 33)
enhances the comfort of the child up to approx.
9 months. Later the insert can be removed to give the
child additional space.

CYBEX ATON Specifications

General

Product color	Black
Recommended age (min)	- yr(s)
