CYBEX Bravo 8800 - Page 13

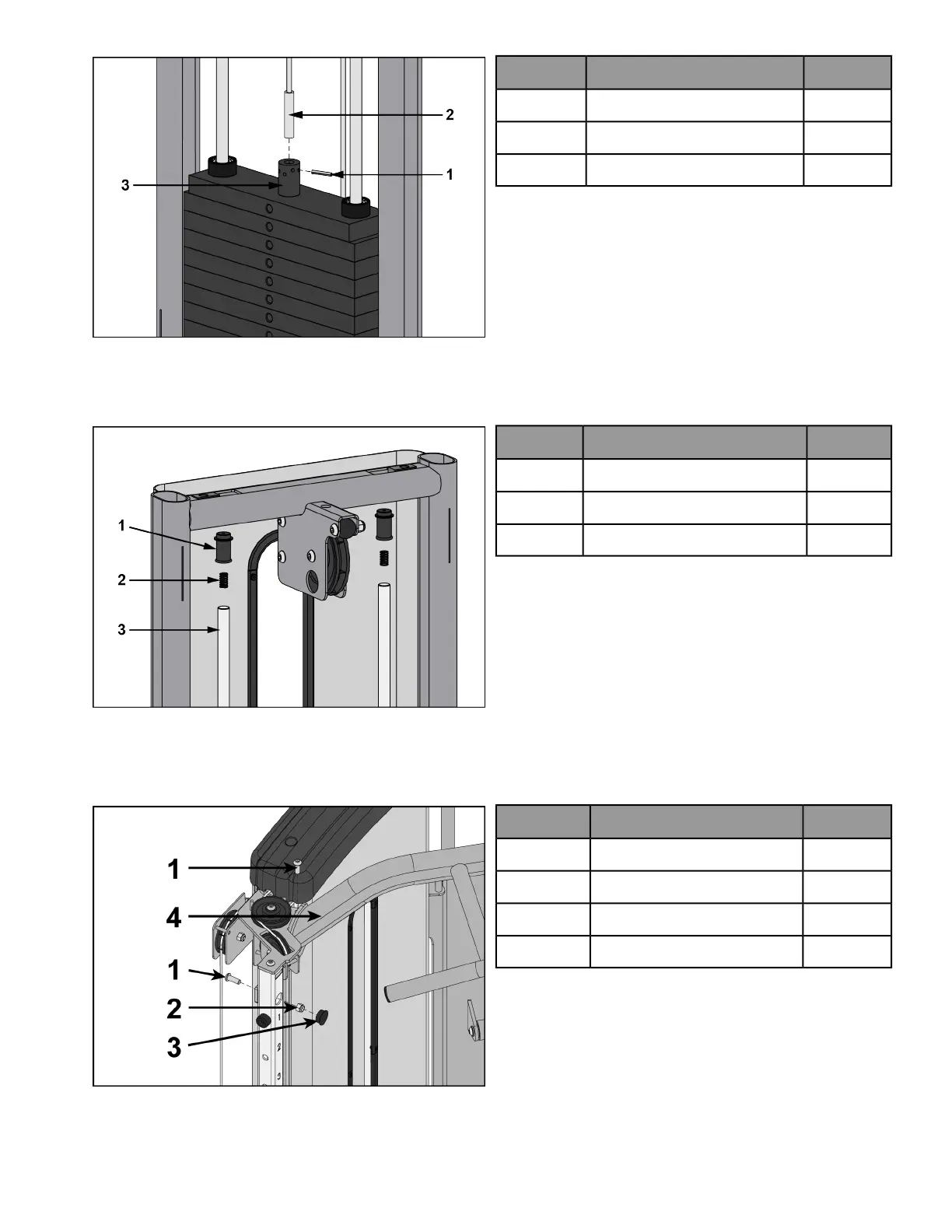

7. Remove spiral pin securing cable end to top weight using a 3/16” pin punch and hammer.
Qty.DescriptionItem
1Spiral pin1
1Cable2
1Top weight connector3
8. Remove guide rod caps. Guide rod cap contains a compression spring that will fly if grasp is not released
slowly. Slide spring loaded guide rod cap down guide rod until cap is clear of frame. Slowly release grasp of
guide rod cap and remove.
Qty.DescriptionItem
2Guide rod cap1
2Compression spring2
2Guide rod3
9. Remove lifting post.
10. Remove weight plates.
11. Remove screws securing Chin-Up Bar to frame using a 7/32" Allen wrench and a 9/16" wrench.
QtyDescriptionItem
2Screw1
1Locknut2
1Insert plug3
1Chin-Up Bar4
Page 13 of 27
