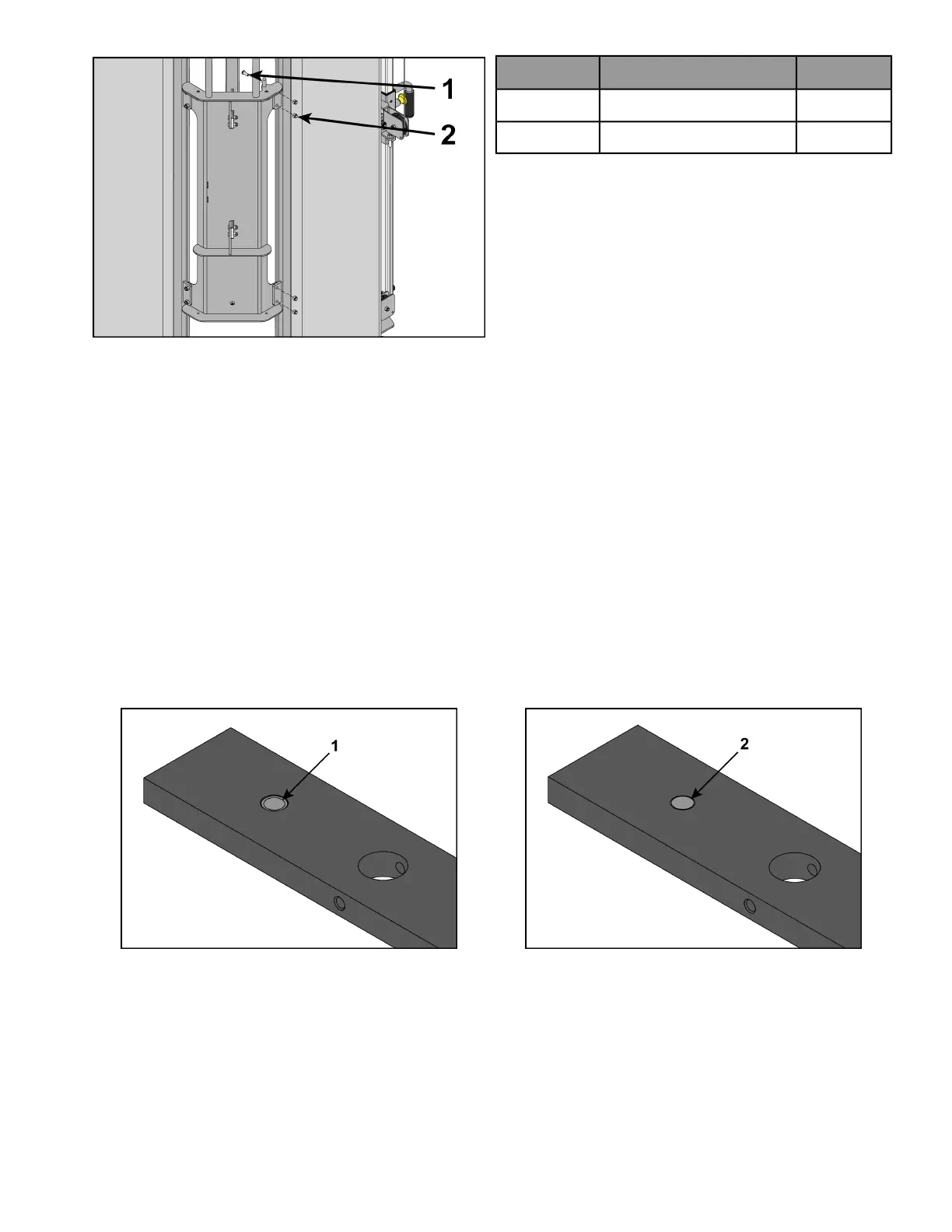

12. Remove the four BHSCS securing one of the halves.
QtyDescriptionItem
4Screw1
4Locknut2
13. Move machine to desired location.
14. Reattach the frame halves and securely tighten the four BHSCS.
15. Reattach Chin-Up Bar. Add Loctite #242 to each BHSCS and threaded holes. Tighten screws securely. Reattach
insert plugs.
Install weight plates
1. Lean guide rods slightly outward, away from machine, DO NOT put excessive pressure on guide rods, it will
damage lower guide rod caps.
2. Wipe the entire length of the guide rods with a clean cloth.
3. Lubricate the guide rods with a light coating of medium weight oil.
4. Install each weight plate, one at a time, so wide edge of bushing faces upward (1) and narrow edge of bushing
(2) faces downward.
Incorrect: Narrow bushing edge downward.Correct: Wide bushing edge upward
5. Install lifting post.
6. Install compression spring and top guide rod cap onto guide rod. Slide spring loaded top guide rod cap down
guide rod until cap is clear of guide rod plate and install. Repeat for opposite side.
Apply weight plate decal
1. Peel off half of backing from weight plate decals, making sure that the decals remain attached to the front
sheet.
